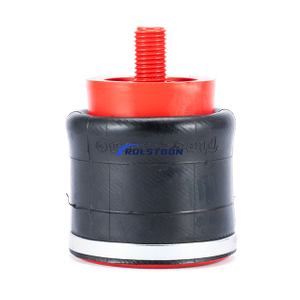

1M1A-0 | Firestone Metric Air Spring

Name: 1M1A-0 | Firestone Metric Air Spring
Brand: Firestone
SKU: 129615686
Rating: 5.0 (99 reviews)

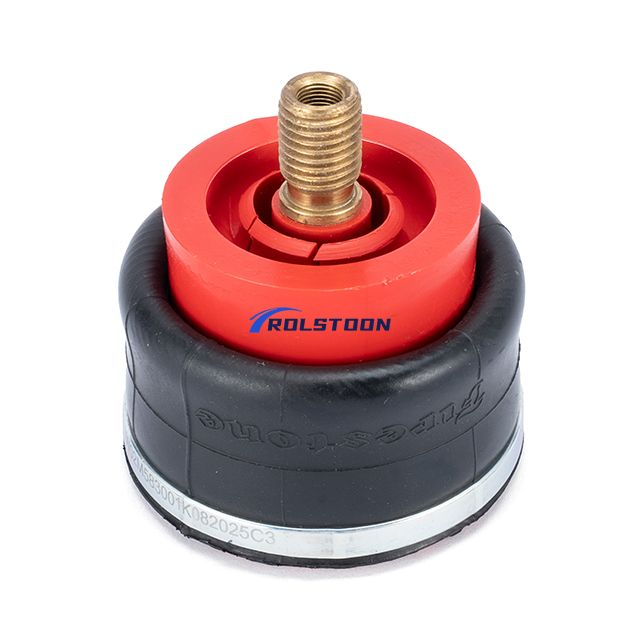

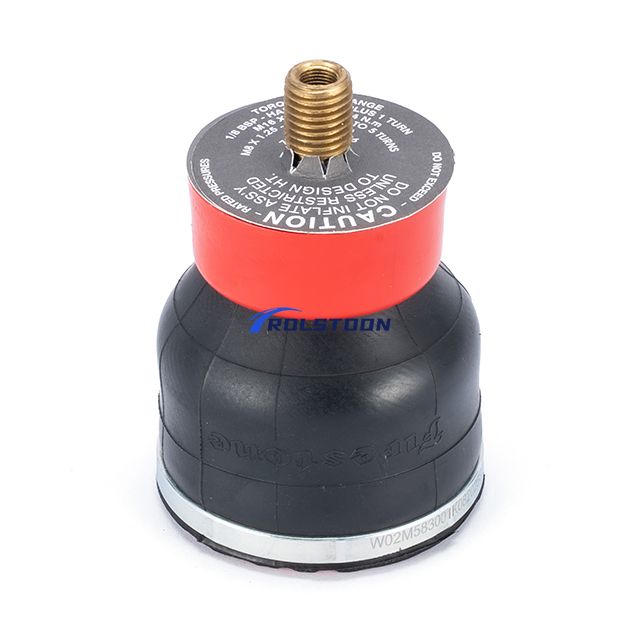

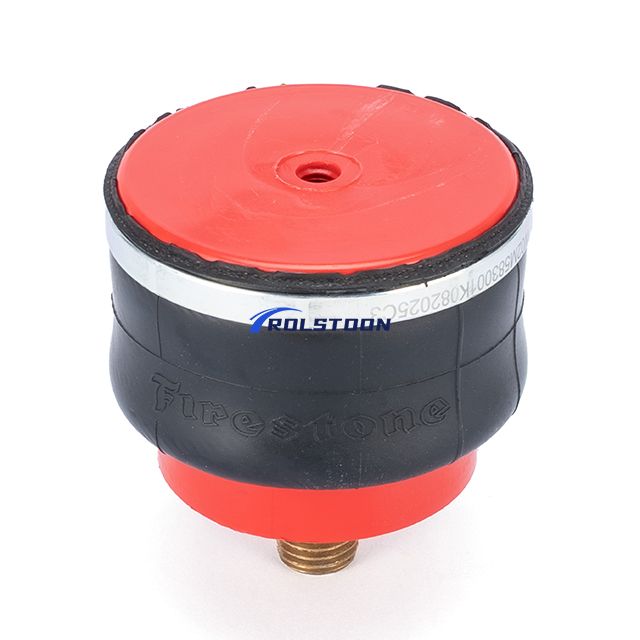

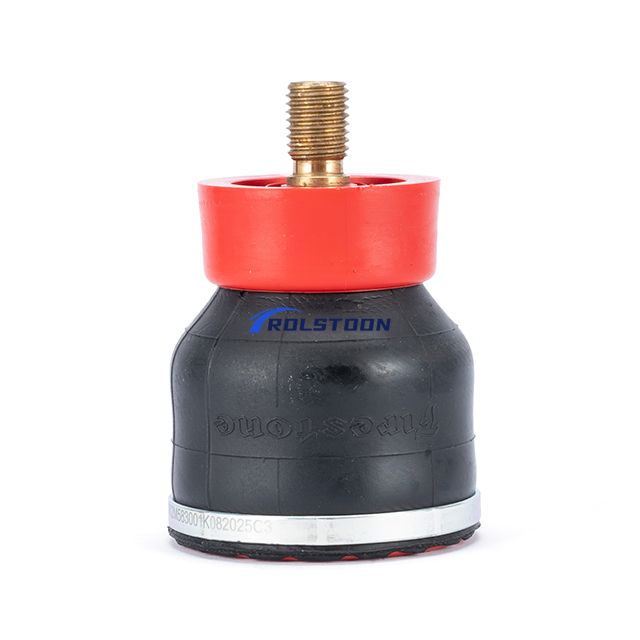

Firestone Metric Air Spring 1M1A-0

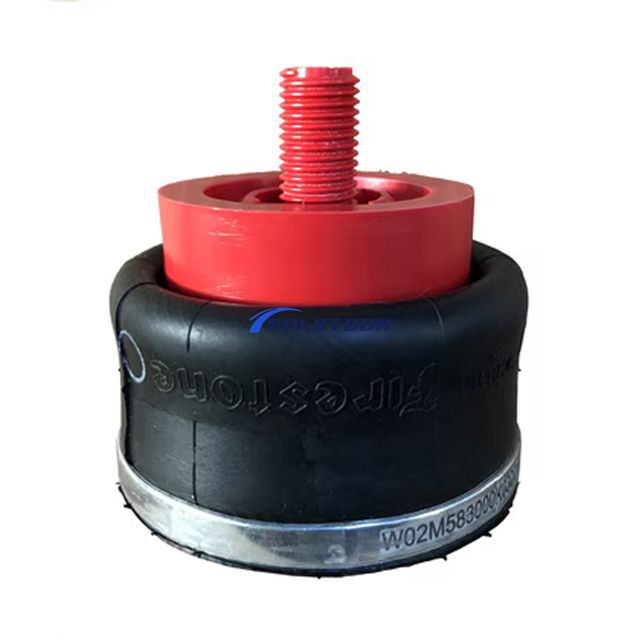

Style: 1M1A-0 (Two Ply Bellows):	Blind nuts, 1/8 BSP air inlet, plastic stud Blind nuts, 1/8 BSP air inlet, brass stud
SKU:
Availability:

Quantity:



Inquire Add to Basket

Details

Brand

Firestone

Article Status

Normal

Bellows Style

1M1A-0

1M1A 0

1M1A0

New Bellows Style

-

HS Code

8708809000

Material of Top Plate

Plastic

Material of Piston

Plastic

Air Inlet

1/8 BSP

Medium

Compressed air

Place of Origin

USA

Application

Industrial equipment

Assembly Weight

0.23 kg

Force to Collapse to Minimum Height (@ 0 BAR)

89 N

Dynamic Characteristics

Dynamic Characteristics at Design Height (Required for Airmount™ isolator design only)
Gauge Pressure (BAR)	Load (kN)	Spring Rate (kN/m)	Natural Frequency (Hz)
3	1.04	53	3.58
4	1.42	70	3.49
5	1.79	86	3.45
6	2.19	103	3.42
7	2.55	118	3.40
Recommended Airmount™ Isolator Design Height: 65 mm.

Force Table

Force Table (Use for Airstroke™ actuator design)
Assembly Height (mm)	Volume @ 7 BAR (cu cm)	EFF Area @ 7 BAR (cm sq)	Force (kN)
Assembly Height (mm)	Volume @ 7 BAR (cu cm)	EFF Area @ 7 BAR (cm sq)	@ 3 BAR	@ 4 BAR	@ 5 BAR	@ 6 BAR	@ 7 BAR
70	180	35	1.02	1.38	1.72	2.09	2.42
65	161	36	1.04	1.42	1.79	2.19	2.55
60	144	37	1.05	1.44	1.82	2.22	2.59
55	123	37	1.07	1.45	1.83	2.23	2.60
50	103	37	1.10	1.47	1.85	2.25	2.62
45	81	38	1.13	1.50	1.89	2.29	2.65
40	64	39	1.17	1.54	1.93	2.33	2.70
