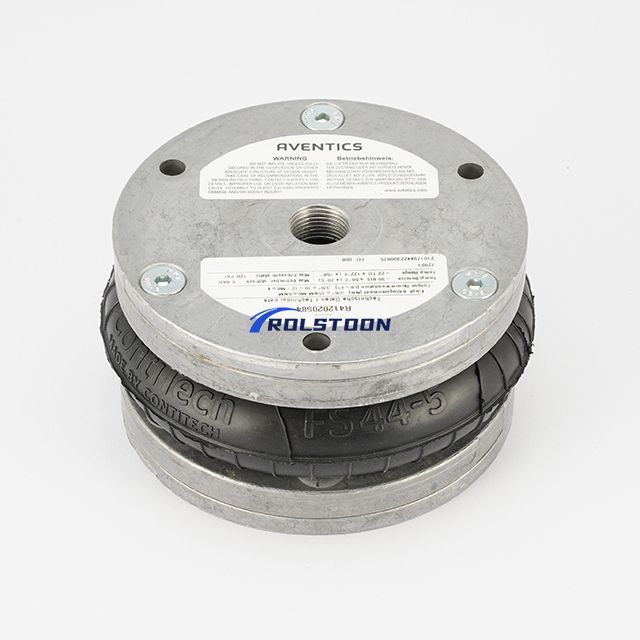

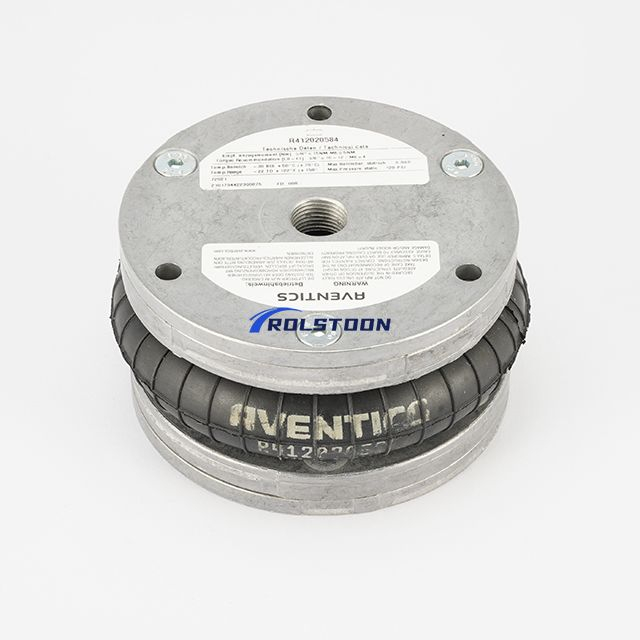

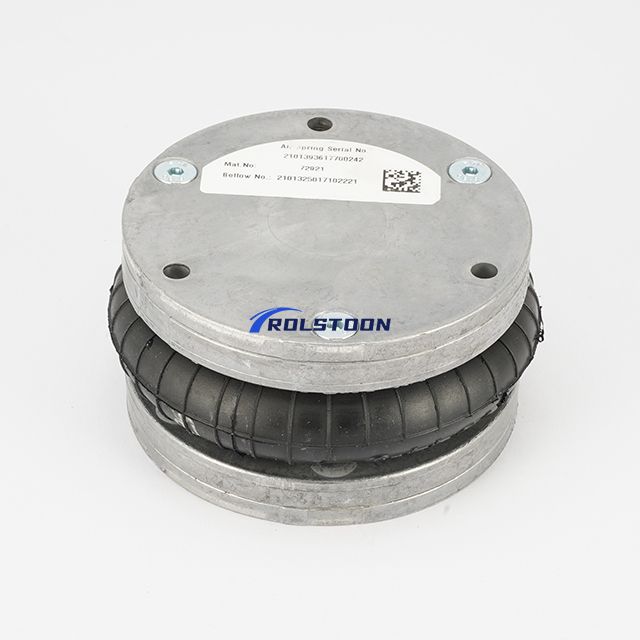

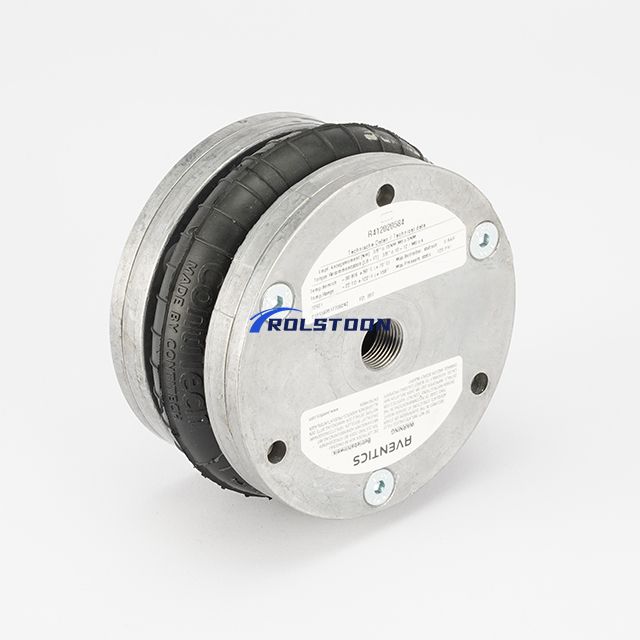

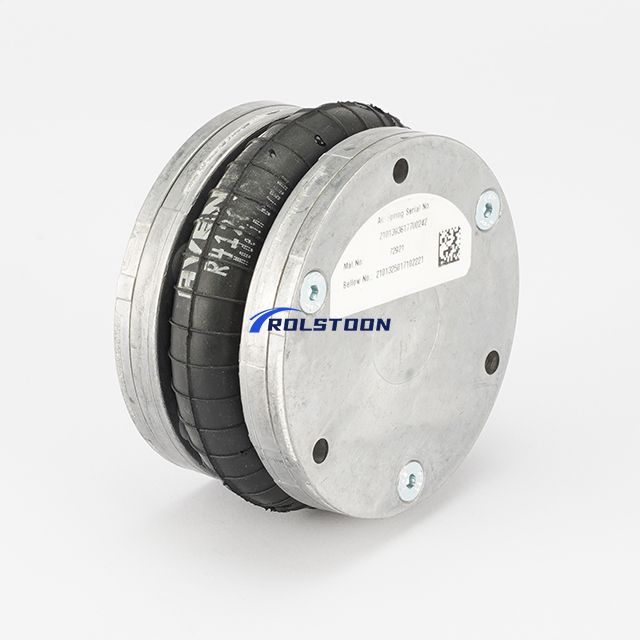

Aventics Series BCC Bellow Actuator R412020584

  • R412020584

  • Aventics

  • BCC-SB-125-035-0CR-AL-G038

SKU:
Availability:
Quantity:
Inquire Add to Basket

Aventics Bellow Cylinders Series BCC Bellow Actuators
Specifications
Bellows
Single
Type
Bellow actuator with mounting ring and cover
Functional principle
Single-acting, retracted without pressure
Compressed air connection
G 3/8
Cover diameter
110 mm
Feature
4 1/2x1
Permissible angle of tilt
max. 20 °
Maximum effective stroke
35 mm
Minimum radial installation space
140 mm
Force min.
1900 N
Force max.
5600 N
Working pressure min.
0 bar
Working pressure max
8 bar
Minimum ambient temperature
-30 °C
Maximum ambient temperature
90 °C
Medium
Compressed air
Reduced service life at a temperature greater than
70 °C
Pressure for determining forces
6 bar
Weight
0.7 kg
Material bellow
Chloroprene rubber
Material front cover
Aluminum
Part No.
R412020584
Features

  • Bellows cylinder with dismountable connecting parts

  • Permit high forces in small installation space

  • Enables angular movements and axial offset

Technical Information
Compliance with the minimum height Hmin as well as the maximum height Hmax must be ensured with end stops.
Use at operating height ≥ Hmax: only permitted upon approval by AVENTICS.
The bellow can be exchanged.
The pressure dew point must be at least 15 °C less than ambient and medium temperature and may not exceed 3 °C.
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS.
Cross References
ContiTech
FS 44-5 DI G3/8 CR
FS44-5DIG3/8CR
ContiTech Order No.
70205
Norgren
TPM/31041
TPM 31041
TPM31041
Dunlop FR
SP2372
Dunlop FR Bellows
4 1/2 x 1
4 1/2x1
Dunlop UK
PNP 30559 B1 05
PNP30559B105
Dunlop UK Bellows
4 1/2 x 1
4 1/2x1
Weforma
WBE 140-E1
WBE-140-E1
WBE 140 E1
WBE140-E1
WBE140 E1
WBE140E1
Weforma Order No.
B1140-E1
B1140 E1
B1140E1
Download
download R412020584_eng_GBR.PDF

download R412020584_zho_CHN.PDF
