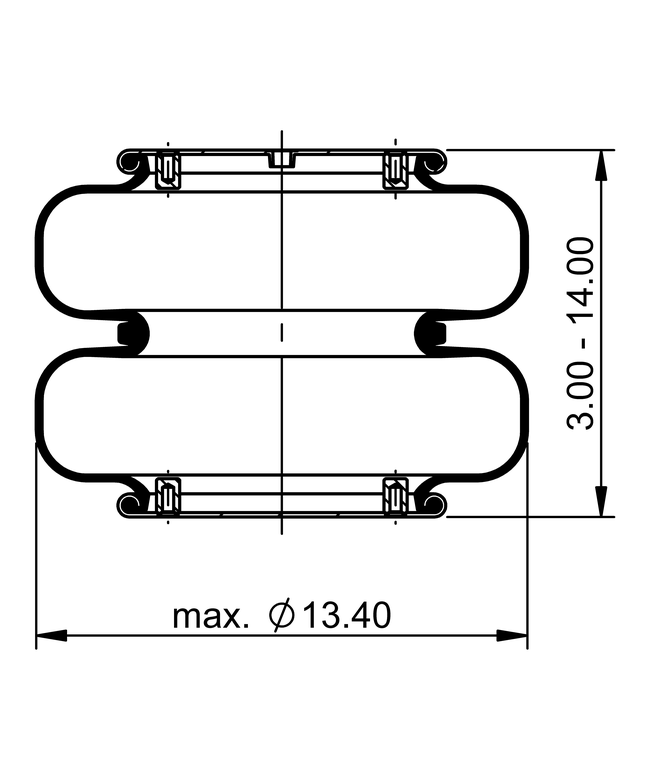

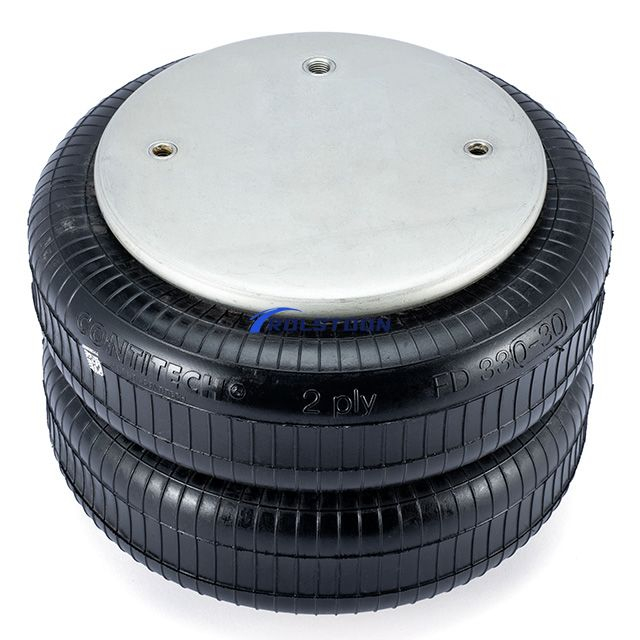

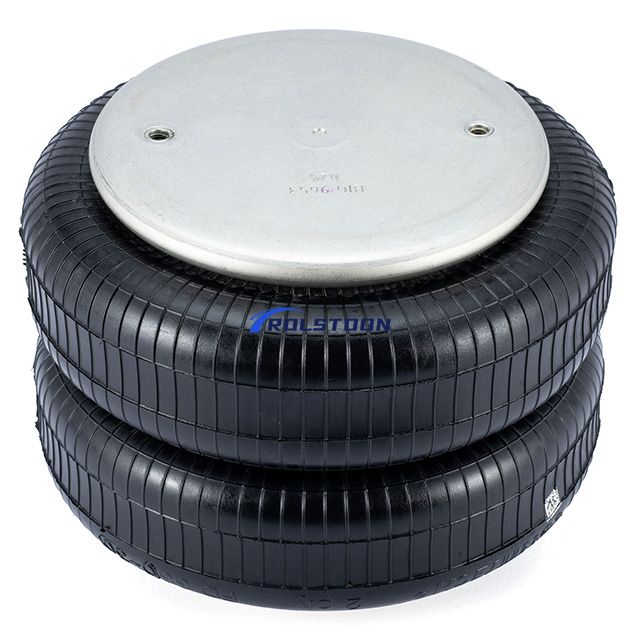

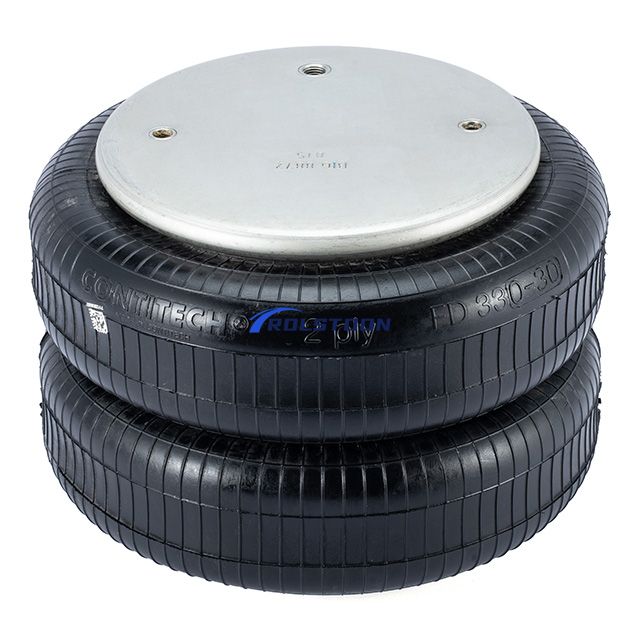

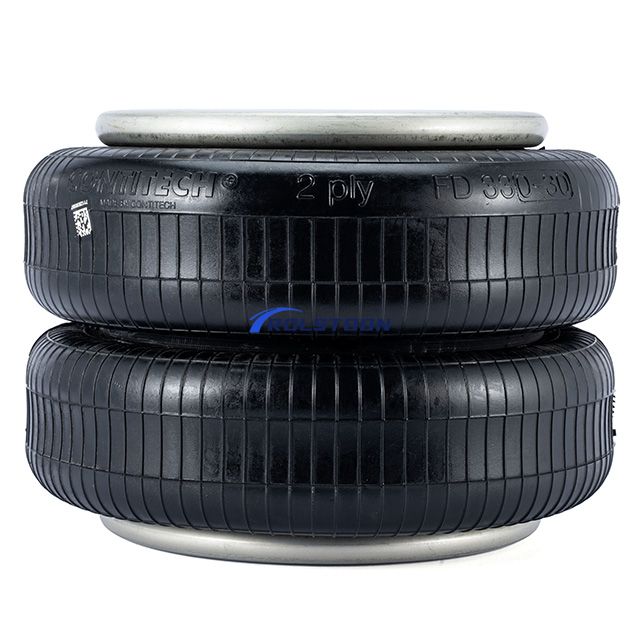

Continental ContiTech Double Convolution Air Spring FD 330-30 369

  • FD 330-30 369

  • ContiTech

SKU:
Availability:
Quantity:
Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Hendrickson Air Spring Ridewell Air Spring Trailer Air Spring Axle Air Spring
Details
Brand
Continental
ContiTech
Assembly No.
FD 330-30 369
Article status
Normal
Assembly order No.
2682015000
Bellow number
FD 330-30
HS code
8708809000
GTIN/EAN
4054392107065
Material of bellow
Natural rubber
Temperature range
(-60 °C) -40 to +50 °C (+70 °C)
(-76 °F) -40 to +122 °F (+158 °F)
The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer
whereby a shorter service life must be expected when operated under these conditions.
Working pressure range
0 to 120 psi
0 to 8 bar
Material of top plate
Steel
Material of bottom plate
Steel
Air inlet
1/4-18 NPTF
Medium
Compressed air or other gases
Permissible angle of tilt
max. 15 to 25 °
Country of origin
Germany
Applications
Trailer/Axle
Industrial equipment
Weight
11.4 lbs
5.171 kg
Cross References
Automann
SP2B22RA-7444
SP2B22RA 7444
SP2B22RA7444
ContiTech
FD 330-30 CI 1/4 NPT
FD330-30CI1/4NPT
FD33030CI1/4NPT
ContiTech Order No.
74263
ContiTech
AS FD 330-30 369 CT
ASFD330-30369CT
ASFD33030369CT
ContiTech Order No.
64533
Enidine
YI-2B12-416
YI 2B12 416
YI2B12416
Firestone No.
W01-455-7444
W01 455 7444
W014557444
Firestone Bellows No.
22-1.5
22 1.5
221.5
Firestone New Bellows No.
22D-1.5
22D 1.5
22D1.5
Firestone No.
W01-358-7444
W01 358 7444
W013587444
Firestone Bellows No.
22-1.5
22 1.5
221.5
Firestone New Bellows No.
22D-1.5
22D 1.5
22D1.5
FleetPride
AS7444
Goodyear
2B12-446
2B12 446
2B12446
Goodyear Flex No.
578-92-3-310
578 92 3 310
578923310
Goodyear
2B12-416
2B12 416
2B12416
Goodyear Flex No.
578-92-3-315
578 92 3 315
578923315
Taurus
6328
Triangle
AS-4369
AS 4369
AS4369
TRP
AS74440
Original Parts
Hendrickson
-
OE No.
S-9830
S 9830
S9830
Application
Trailer
Ridewell
-
OE No.
1003587444C
Application
Trailer
Hendrickson
-
OE No.
B-9830
B 9830
B9830
Application
Trailer

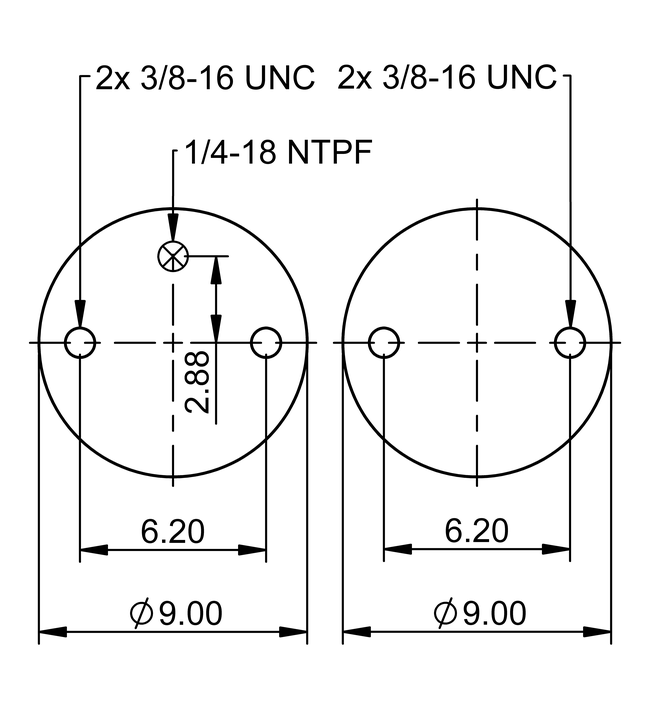

Torques
1/4-18 NPTF
max. 22 lbf ft
3/8-16 UNC
max. 20 lbf ft
Download
download FD_330-30_369.PDF
