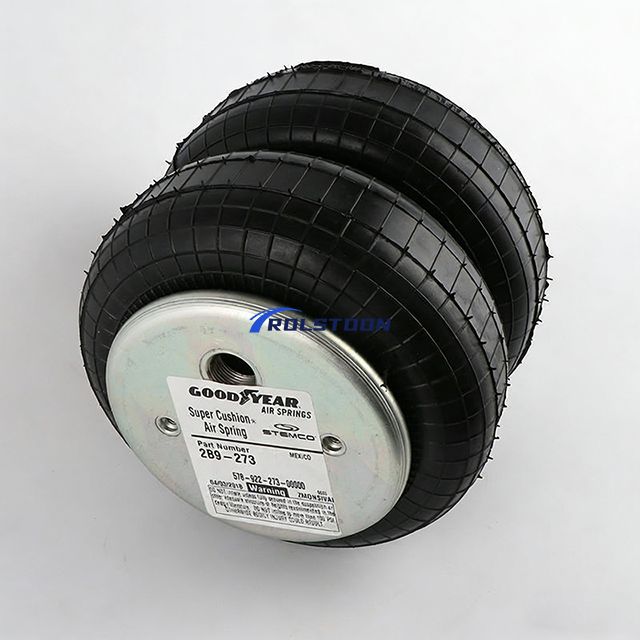

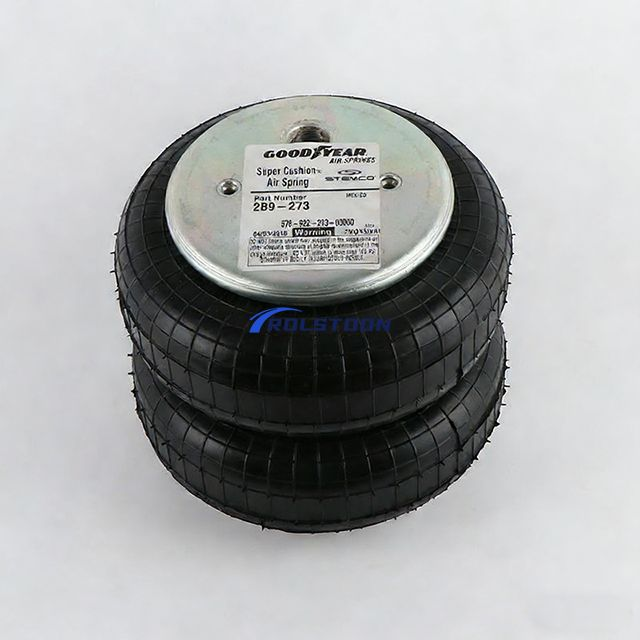

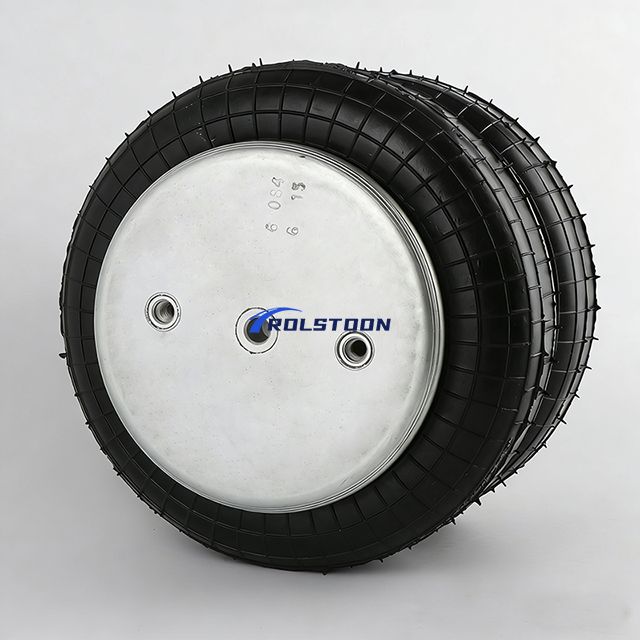

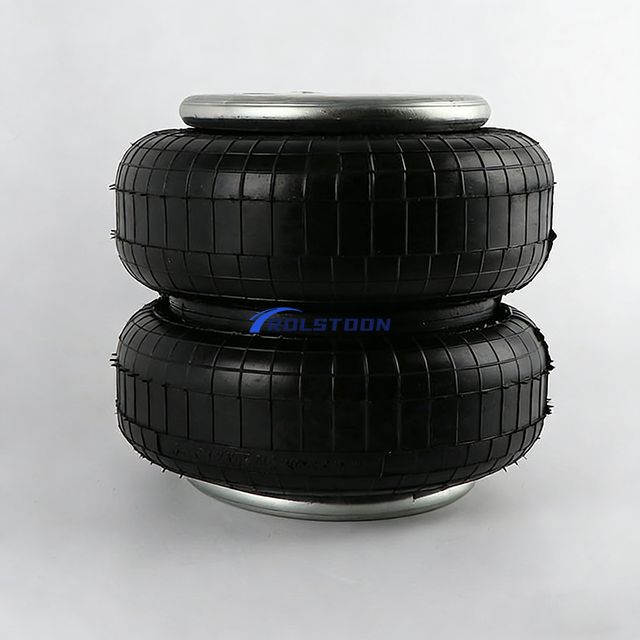

Goodyear Super-Cushion Double Convolution Air Spring 2B9-273, Flex No. 578-92-3-206

  • 2B9-273

  • Goodyear

  • 578-922-273-00000

SKU:
Availability:
Quantity:
Inquire Add to Basket

Goodyear Air Spring Super-Cushion Air Spring
Details
Brand
Goodyear
Super-Cushion
Assembly No.
2B9-273
2B9 273
2B9273
Flex No.
578-92-3-206
578 92 3 206
578923206
Flex Members
Fabric - reinforced natural rubber
HS Code
8708809000
Operating Temperature Range
(-76 °F) -56 to +135 °F (+150 °F)
(-60 °C) -49 to +57 °C (+65 °C)
The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.
Working Pressure Range
0 to 7 bar
0 to 100 psi
Material of Top Plate
Forged steel
Material of Bottom Plate
Forged steel
Air Fitting
G3/4
Medium
Compressed air or other gases
Permissible Angle of Tilt
max. 25 °
Application
Industrial equipment
Assembly Weight
7.72 lb
3.50 kg
Features
Load Range (Isolator)
540-3800 lb
Design Height Range (Isolator)
8.0-9.0 in
Useable Stroke (Actuator)
7.2 in
Force to Compress at 0 PSIG (Approximate)
150 lb
Nominal Free Standing Height at 0 PSIG
7.3 in
Cross References
Aventics
2999619400
ContiTech
FD 200-25 CI G3/4
FD 200 25 CI G3/4
FD200-25CIG3/4
FD20025CIG3/4
ContiTech Order No.
60382
Firestone No.
W01-M58-6194
W01.M58.6194
W01 M58 6194
W01M586194
Firestone Style
20F-2
20F 2
20F2
Original Parts
-
-
