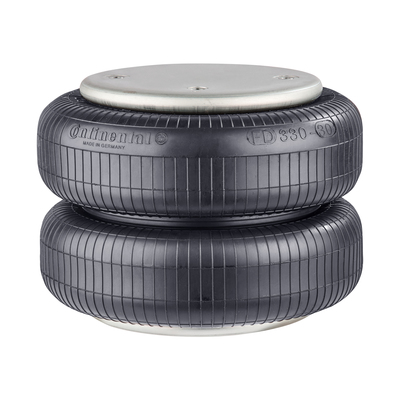

FD 330-30 1/4 M8 | ContiTech Air Spring for Hendrickson Axle

Name: FD 330-30 1/4 M8 | ContiTech Air Spring for Hendrickson Axle
Brand: ContiTech
Rating: 5.0 (22 reviews)

Continental ContiTech Double Convolution Air Spring FD 330-30 1/4 M8 for Hendrickson Axle

Model:
FD 330-30 1/4 M8
Brand:
ContiTech

SKU:
Availability:

Quantity:



Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Hendrickson Air Spring Trailer Air Spring Axle Air Spring Model Series C Air Actuator Airbag

Details

Brand

Continental

ContiTech

Assembly No.

FD 330-30 1/4 M8

FD 330 30 1/4 M8

FD330-30 1/4 M8

FD33030 1/4 M8

Article Status

Normal

Assembly Order No.

60417

Bellow Number

FD 330-30

FD 330 30

FD330-30

FD33030

HS Code

8708809000

GTIN/EAN

4054387105359

Material of Bellow

Natural rubber

Temperature Range

(-60 °C) -40 to +50 °C (+70 °C)

(-76 °F) -40 to +122 °F (+158 °F)

The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.

Working Pressure Range

0 to 8 bar

0 to 120 psi

Material of top Plate

Steel

Material of Bottom Plate

Steel

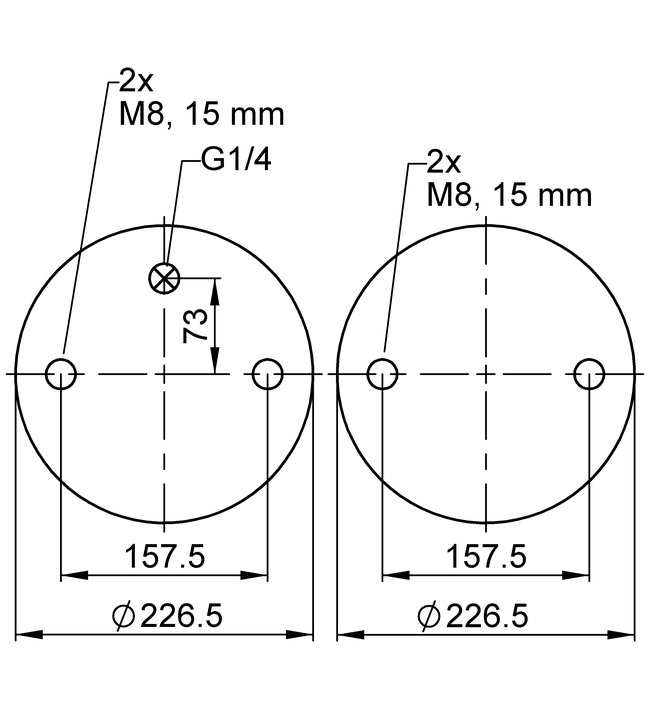

Air Inlet

G1/4

Medium

Compressed air

Permissible Angle of Tilt

max. 15 to 25 °

Place of Origin

Germany

Application

Trailer/Axle

Industrial equipment

Weight

5.1 kg

11.2 lbs

Remarks

These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

Cross References

Auger

AU 34301-2P09

AU 34301 2P09

AU34301-2P09

AU343012P09

Aventics

2999638308

Blacktech

2C 315-225 P02

2C 315 225 P02

2C315-225P02
