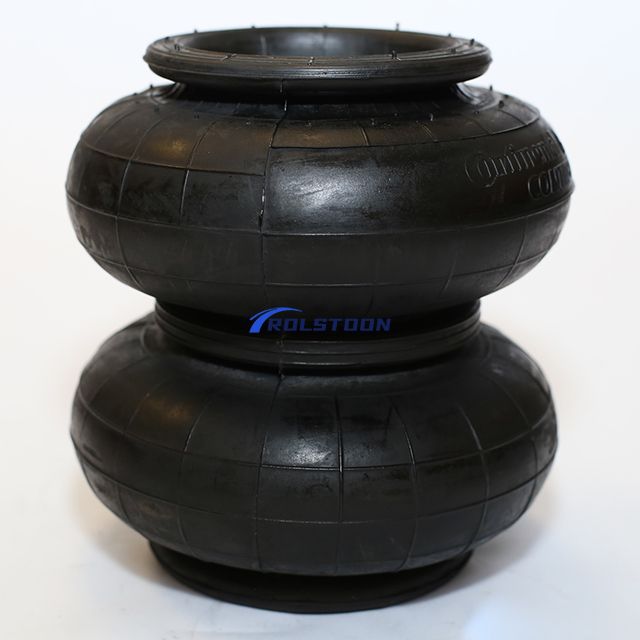

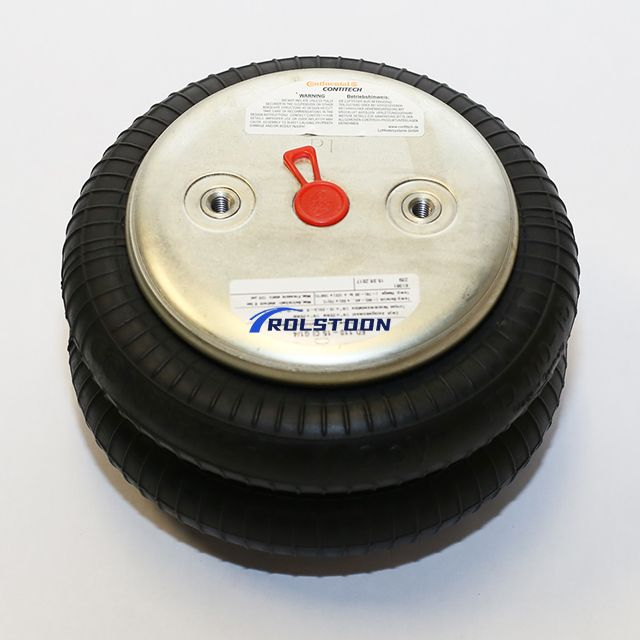

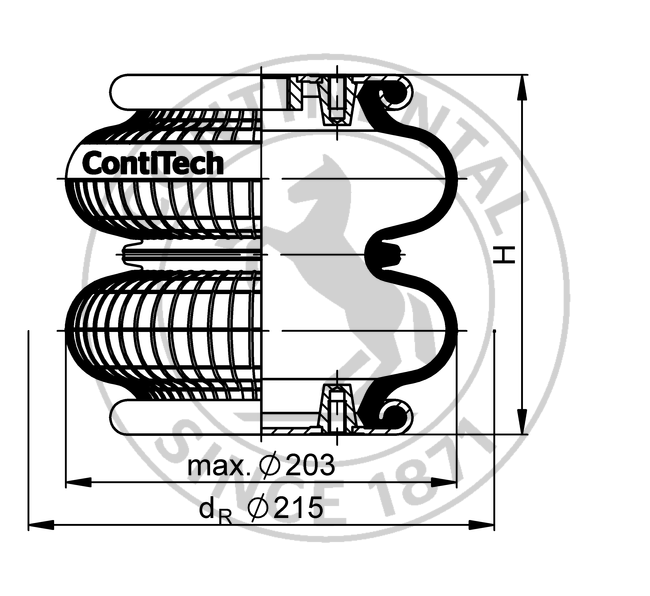

FD 110-15 CI | Continental ContiTech Double Convolution Air Actuator

FD 110-15 CI | Continental ContiTech Double Convolution Air Actuator

Name: FD 110-15 CI | Continental ContiTech Double Convolution Air Actuator
Brand: ContiTech
SKU: 569820396
Rating: 5.0 (11 reviews)

Continental ContiTech Double Convolution Air Actuator FD 110-15 VP / FD 110-15 CI G1/4 / FD 110-15 CI G3/4

Model:
FD 110-15 CI
Brand:
ContiTech

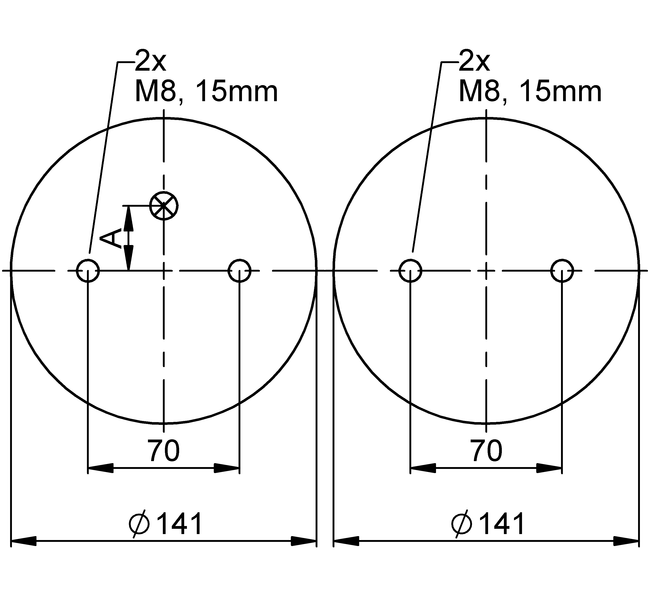

Purchase order data:	rubber bellows only with crimped plates, G1/4 air inlet, A = 0 mm excentrical with crimped plates, G3/4 air inlet, A = 0 mm excentrical
SKU:
Availability:

Quantity:



Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Air Actuator Model series C Air Actuator

Details

Brand

Continental

ContiTech

Bellow number

FD 110-15

FD 110 15

FD110-15

FD11015

HS code

8708809000

Material of bellow

Natural rubber

Temperature range

(-60 °C) -40 to +50 °C (+70 °C)

(-76 °F) -40 to +122 °F (+158 °F)

The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.

Working pressure range

0 to 8 bar

0 to 120 psi

Medium

Compressed air or other gases

Permissible angle of tilt

max. 15 to 25 °

Applications

Industrial equipment

Minimum pressure

0 bar

Return force to min height

≤ 200 N

Overall weight

2.1 kg

4.63 lb

Vibration isolation – dynamic characteristic values

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (load) F [kN]	3.4	4.7	5.9	7.1	8.3	9.6	2.7
Spring rate c [N/mm]	71	92	113	133	154	174
Natural Frequency f₀ [Hz]	2.3	2.2	2.2	2.2	2.1	2.1
Design height H: recommended 175mm, minimum 155mm

Measuring procedure: Room temperature / Force-height-data quasistatic / Dynamic data at 1 Hz

Pneumatic application – static characteristic values

Force F [kN]
Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
H = 185 [mm]	2.92	3.99	5.08	6.23	7.42	8.66	2.8
H = 165 [mm]	3.75	5.08	6.43	7.82	9.25	10.7	2.5
H = 145 [mm]	4.48	6.04	7.6	9.21	10.8	12.5	2.3
H = 125 [mm]	5.07	6.8	8.55	10.3	12.1	13.9	2
H = 105 [mm]	5.63	7.55	9.49	11.5	13.5	15.5	1.7
H = 85 [mm]	6.17	8.26	10.3	12.5	14.6	16.8	1.4
