FD 40-10 CI | Continental ContiTech Double Convolution Air Actuator

FD 40-10 CI | Continental ContiTech Double Convolution Air Actuator

Name: FD 40-10 CI | Continental ContiTech Double Convolution Air Actuator
Brand: ContiTech
SKU: 522711396
Rating: 5.0 (74 reviews)

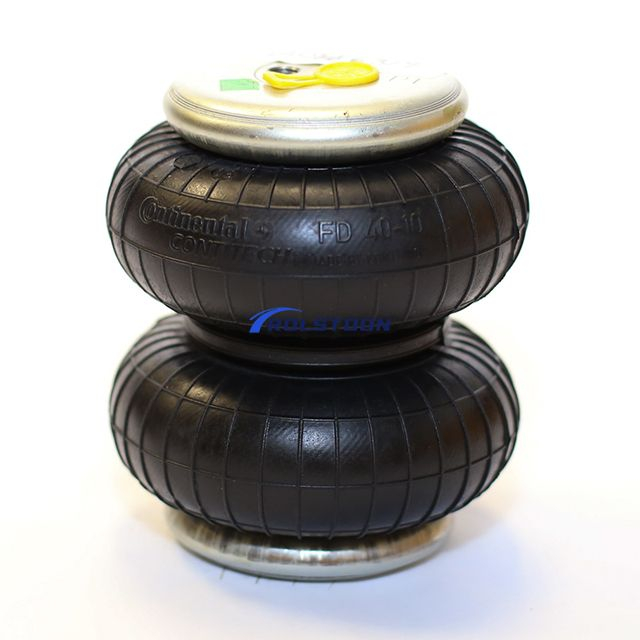

Continental ContiTech Double Convolution Air Actuator FD 40-10 VP / FD 40-10 CI G1/8 / FD 40-10 CI G1/8 NIRO

Model:
FD 40-10 CI
Brand:
ContiTech

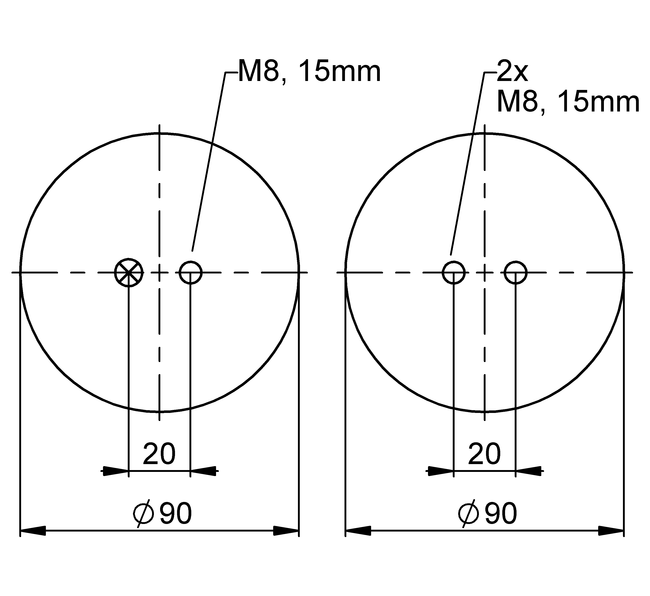

Purchase order data:	rubber bellows only with crimped plates, G1/8 air inlet, A = 10 mm excentrical with stainless steel crimped plates, G1/8 air inlet, A = 10 mm excentrical
SKU:
Availability:

Quantity:



Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Air Actuator Model series C Air Actuator

Details

Brand

Continental

ContiTech

Bellow number

FD 40-10

FD 40 10

FD40-10

FD4010

HS code

8708809000

Material of bellow

Natural rubber

Temperature range

(-60 °C) -40 to +50 °C (+70 °C)

(-76 °F) -40 to +122 °F (+158 °F)

The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.

Working pressure range

0 to 8 bar

0 to 120 psi

Medium

Compressed air or other gases

Permissible angle of tilt

max. 15 to 25 °

Applications

Industrial equipment

Minimum pressure

0 bar

Return force to min height

≤ 200 N

Overall weight

1.3 kg

2.87 lb

Vibration isolation – dynamic characteristic values

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (load) F [kN]	1.1	1.5	2.0	2.4	2.8	3.2	1.2
Spring rate c [N/mm]	34	45	58	70	83	95
Natural Frequency f₀ [Hz]	2.8	2.8	2.7	2.7	2.7	2.7

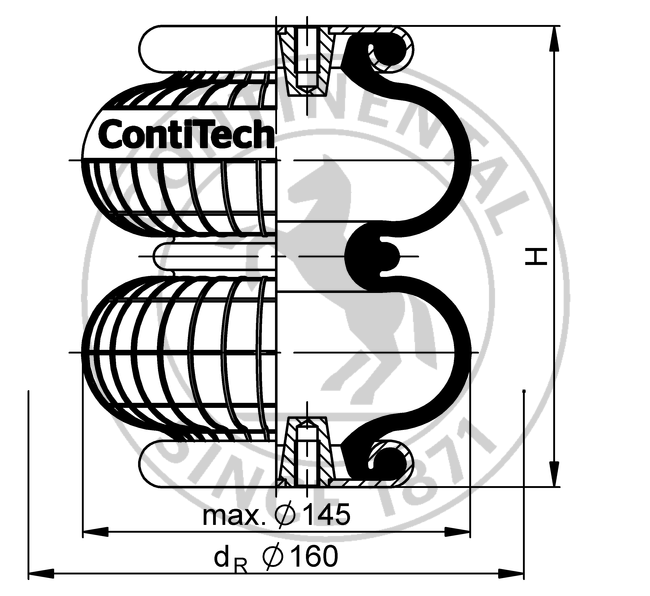

Design height H: recommended 160mm, minimum 150mm

Measuring procedure: Room temperature / Force-height-data quasistatic / Dynamic data at 1 Hz

Pneumatic application – static characteristic values

Force F [kN]
Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
H = 160 [mm]	1.12	1.55	2	2.4	2.8	3.2	1.2
H = 140 [mm]	1.6	2.17	2.8	3.3	3.9	4.5	1.1
H = 120 [mm]	2	2.65	3.4	4.1	4.8	5.5	0.9
H = 100 [mm]	2.3	3.1	4	4.8	5.6	6.4	0.7
H = 80 [mm]	2.6	3.5	4.47	5.4	6.26	7.1	0.6
