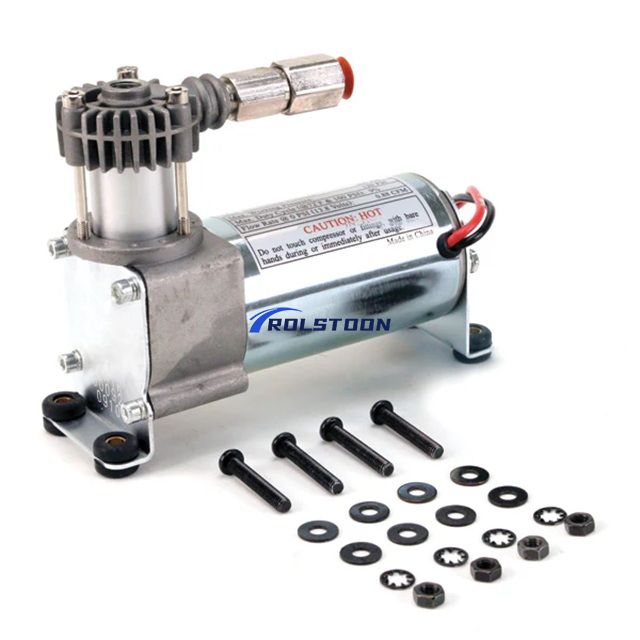

90C | Viair C-Models Air Compressor

Name: 90C | Viair C-Models Air Compressor
Brand: Viair
Rating: 5.0 (31 reviews)

VIAIR’s 90 Series compressors offer a light duty solution for smaller air requirements and are designed to fill no larger than a 1.0 gallon air tank. Multiple duty cycles, mounting, compressor finish, and intake options are available depending on model.

Model:
90C
Brand:
Viair

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 120 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.03 CFM @ 0 PSI

29.16 LPM @ 0 PSI

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

9% @ 100 PSI

Maximum Working Pressure

120 PSI

8.27 BAR

Maximum Air Tank Size

1.0 Gallon

3.79 L

Maximum Current Consumption

10-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

26-Amps @ 0 PSI

Sound Intensity Level

62.4 dB @ 0 PSI

Dimensions

5.9″L x 2.1″W x 4.5″H

149.86 mm (L)x53.34 mm (W) x 114.3 mm (H)

Net Weight

2.4 lbs

1.09 kg

Features

Check Valve
Vibration Isolators
Mounting Hardware
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.03	7	0	29.0	7
10	0.71	8	1.0	19.0	8
20	0.67	8	2.0	18.0	9
30	0.64	9	3.0	16.5	9
40	0.60	9	4.0	15.0	10
50	0.57	9	5.0	13.5	10
60	0.53	10	6.0	12.5	10
70	0.48	10	7.0	11.0	10
80	0.45	10	8.0	10.0	9
90	0.43	10
100	0.39	9
110	0.36	9
120	0.34	9

Fill Rates

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 08 seconds (± 05 seconds)
85 to 105 PSI	16 seconds (± 03 seconds)
0 to 120 PSI	1 minute 23 seconds (± 05 seconds)
90 to 120 PSI	27 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 minute 20 sec. (± 10 seconds)
85 to 105 PSI	35 seconds (± 05 seconds)
0 to 120 PSI	3 minute 04 sec. (± 10 seconds)
90 to 120 PSI	54 seconds (± 05 seconds)
