275C | Viair C-Models Air Compressor

Name: 275C | Viair C-Models Air Compressor
Brand: Viair
Rating: 5.0 (87 reviews)

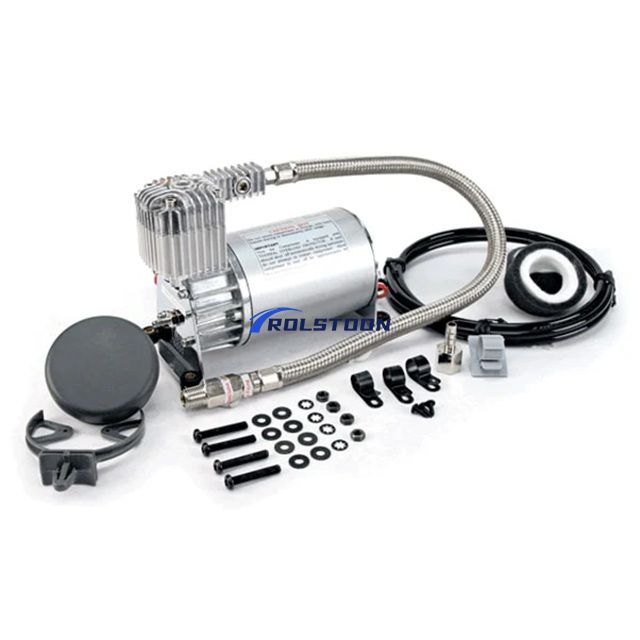

The 275C air compressor has a max run time of 15 minutes and comes equipped with a stainless steel braided leader hose, check valve and remote air filter assembly. Mounting hardware is included.

Model:
275C
Brand:
Viair

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

2.03 CFM @ 0 PSI

57.5 LPM @ 0 PSI

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

25% @ 100 PSI

Maximum Working Pressure

150 PSI

10.34BAR

Maximum Air Tank Size

2.5 Gallon

9.46L

Maximum Current Consumption

20-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

66-Amps @ 0 PSI

Sound Intensity Level

73.1 dB @ 0 PSI

Dimensions

6.5″L x 3.5″W x 4.5″H

165.1mm (L) x88.9mm (W) x114.3mm (H)

Net Weight

5.20 lbs

2.4 kg

Features

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

Pressure [PSI]	Air Flow Rate [CFM]	Current [A]	Pressure [BAR]	Air Flow Rate [LPM]	Current [A]
0	2.03	10	0	57.5	10
10	1.17	12	1.0	32.0	13
20	1.11	13	2.0	30.0	14
30	1.04	15	3.0	28.5	16
40	1.01	15	4.0	26.5	16
50	0.97	16	5.0	24.5	17
60	0.92	16	6.0	22.5	17
70	0.88	17	7.0	21.5	18
80	0.83	17	8.0	20.0	18
90	0.79	17	9.0	18.5	18
100	0.76	18	10.0	17.0	17
110	0.72	18
120	0.69	18
130	0.65	18
140	0.62	17
150	0.57	17

Fill Rates

1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 05 seconds (± 05 seconds)
85 to 105 PSI	14 seconds (± 03 seconds)
0 to 145 PSI	1 minute 45 seconds (± 05 seconds)
110 to 145 PSI	30 seconds (± 03 seconds)
2.5 GALLON TANK	FILL RATE
0 to 105 PSI	2 minutes 45 seconds (± 10 seconds)
85 to 105 PSI	40 seconds (± 05 seconds)
0 to 145 PSI	4 minutes 30 seconds (± 10 seconds)
110 to 145 PSI	1 minute 35 seconds (± 05 seconds)
