100C
Viair
| Configuration: | |
|---|---|
| SKU: | |
| Availability: | |
| Quantity: | |

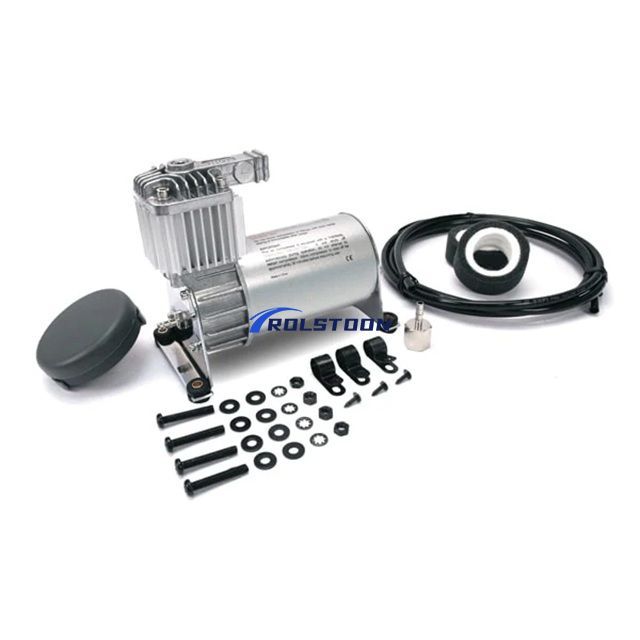

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware

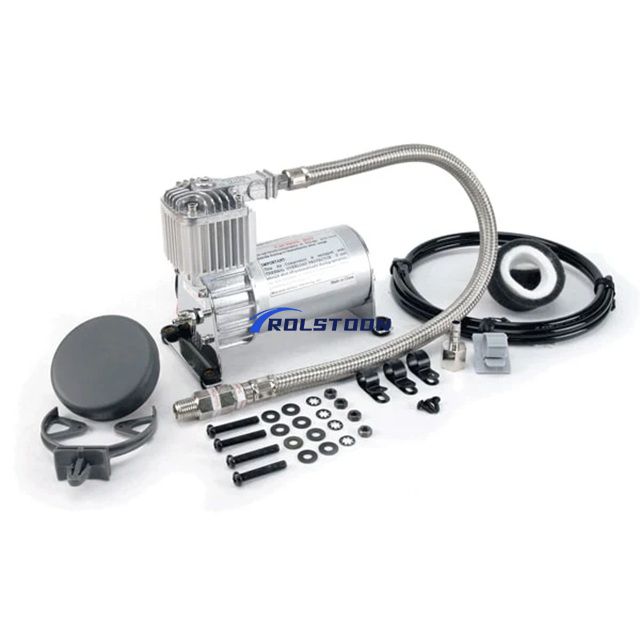

Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.27 | 9 | 0 | 36.0 | 9 |
| 10 | 0.90 | 10 | 1.0 | 25.0 | 10 |
| 20 | 0.85 | 11 | 2.0 | 22.5 | 11 |
| 30 | 0.79 | 11 | 3.0 | 21.0 | 12 |
| 40 | 0.76 | 12 | 4.0 | 20.0 | 13 |
| 50 | 0.72 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.71 | 13 | 6.0 | 17.0 | 12 |
| 70 | 0.67 | 13 | 7.0 | 15.0 | 12 |
| 80 | 0.64 | 12 | 8.0 | 13.7 | 12 |
| 90 | 0.59 | 12 | 9.0 | 12.3 | 12 |
| 100 | 0.55 | 12 | |||
| 110 | 0.52 | 12 | |||
| 120 | 0.48 | 12 | |||
| 130 | 0.45 | 12 |
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 seconds (± 05 seconds) |
| 85 to 105 PSI | 10 seconds (± 03 seconds) |
| 0 to 120 PSI | 1 minute 00 second (± 05 seconds) |
| 90 to 120 PSI | 17 seconds (± 03 seconds) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 minute 40 seconds (± 10 seconds) |
| 85 to 105 PSI | 25 seconds (± 05 seconds) |
| 0 to 120 PSI | 2 minute 00 second (± 10 seconds) |
| 90 to 120 PSI | 35 seconds (± 05 seconds) |
