98C | Viair C-Models Air Compressor

Name: 98C | Viair C-Models Air Compressor
Brand: Viair
SKU: 102808186
Rating: 5.0 (70 reviews)

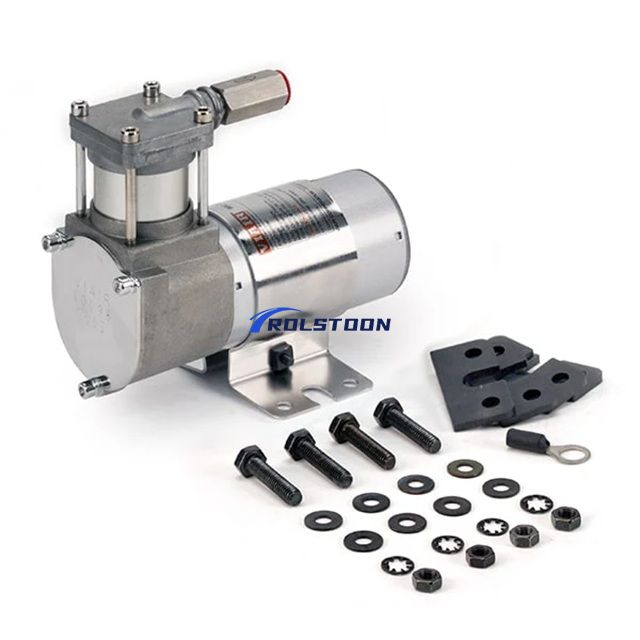

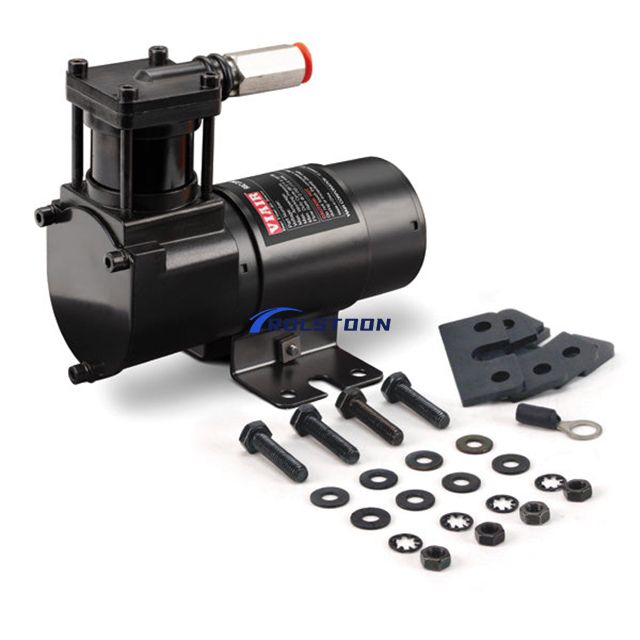

The 98C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, features an omega bracket with mounting hardware and a check valve. Available in Stealth Black or Chrome.

Model:
98C
Brand:
Viair
Code:
00098

Color:	Stealth Black Chrome
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 200 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.53 CFM @ 0 PSI (0 BAR)

43.32 LPM @ 0 PSI (0 BAR)

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

10% @ 100 PSI (6.89 BAR)

Maximum Working Pressure

130 PSI (1)

8.96 BAR (1)

Maximum Air Tank Size

1.0 Gallon (1)

3.79 L (1)

Maximum Current Consumption

13-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

13.8-Amps @ 0 PSI (0 BAR)

Dimensions (1)

5.6″L x 3.1″W x 4.7″H

142.2 mm (L)x 78.7 mm (W) x 119.4 mm (H)

Sound Intensity Level

68.3 dB @ 0 PSI (0 BAR)

Net Weight

2.55 lbs (1)

1.16 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

Omega Bracket.
Check Valve.
Vibration Isolators.
Mounting Hardware.
Installation Instructions.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.53	7
10	1.00	9
20	0.95	10
30	0.90	11
40	0.85	11
50	0.77	12
60	0.72	12
70	0.65	12
80	0.60	12
90	0.54	12
100	0.48	12
110	0.44	12
120	0.39	12
130	0.35	11

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	43.5	7
1.0	28.0	9
2.0	25.5	11
3.0	22.7	11
4.0	20.7	12
5.0	18.3	12
6.0	16.3	12
7.0	13.7	12
8.0	11.7	12
9.0	10.0	11

Fill Rates

0.5 GALLONS TANK	FILL RATE
0 to 105 PSI	50 seconds (± 05 seconds)
85 to 105 PSI	15 seconds (± 03 seconds)
0 to 120 PSI	1 minute 05 seconds (± 05 seconds)
90 to 120 PSI	21 seconds (± 03 seconds)
1.0 GALLONS TANK	FILL RATE
0 to 105 PSI	1 minute 40 seconds (± 10 seconds)
85 to 105 PSI	30 seconds (± 05 seconds)
0 to 120 PSI	2 minutes 10 seconds (± 10 seconds)
90 to 120 PSI	45 seconds (± 05 seconds)
