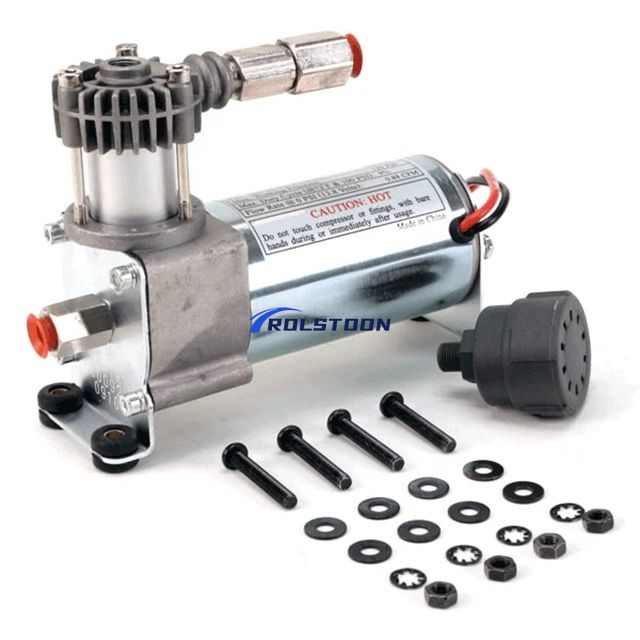

92C | Viair C-Models Air Compressor

Name: 92C | Viair C-Models Air Compressor
Brand: Viair
Rating: 5.0 (56 reviews)

The 92C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, features a removable air filter, check valve and comes with mounting hardware.

Model:
92C
Brand:
Viair
Code:
00092

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 120 PSI Air Compressor Air Pump

Specifications

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

9% @ 100 PSI

Maximum Working Pressure

120 PSI

8.27 BAR

Maximum Air Tank Size

1.0 Gallon

3.78 L

Maximum Current Consumption

10-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

27.6-Amps @ 0 PSI

Sound Intensity Level

62.1 dB @ 0 PSI

Dimensions

7.6″L x 2.0″W x 4.6″H

193.04mm (L) x50.8mm (W) x116.84mm (H)

Net Weight

2.45 lbs

1.11 kg

Features

Check Valve
Vibration Isolators
Mounting Hardware
Direct Mount Air Filter Assembly
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.03	7	0	29.0	7
10	0.71	8	1.0	19.0	8
20	0.67	8	2.0	18.0	9
30	0.64	9	3.0	16.5	9
40	0.60	9	4.0	15.0	10
50	0.57	9	5.0	13.5	10
60	0.53	10	6.0	12.5	10
70	0.48	10	7.0	11.0	10
80	0.45	10	8.0	10.0	9
90	0.43	10
100	0.39	9
110	0.36	9
120	0.34	9

Part# 00092

PSI	PERFORMANCE	CURRENT	dB(1M)
0	30	5.5	59.8
10	22	6.5	60
20	20	7	61.5
30	19	7.6	62.3
40	18	8.1	63.6
50	17	8.3	63.5
60	16	8.6	63.2
70	15.5	8.8	63.5
80	15	8.8	64.6
90	14	8.8	64.8
100	13	8.8	65.4
110	11	8.6	65.8
120	10	8.8	65.8
130	9.5	8.6	65.4
140	8.5	8.6	66.8
150	8	8.4	67.2

Fill Rates

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 08 seconds (± 05 seconds)
85 to 105 PSI	16 seconds (± 03 seconds)
0 to 120 PSI	1 minute 23 seconds (± 05 seconds)
90 to 120 PSI	27 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 minute 20 seconds (± 10 seconds)
85 to 105 PSI	35 seconds (± 05 seconds)
0 to 120 PSI	3 minute 04 seconds (± 10 seconds)
90 to 120 PSI	54 seconds (± 05 seconds)
