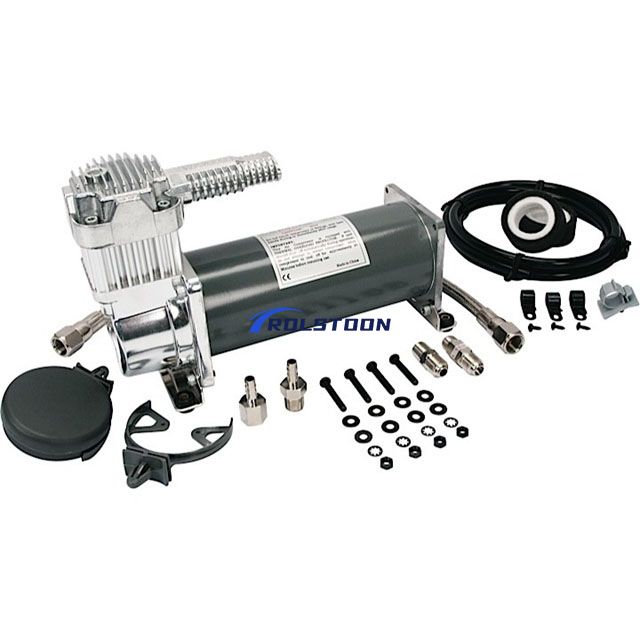

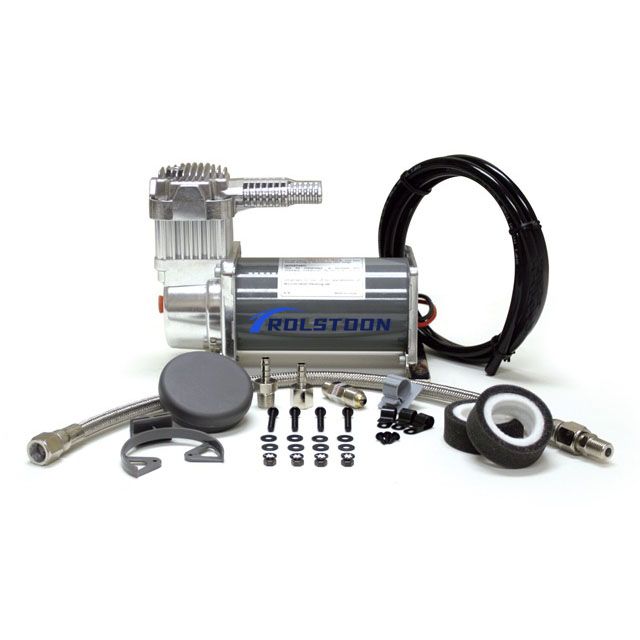

450C-IG | Viair IG-Series Air Compressor

Name: 450C-IG | Viair IG-Series Air Compressor
Brand: Viair
SKU: 570510107
Rating: 5.0 (28 reviews)

The 450 IG air compressors are heavy-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation. They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. Available in 12V or 24V.

Model:
450C-IG
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.80 CFM @ 0 PSI (PN 45050)

50.97 LPM @ 0 PSI (PN 45050)

2.20 CFM @ 0 PSI (PN 45058)

62.29 LPM @ 0 PSI (PN 45058)

Motor Voltage

12-Volt / 24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 100 PSI (6.89 BAR)

Maximum Working Pressure

150 PSI (1)

10.34 BAR (1)

Maximum Air Tank Size

5.0 Gallon (1)

18.93L (1)

Maximum Current Consumption

23-Amps (PN 45050)

13-Amps (PN 45058)

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 ℃ (1)

Minimum Ambient Temperature

-40 °F (1)

-40 ℃ (1)

In Rush Current

89.45-Amps @ 0 PSI (PN 45050)

Sound Intensity Level

67.2 dB @ 0 PSI (PN 45050)

Dimensions

11.25″L x 4″W x 6.75″H

285.75mm (L)x101.6mm (W) x171.45mm (H)

Net Weight

10.40 lbs (1)

4.72 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

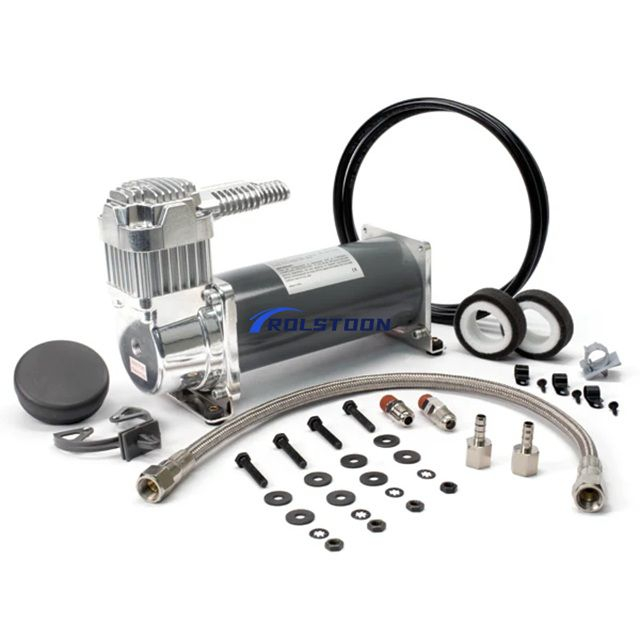

Features

Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.80	12
10	1.75	14
20	1.60	16
30	1.52	17
40	1.39	18
50	1.27	19
60	1.18	19
70	1.09	20
80	1.04	20
90	0.97	21
100	0.9	22
110	0.90	23
120	0.86	23
130	0.81	22
140	0.76	21
150	0.72	21

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	51.0	12
1.0	47.6	15
2.0	43.3	17
3.0	38.2	18
4.0	34.0	19
5.0	30.5	20
6.0	28.1	21
7.0	26.4	22
8.0	25.0	23
9.0	23.0	22
10.0	21.0	21

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	2.20	8
10	1.98	9
20	1.86	11
30	1.78	11
40	1.69	11
50	1.59	12
60	1.52	12
70	1.45	12
80	1.38	12
90	1.31	12
100	1.24	13
110	1.17	13
120	1.09	12
130	1.01	12
140	0.95	12
150	0.88	12

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	62.3	8
1.0	54.4	10
2.0	50.6	11
3.0	47.0	11
4.0	43.4	12
5.0	40.6	12
6.0	37.7	12
7.0	35.0	13
8.0	32.0	12
9.0	28.5	12
10.0	26.0	12

Fill Rates

12-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	1 minute 55 seconds (± 10 seconds)
85 to 105 PSI	28 seconds (± 05 seconds)
0 to 145 PSI	3 minutes 02 seconds (± 10 seconds)
110 to 145 PSI	59 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 105 PSI	4 minutes 00 second (± 10 seconds)
85 to 105 PSI	58 seconds (± 05 seconds)
0 to 145 PSI	6 minutes 25 seconds (± 15 seconds)
110 to 145 PSI	2 minutes 11 seconds (± 10 seconds)

24-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	1 minute 45 seconds (± 10 seconds)
85 to 105 PSI	25 seconds (± 05 seconds)
0 to 145 PSI	2 minutes 40 seconds (± 10 seconds)
110 to 145 PSI	50 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 105 PSI	3 minutes 20 seconds (± 10 seconds)
85 to 105 PSI	50 seconds (± 05 seconds)
0 to 145 PSI	5 minutes 15 seconds (± 15 seconds)
110 to 145 PSI	1 minute 45 seconds (± 10 seconds)
