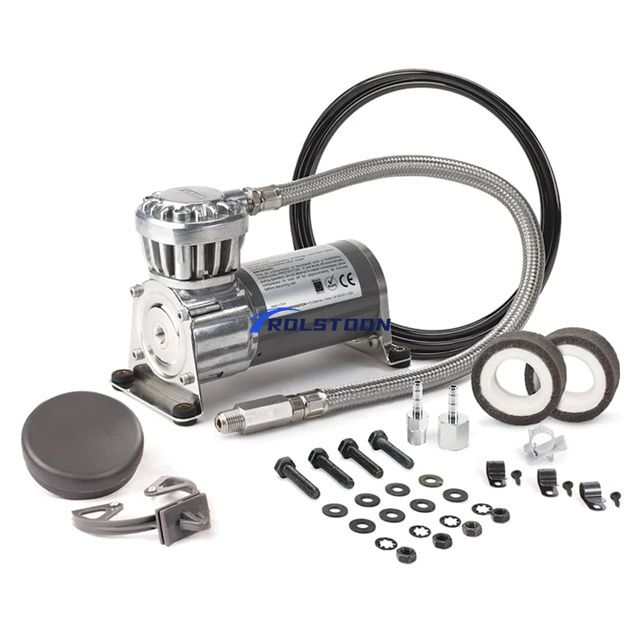

150C-IG | Viair IG-Series Air Compressor

Name: 150C-IG | Viair IG-Series Air Compressor
Brand: Viair
SKU: 541146896
Rating: 5.0 (39 reviews)

VIAIR’s 150 Industrial Grade compressor produces 1.37 CFM (12V) & 1.55 CFM (24V) with a 20% duty cycle and has a max operating pressure of 150 PSI, making it an ideal choice for those looking for a compact solution for light-duty applications. RoHS and REACH compliant and CE certified, the 150C IG is equipped with a stainless steel braided leader hose and check valve assembly that eliminates the possibility of high amperage starts.

Model:
150C-IG
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.37 CFM @ 0 PSI

38.79 LPM @ 0 PSI

Motor Voltage

12-Volt / 24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

20% @ 100 PSI

Maximum Working Pressure

150 PSI

10.34 BAR

Maximum Air Tank Size

1.0 Gallon

3.78 L

Maximum Current Consumption

15-Amps (PN 15010)

8-Amps (PN 15018)

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F

+70 ℃

Minimum Ambient Temperature

-40 °F

-40 ℃

In Rush Current

50.18-Amps @ 0 PSI (PN 15010)

37.09-Amps @ 0 PSI (PN 15018)

Sound Intensity Level

50.18 dB @ 0 PSI (PN 15010)

37.09 dB @ 0 PSI (PN 15018)

Dimensions

6.9″L x 3.3″W x 5.0″H

175.26mm (L)x83.82mm (W) x127mm (H)

Net Weight

4.1 lbs

3.06 kg

Features

Check Valve
Vibration Isolators
Mounting Hardware
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR

PSI	CFM	A	BAR	LPM	A
0	1.55	4.8	0	44	4.8
10	1.12	7.0	1.0	31	7.9
20	1.07	8.7	2.0	29	9.9
30	1.01	10.0	3.0	27	11.1
40	0.97	10.9	4.0	25	11.7
50	0.92	11.5	5.0	23	12.4
60	0.86	11.9	6.0	20	12.8
70	0.82	12.3	7.0	19	13.0
80	0.77	12.7	8.0	16	13.1
90	0.69	12.9	9.0	14	13.2
100	0.66	13.0	10.0	13	13.1
110	0.61	13.1
120	0.54	13.1
130	0.51	13.2
140	0.47	13.1
150	0.41	13.0

24-VOLT COMPRESSOR

PSI	CFM	A	BAR	LPM	A
0	1.62	2.4	0	46	2.4
10	1.34	3.4	1.0	36	3.9
20	1.24	4.1	2.0	32	4.5
30	1.14	4.7	3.0	30	5.4
40	1.08	5.2	4.0	27	5.8
50	1.01	5.6	5.0	25	6.1
60	0.95	5.9	6.0	23	6.5
70	0.89	6.1	7.0	22	6.6
80	0.86	6.3	8.0	20	6.7
90	0.82	6.5	9.0	18	6.8
100	0.78	6.6	10.0	15	6.9
110	0.74	6.7
120	0.68	6.7
130	0.62	6.8
140	0.58	6.9
150	0.52	6.9

Fill Rates

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	37 seconds (± 05 seconds)
85 to 105 PSI	10 seconds (± 03 seconds)
0 to 145 PSI	1 minute 00 seconds (± 05 seconds)
110 to 145 PSI	20 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 10 seconds (± 10 seconds)
85 to 105 PSI	20 seconds (± 05 seconds)
0 to 145 PSI	1 minute 55 seconds (± 10 seconds)
110 to 145 PSI	40 seconds (± 05 seconds)

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	32 seconds (± 05 seconds)
85 to 105 PSI	07 seconds (± 03 seconds)
0 to 145 PSI	52 seconds (± 05 seconds)
110 to 145 PSI	17 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 00 second (± 10 seconds)
85 to 105 PSI	14 seconds (± 05 seconds)
0 to 145 PSI	1 minute 40 seconds (± 10 seconds)
110 to 145 PSI	35 seconds (± 05 seconds)
