250C-IG | Viair IG-Series Air Compressor

Name: 250C-IG | Viair IG-Series Air Compressor
Brand: Viair
SKU: 581840996
Rating: 5.0 (41 reviews)

The 250 IG air compressors are medium-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation. They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. Available in 12V or 24V.

Model:
250C-IG
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

0.88 CFM @ 0 PSI (0 BAR)

22.65 LPM @ 0 PSI (0 BAR)

Motor Voltage

12-Volt

24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 100 PSI (6.89 BAR)

Maximum Working Pressure

150 PSI (1)

10.34 BAR (1)

Maximum Air Tank Size

2.5 Gallon (1)

9.46 L (1)

Maximum Current Consumption

11-Amps (PN 25050)

6-Amps (PN 25058)

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 ℃ (1)

Minimum Ambient Temperature

-40 °F (1)

-40 ℃ (1)

In Rush Current

63.7-Amps @ 0 PSI (PN 25050)

48.36-Amps @ 0 PSI (PN 25058)

Sound Intensity Level

68.8 dB @ 0 PSI (PN 25050)

48.36 dB @ 0 PSI (PN 25058)

Dimensions

7.4″L x 3.9″W x 6.75″H

187.96mm (L)x99.06mm (W) x171.45mm (H)

Net Weight

6.75 lbs (1)

3.06 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

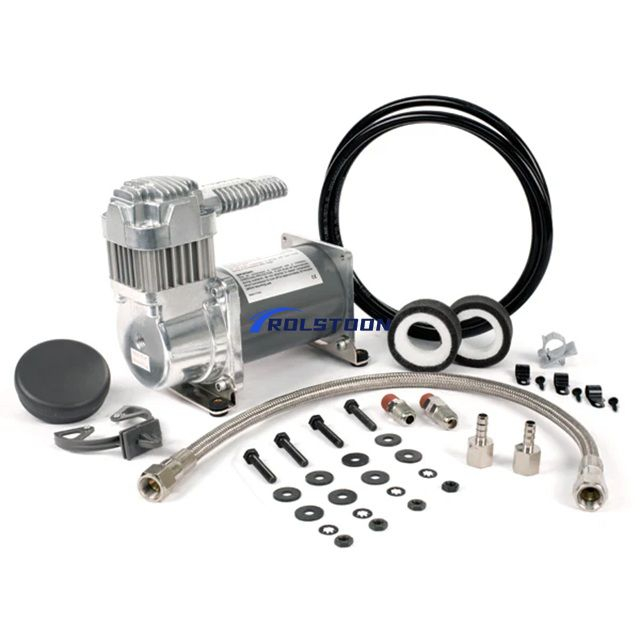

Features

Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	0.88	6
10	0.81	7
20	0.78	7
30	0.73	8
40	0.67	9
50	0.65	9
60	0.60	10
70	0.55	10
80	0.52	10
90	0.49	10
100	0.45	11
110	0.41	11
120	0.39	11
130	0.36	11
140	0.32	11
150	0.29	10

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	25.0	6
1.0	22.6	7
2.0	21.0	8
3.0	19.0	9
4.0	17.3	10
5.0	15.4	10
6.0	14.2	11
7.0	12.5	11
8.0	11.3	11
9.0	10.3	11
10.0	8.7	11

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.00	3
10	0.88	3
20	0.84	4
30	0.78	4
40	0.71	4
50	0.67	5
60	0.61	5
70	0.58	5
80	0.54	5
90	0.51	5
100	0.47	6
110	0.44	6
120	0.40	6
130	0.36	5
140	0.33	5
150	0.29	5

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	28.3	3
1.0	24.4	3
2.0	22.2	4
3.0	19.7	4
4.0	17.7	5
5.0	16.1	5
6.0	14.6	5
7.0	13.2	6
8.0	11.7	5
9.0	10.3	5
10.0	8.8	5

Fill Rates

12-VOLT COMPRESSOR

1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 50 seconds (± 10 seconds)
85 to 105 PSI	27 seconds (± 05 seconds)
0 to 145 PSI	2 minutes 45 seconds (± 10 seconds)
110 to 145 PSI	1 minute 05 seconds (± 05 seconds)
2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	4 minutes 45 seconds (± 10 seconds)
85 to 105 PSI	1 minutes 05 seconds (± 05 seconds)
0 to 145 PSI	7 minutes 05 seconds (± 15 seconds)
110 to 145 PSI	2 minutes 35 seconds (± 10 seconds)

24-VOLT COMPRESSOR

1.0 GALLONS TANK	FILL RATE
0 to 105 PSI	1 minute 45 seconds (± 10 seconds)
85 to 105 PSI	26 seconds (± 05 seconds)
0 to 145 PSI	2 minutes 45 seconds (± 10 seconds)
110 to 145 PSI	55 seconds (± 05 seconds)
2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	4 minutes 15 seconds (± 10 seconds)
85 to 105 PSI	1 minute 00 seconds (± 05 seconds)
0 to 145 PSI	7 minutes 00 second (± 15 seconds)
110 to 145 PSI	2 minutes 15 seconds (± 10 seconds)
