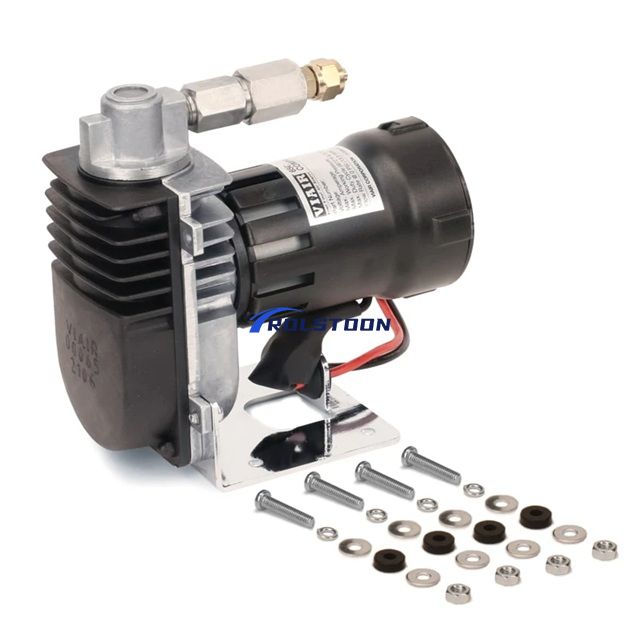

65C | Viair C-Models Air Compressor

Name: 65C | Viair C-Models Air Compressor
Brand: Viair
Rating: 5.0 (13 reviews)

The 65C is a geared, light-duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, has a max working pressure of 90 PSI and comes equipped with a check valve. Mounting hardware is included.

Model:
65C
Brand:
Viair
Code:
00065

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 90 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.15 @ 0 PSI

32.56 LPM @ 0 PSI

Motor Voltage

12-Volt

Motor Type

Gear Driven

Duty Cycle

15% @ 90 PSI

Maximum Working Pressure

90 PSI

6.2 BAR

Maximum Air Tank Size

1.0 Gallon

3.78 L

Maximum Current Consumption

10-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

56-Amps @ 0 PSI

Sound Intensity Level

80 dB @ 0 PSI

Dimensions

5″L x 2.9″W x 4.8″H

127mm (L) x73.66mm (W) x121.92mm (H)

Net Weight

1.6 lbs

0.73 kg

Features

Check Valve
Compression Fitting for 1/4″ Airline (Pre-installed)
Vibration Isolators
Mounting Hardware
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.15	6	0	33.0	6
10	0.59	7	1.0	17.0	7
20	0.55	8	2.0	15.0	8
30	0.52	8	3.0	13.0	9
40	0.48	9	4.0	12.0	9
50	0.45	9	5.0	10.0	9
60	0.41	9
70	0.38	9
80	0.33	10

Fill Rates

0.5 GALLON TANK	FILL RATE
0 to 80 PSI	50 seconds (± 05 seconds)
45 to 80 PSI	23 seconds (± 03 seconds)
55 to 80 PSI	19 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 80 PSI	1 minute 28 seconds (± 05 seconds)
45 to 80 PSI	36 seconds (± 03 seconds)
55 to 80 PSI	33 seconds (± 05 seconds)
