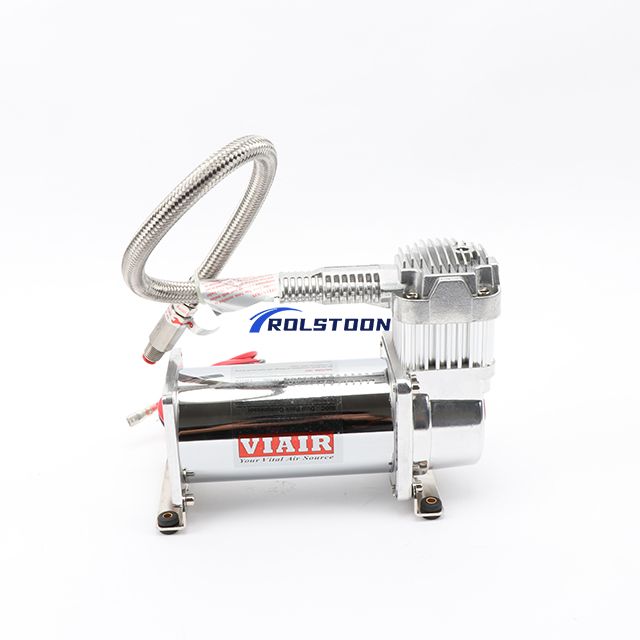

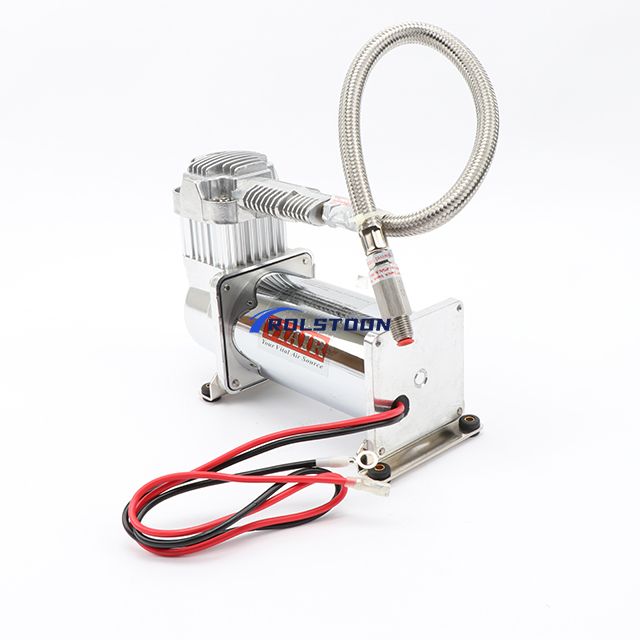

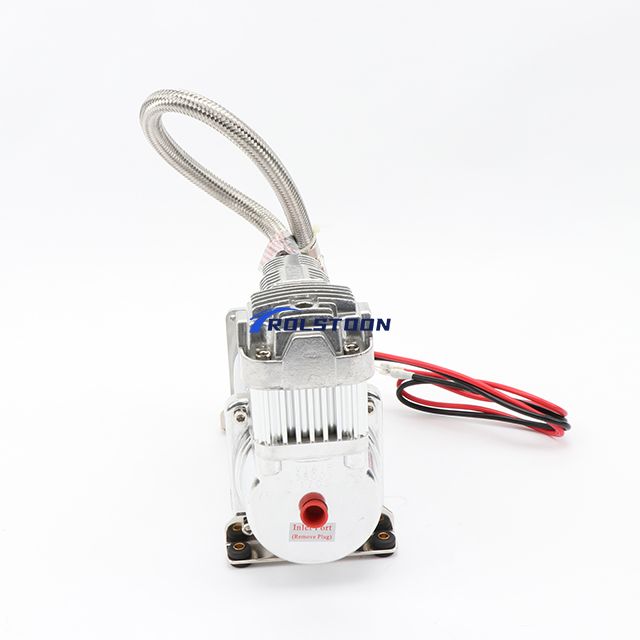

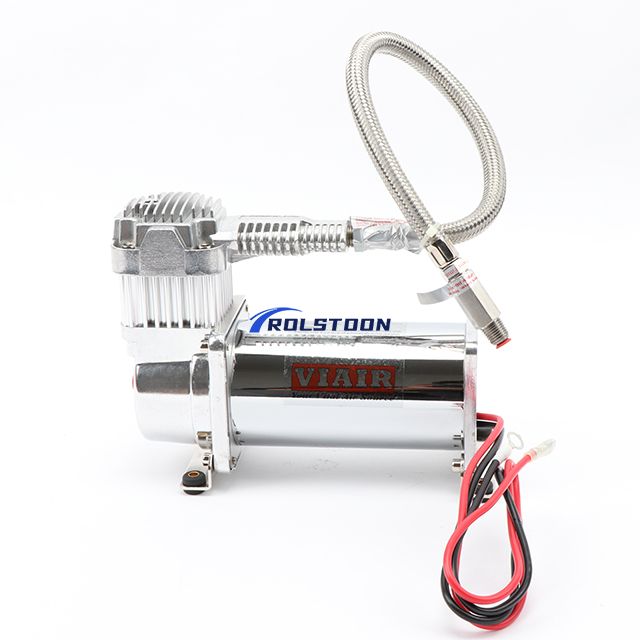

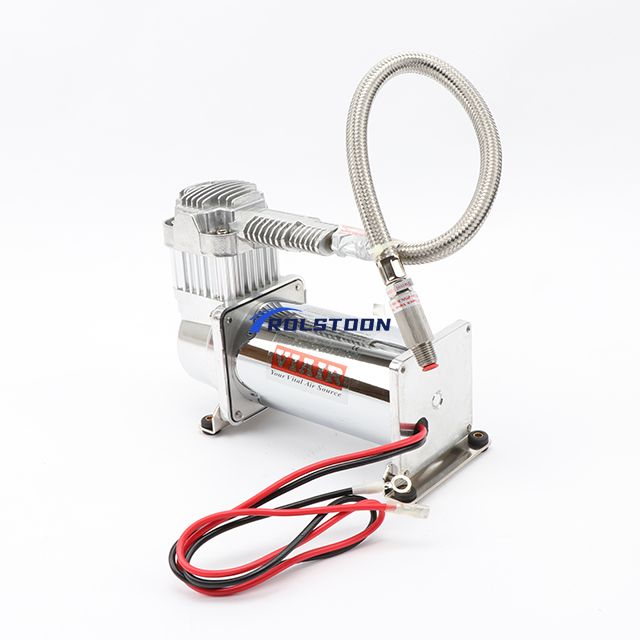

380C
Viair
38033
| SKU: | |
|---|---|
| Availability: | |
| Quantity: | |

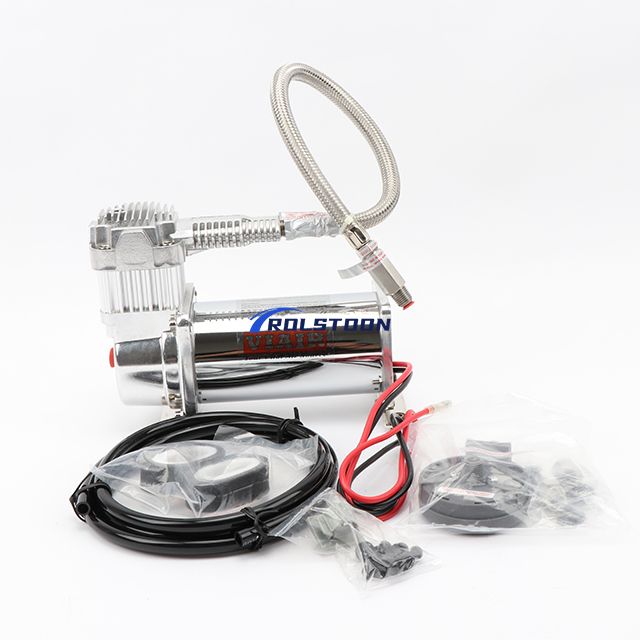

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.58 | 12 | 0 | 44.7 | 12 |
| 10 | 1.45 | 13 | 1.0 | 38.1 | 13 |
| 20 | 1.22 | 14 | 2.0 | 33.3 | 15 |
| 30 | 1.17 | 15 | 3.0 | 30.6 | 16 |
| 40 | 1.09 | 16 | 4.0 | 29.1 | 17 |
| 50 | 1.06 | 17 | 5.0 | 27.1 | 18 |
| 60 | 1.02 | 17 | 6.0 | 25.3 | 19 |
| 70 | 0.97 | 18 | 7.0 | 24.0 | 20 |
| 80 | 0.92 | 18 | 8.0 | 22.4 | 21 |
| 90 | 0.88 | 19 | 9.0 | 21.0 | 23 |
| 100 | 0.85 | 20 | 10.0 | 19.5 | 21 |
| 110 | 0.81 | 21 | 11.0 | 18.2 | 20 |
| 120 | 0.78 | 22 | 12.0 | 16.7 | 19 |
| 130 | 0.74 | 23 | 13.0 | 15.2 | 19 |
| 140 | 0.71 | 21 | 14.0 | 13.5 | 18 |
| 150 | 0.67 | 20 | |||
| 160 | 0.64 | 20 | |||
| 170 | 0.60 | 19 | |||
| 180 | 0.57 | 19 | |||
| 190 | 0.53 | 19 | |||
| 200 | 0.49 | 18 |
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 minute 30 seconds (± 10 seconds) |
| 110 to 145 PSI | 1 minute 10 seconds (± 05 seconds) |
| 0 to 200 PSI | 6 minute 05 seconds (± 15 seconds) |
| 165 to 200 PSI | 1 minute 40 seconds (± 05 seconds) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 7 minute 20 seconds (± 15 seconds) |
| 110 to 145 PSI | 2 minute 25 seconds (± 05 seconds) |
| 0 to 200 PSI | 13 minute 25 seconds (± 15 seconds) |
| 165 to 200 PSI | 3 minute 39 seconds (± 10 seconds) |
