330C-HG | Viair HG-Series Air Compressor

330C-HG | Viair HG-Series Air Compressor

Name: 330C-HG | Viair HG-Series Air Compressor
Brand: Viair
SKU: 179590186
Rating: 5.0 (27 reviews)

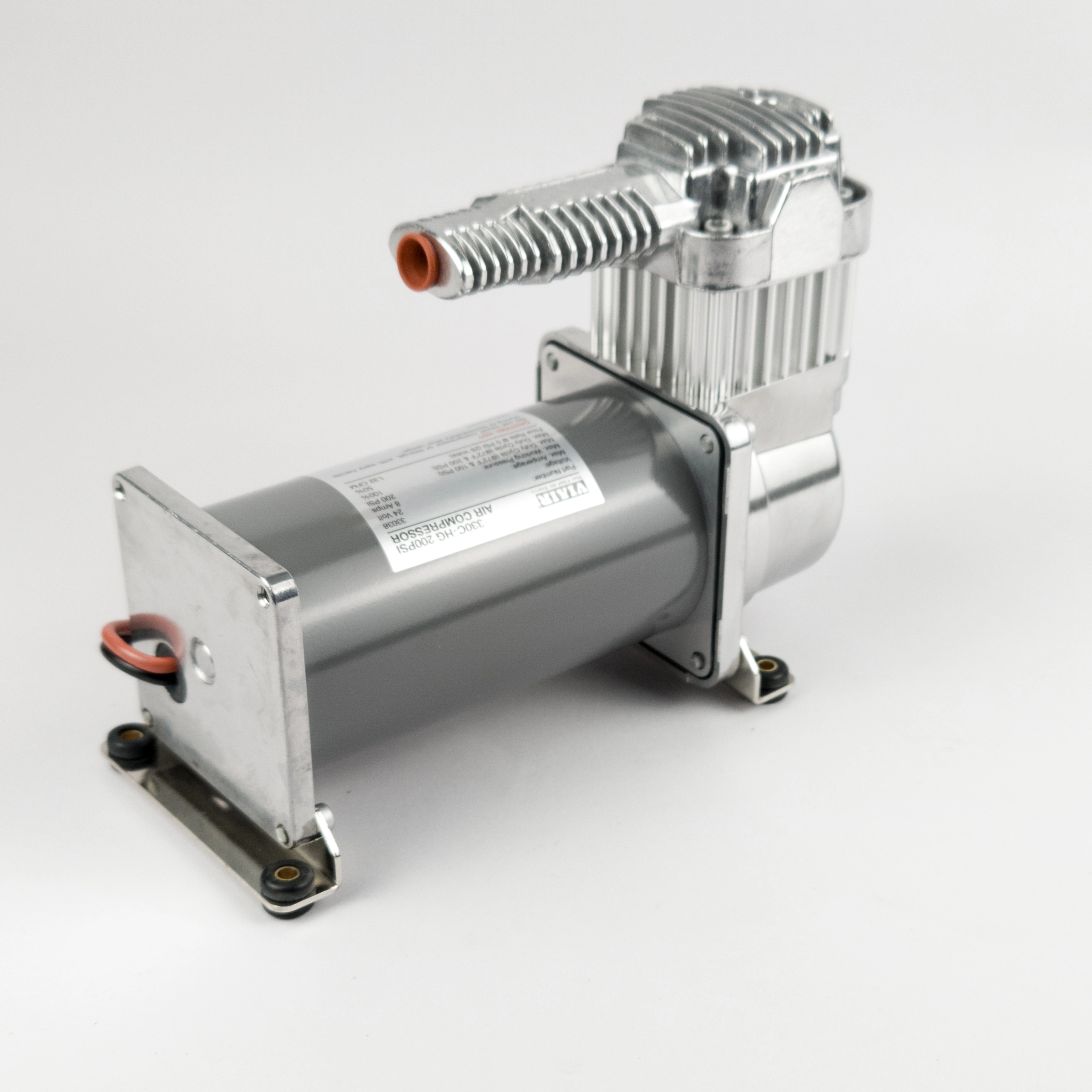

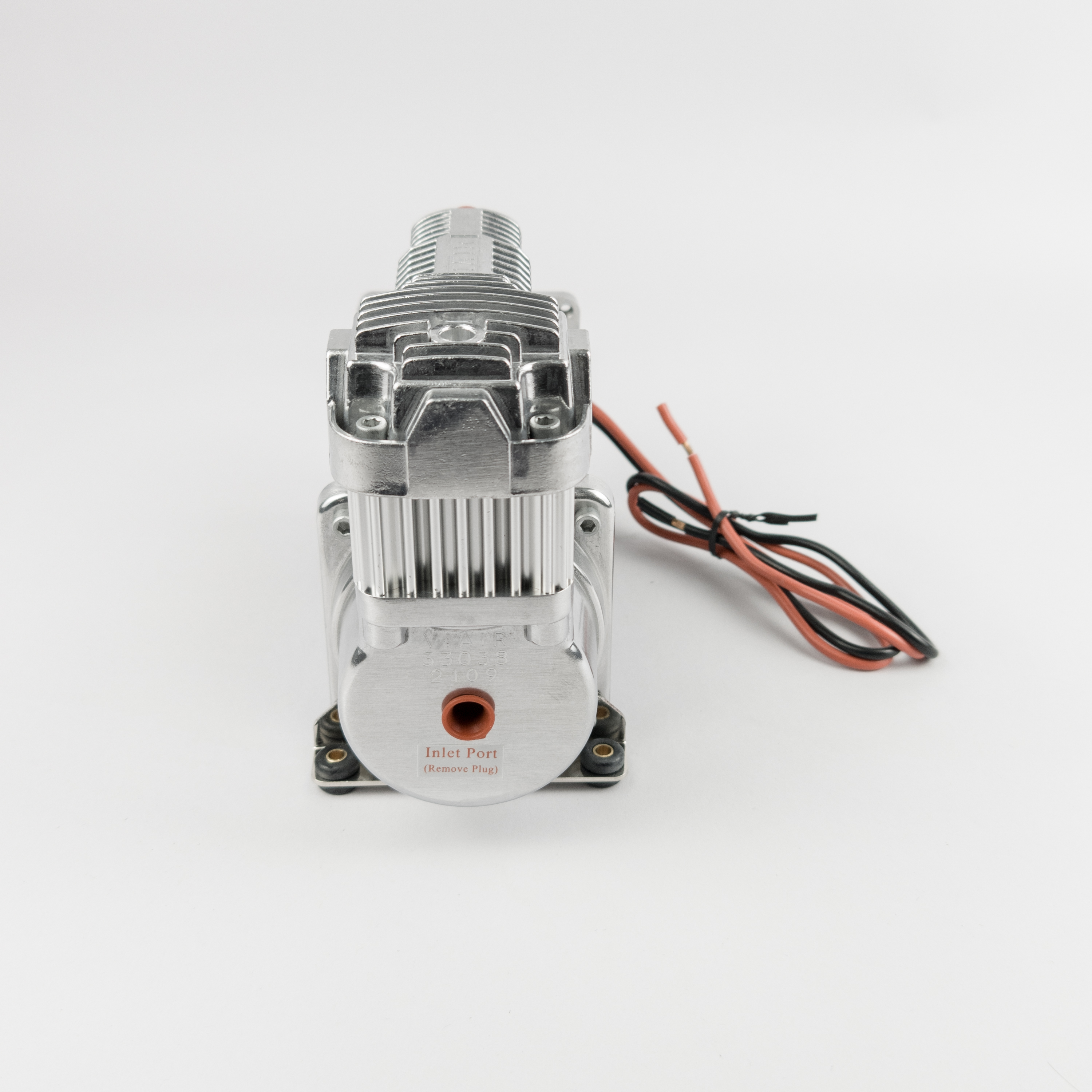

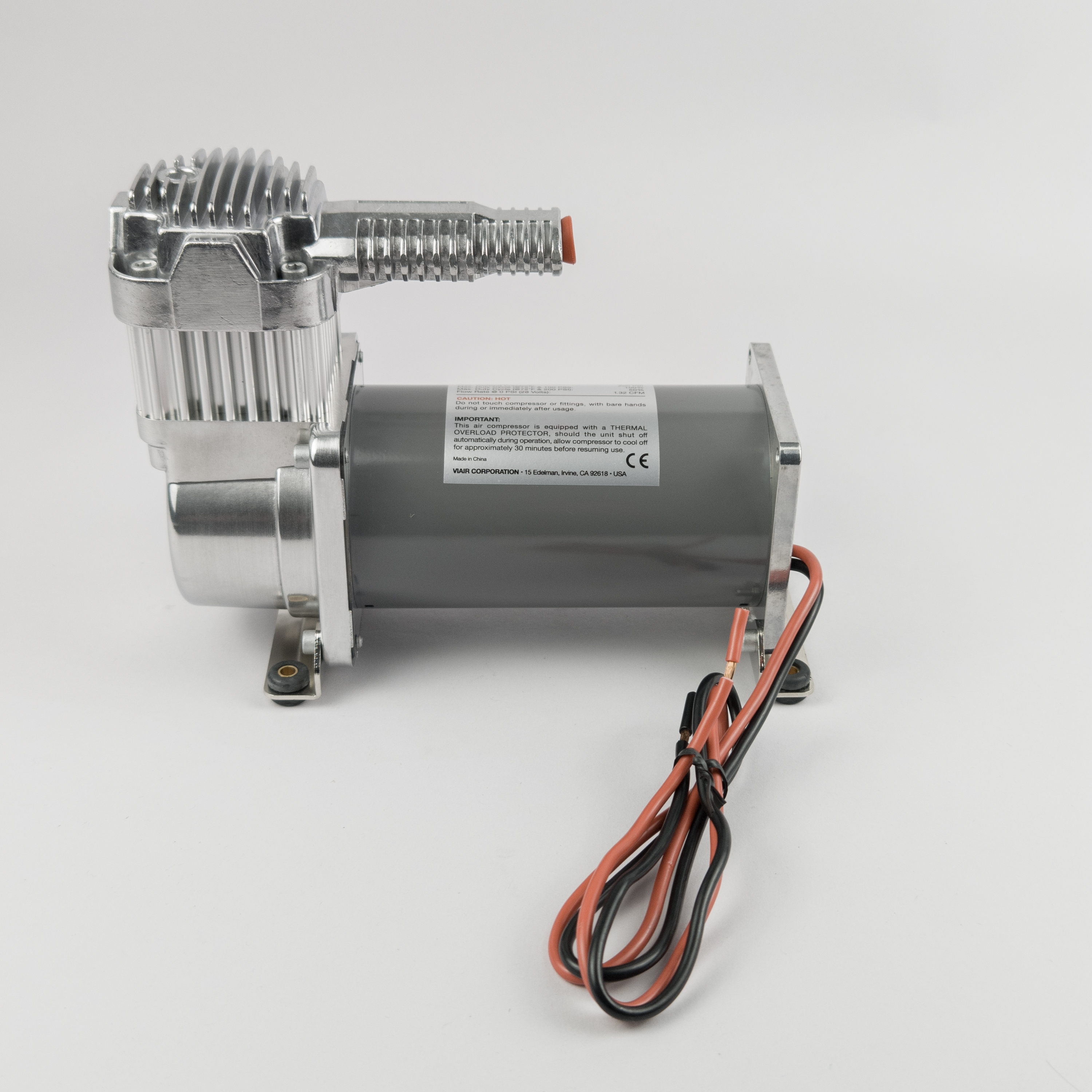

The 330 Hyper Grade air compressors are medium-duty, 200 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation. They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. Available in 12V or 24V.

Model:
330C-HG
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 200 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.09 CFM @ 0 PSI (PN 33035)

31 LPM @ 0 PSI (PN 33035)

1.27 CFM @ 0 PSI (PN 33038)

36 LPM @ 0 PSI (PN 33038)

Motor Voltage

12-Volt

24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 100 PSI (6.89 BAR)

50% @ 200 PSI (13.8 BAR)

Maximum Working Pressure

200 PSI (1)

13.79 BAR (1)

Maximum Air Tank Size

5.0 Gallon (1)

18.93 L (1)

Maximum Current Consumption

13-Amps (PN 33035)

10-Amps(PN 33038)

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

76.36-Amps @ 0 PSI (PN 33035)

41.6-Amps @ 0 PSI (PN 33038)

Sound Intensity Level

81.3 dB @ 0 PSI (PN 33035)

74.2 dB @ 0 PSI (PN 33038)

Dimensions

9″L x 4″W x 6.75″H

228.6 mm （L）x 100 mm（W） x 171.5 mm（H）

Net Weight

8.25 lbs (1)

3.74 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

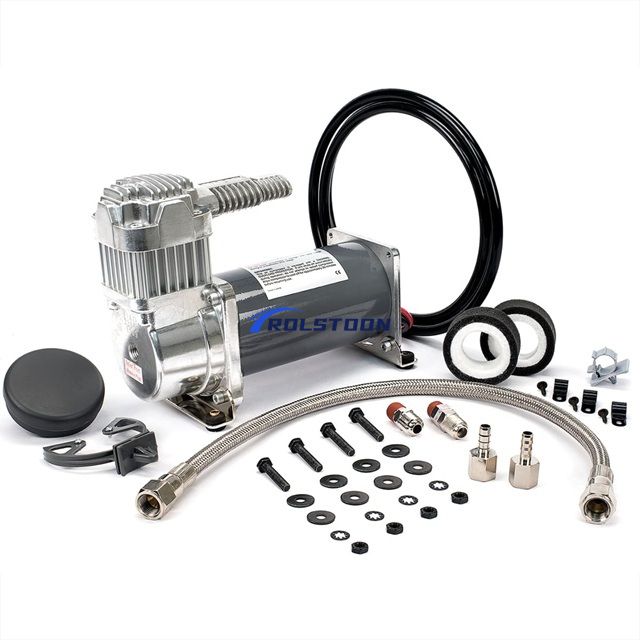

Features

Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided
PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.09	7.5
10	0.99	8.3
20	0.88	9.3
30	0.85	10.0
40	0.81	10.6
50	0.78	11.1
60	0.74	11.5
70	0.72	11.7
80	0.71	12.0
90	0.67	12.1
100	0.64	12.2
110	0.58	12.3
120	0.55	12.2
130	0.51	12.2
140	0.48	12.2
150	0.48	12.1
160	0.44	12.1
170	0.41	12.0
180	0.37	11.9
190	0.35	11.7
200	0.34	11.6

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	31	7.5
1.0	27	8.7
2.0	24	9.9
3.0	23	10.8
4.0	21.5	11.4
5.0	20.5	11.9
6.0	19	12.1
7.0	18	12.2
8.0	15.5	12.2
9.0	14.5	12.2
10.0	13.5	12.1
11.0	12.5	12.1
12.0	11.5	11.9
13.0	10	11.7
14.0	9.5	11.6

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.27	4.4
10	1.22	4.9
20	1.13	5.5
30	1.06	5.9
40	1.02	6.1
50	1.01	6.5
60	0.95	6.7
70	0.90	6.9
80	0.87	7.0
90	0.83	7.1
100	0.79	7.1
110	0.72	7.2
120	0.69	7.2
130	0.67	7.2
140	0.64	7.3
150	0.60	7.3
160	0.55	7.4
170	0.51	7.4
180	0.49	7.2
190	0.46	7.2
200	0.44	7.1

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	36	4.4
1.0	33	5.1
2.0	31	5.8
3.0	29	6.4
4.0	27.5	6.6
5.0	25.5	7.0
6.0	24	7.1
7.0	22.5	7.1
8.0	20	7.2
9.0	19	7.2
10.0	17	7.3
11.0	15.5	7.4
12.0	14.5	7.3
13.0	13	7.2
14.0	12	7.1

Fill Rates

12-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 145 PSI	5 minutes 19 seconds (± 15 seconds)
110 to 145 PSI	1 minute 48 sec. (± 10 seconds)
0 to 200 PSI	9 minutes 14 seconds (± 15 seconds)
165 to 200 PSI	2 minutes 46 seconds (± 10 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 145 PSI	10 minutes 37 seconds (± 15 seconds)
110 to 145 PSI	3 minutes 22 seconds (± 10 seconds)
0 to 200 PSI	18 minutes 08 seconds (± 15 seconds)
165 to 200 PSI	5 minutes 18 seconds (± 10 seconds)

24-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 145 PSI	4 minutes 20 seconds (± 15 seconds)
110 to 145 PSI	1 minute 28 seconds (± 10 seconds)
0 to 200 PSI	7 minutes 02 seconds (± 15 seconds)
165 to 200 PSI	1 minute 55 seconds (± 10 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 145 PSI	8 minutes 54 seconds (± 15 seconds)
110 to 145 PSI	2 minutes 55 seconds (± 10 seconds)
0 to 200 PSI	14 minutes 45 seconds (± 15 seconds)
165 to 200 PSI	4 minutes 01 seconds (± 10 seconds)
