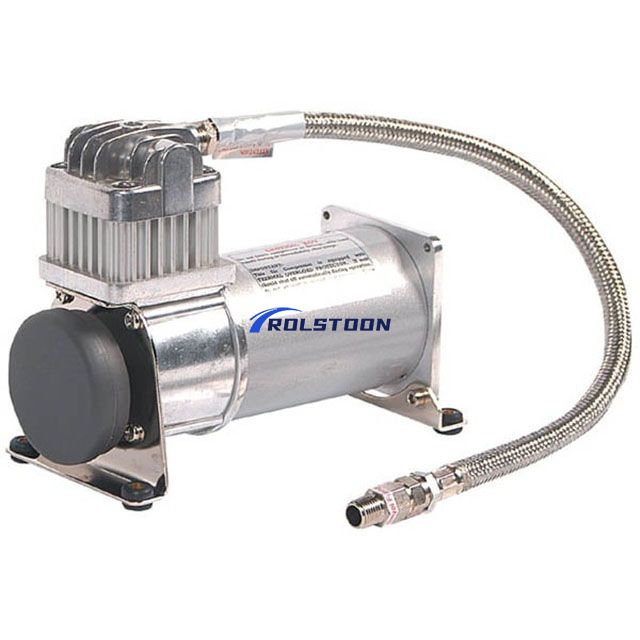

280C | Viair C-Models Air Compressor

Name: 280C | Viair C-Models Air Compressor
Brand: Viair
Rating: 5.0 (49 reviews)

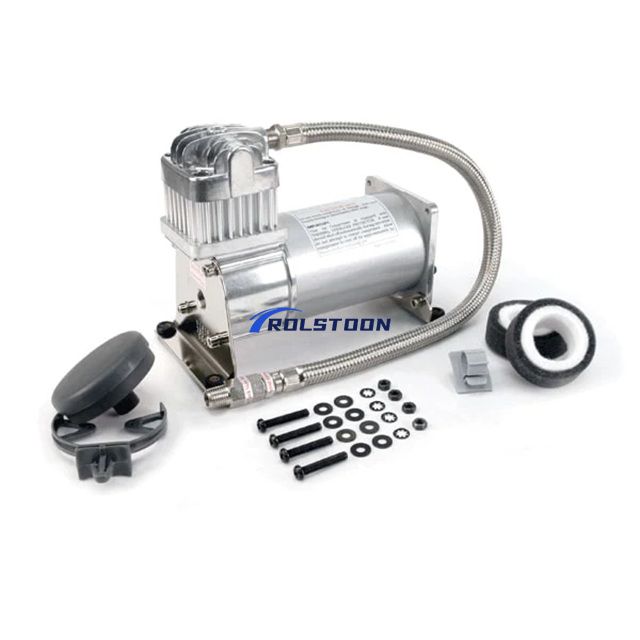

The 280C air compressor has a max run time of 20 minutes and comes equipped with a stainless steel braided leader hose, check valve and remote air filter assembly. Mounting hardware is included.

Model:
280C
Brand:
Viair

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.59 CFM @ 0 PSI (0 BAR)

45.02 LPM @ 0 PSI (0 BAR)

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

30% @ 100 PSI (6.89 BAR)

Maximum Working Pressure

150 PSI (1)

10.34 BAR (1)

Maximum Air Tank Size

2.5 Gallon (1)

9.46 L (1)

Maximum Current Consumption

19-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

136-Amps @ 0 PSI (0 BAR)

Sound Intensity Level

76.4 dB @ 0 PSI (0 BAR)

Dimensions

7.8″L x 3.95″W x 6.35″H

198.1 mm (L)x100.3 mm (W) x 161.3 mm (H)

Net Weight

6.95 lbs (1)

3.15 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Direct Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.59	10
10	1.49	12
20	1.33	13
30	1.11	14
40	1.04	15
50	0.99	15
60	0.92	16
70	0.87	16
80	0.81	17
90	0.76	17
100	0.74	19
110	0.71	19
120	0.67	18
130	0.62	17
140	0.57	17
150	0.51	17

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	45.0	10
1.0	40.2	13
2.0	32.1	14
3.0	29.0	15
4.0	26.4	16
5.0	24.2	16
6.0	22.0	17
7.0	21.0	19
8.0	19.4	18
9.0	17.5	17
10.0	15.3	17

Fill Rates

1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 10 seconds (± 05 seconds)
85 to 105 PSI	20 seconds (± 03 seconds)
0 to 145 PSI	1 minute 40 seconds (± 05 seconds)
110 to 145 PSI	35 seconds (± 03 seconds)
2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	2 minutes 35 seconds (± 10 seconds)
85 to 105 PSI	44 seconds (± 05 seconds)
0 to 145 PSI	4 minutes 30 seconds (± 10 seconds)
110 to 145 PSI	1 minute 36 seconds (± 05 seconds)
