96C-IG | Viair IG-Series Air Compressor

Name: 96C-IG | Viair IG-Series Air Compressor
Brand: Viair
SKU: 589623896
Rating: 5.0 (44 reviews)

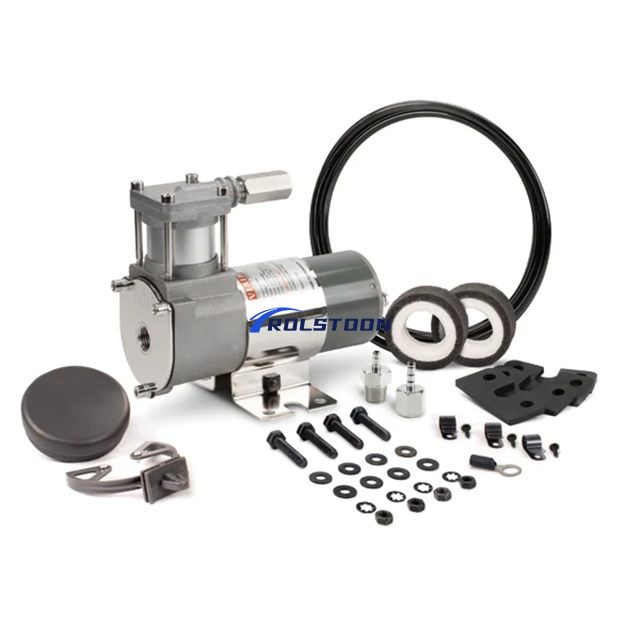

The 96C-IG compressor offers a light-duty solution for small air requirements. Designed to fill no larger than a 1.0-gallon air tank, it features an adjustable Omega bracket for easy mounting in tight spaces, an air filter relocation kit to allow unrestricted airflow, and an inline check valve that protects against high amperage restart. The 96C-IG compressors are CE Certified, RoHS/Reach Compliant and feature an IP54 protection rating.

Model:
96C-IG
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 130 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.65 CFM @ 0 PSI (PN 00096)

1.77 CFM @ 0 PSI (PN 02496)

47 LPM @ 0 PSI (PN 00096)

50 LPM @ 0 PSI (PN 02496)

Motor Voltage

12-Volt / 24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

10% @ 100 PSI

Maximum Working Pressure

130 PSI

8.96 BAR

Maximum Air Tank Size

1.0 Gallon

3.78 L

Maximum Current Consumption

13-Amps (PN 00096)

8-Amps (PN 02496)

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 ℃

Minimum Ambient Temperature

-40 °F

-40 ℃

In Rush Current

52-Amps @ 0 PSI (PN 00096)

45.09-Amps @ 0 PSI (PN 02496)

Sound Intensity Level

77.2 dB @ 0 PSI (PN 00096

66.9 dB @ 0 PSI (PN 02496)

Dimensions

5.6″L x 2.2″W x 4.4″H

142.24mm (L)x55.88mm (W) x111.76mm (H)

Net Weight

2.25 lbs

1.02 kg

Features

Check Valve
Vibration Isolators
Mounting Hardware
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR

PSI	CFM	A	BAR	LPM	A
0	1.65	7.1	0	47	7.1
10	1.22	8.7	1.0	33	9.1
20	1.08	9.9	2.0	29	10.6
30	1.01	10.7	3.0	25	11.5
40	0.92	11.2	4.0	22	11.8
50	0.85	11.4	5.0	20	12.0
60	0.75	11.8	6.0	17	11.7
70	0.69	11.9	7.0	14	11.4
80	0.64	11.8	8.0	12	10.7
90	0.57	11.8	9.0	10	10.1
100	0.51	11.4
110	0.46	11.0
120	0.41	10.5
130	0.35	10.1

24-VOLT COMPRESSOR

PSI	CFM	A	BAR	LPM	A
0	1.77	4.5	0	50	4.5
10	1.41	5.2	1.0	37	5.6
20	1.25	5.9	2.0	32	6.2
30	1.14	6.3	3.0	29	6.7
40	1.06	6.6	4.0	25	6.7
50	0.97	6.8	5.0	23	6.7
60	0.89	6.9	6.0	19	6.5
70	0.81	6.7	7.0	16	6.2
80	0.73	6.6	8.0	13	5.9
90	0.64	6.5	9.0	11	5.6
100	0.57	6.2
110	0.49	6.0
120	0.45	5.8
130	0.40	5.6

Fill Rates

12-VOLT COMPRESSOR

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	50 seconds (± 05 seconds)
85 to 105 PSI	18 seconds (± 03 seconds)
0 to 120 PSI	1 minute 00 second (± 05 seconds)
90 to 120 PSI	35 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 30 seconds (± 10 seconds)
85 to 105 PSI	30 seconds (± 05 seconds)
0 to 120 PSI	1 minute 55 seconds (± 10 seconds)
90 to 120 PSI	45 seconds (± 05 seconds)

24-VOLT COMPRESSOR

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	40 seconds (± 05 seconds)
85 to 105 PSI	13 seconds (± 03 seconds)
0 to 120 PSI	55 seconds (± 05 seconds)
90 to 120 PSI	20 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 15 seconds (± 10 seconds)
85 to 105 PSI	25 seconds (± 05 seconds)
0 to 120 PSI	1 minute 40 seconds (± 10 seconds)
90 to 120 PSI	35 seconds (± 05 seconds)
