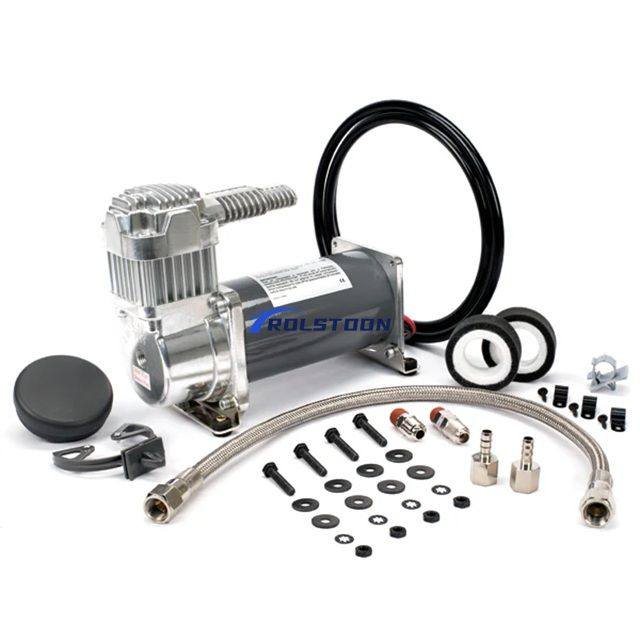

330C-IG | Viair IG-Series Air Compressor

Name: 330C-IG | Viair IG-Series Air Compressor
Brand: Viair
SKU: 520015007
Rating: 5.0 (95 reviews)

The 330C-IG air compressor can operate continuously for 30min at 200 PSI without exceeding a 16-amp or 9-amp power draw. It features a 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.

Model:
330C-IG
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 200 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.06 CFM @ 0 PSI (PN 33050)

30.0 LPM @ 0 PSI (PN 33050)

1.16 CFM @ 0 PSI (PN 33058)

33.0 LPM @ 0 PSI (PN 33058)

Motor Voltage

12-Volt

24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 100 PSI (6.89 BAR)

Maximum Working Pressure

150 PSI (1)

10.34 BAR (1)

Maximum Air Tank Size

5.0 Gallon (1)

18.93 L (1)

Maximum Current Consumption

16-Amps (PN 33050)

9-Amps (PN 33058)

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

76.36-Amps @ 0 PSI (PN 33050)

66.18-Amps @ 0 PSI (PN 33058)

Sound Intensity Level

81.3 dB @ 0 PSI (PN 33050)

71.2 dB @ 0 PSI (PN 33058)

Dimensions (1)

9″L x 4″W x 6.75″H

228.6 mm (L) x 100 mm (W)x 171.5 mm (H)

Net Weight

8.25 lbs (1)

3.74 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.06	7
10	1.00	8
20	0.90	9
30	0.85	10
40	0.76	10
50	0.72	11
60	0.69	11
70	0.65	12
80	0.64	12
90	0.62	12
100	0.60	13
110	0.57	13
120	0.53	14
130	0.51	15
140	0.48	16
150	0.44	15

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	30.0	7
1.0	27.0	8
2.0	24.2	10
3.0	21.1	10
4.0	19.7	11
5.0	18.3	12
6.0	17.7	12
7.0	17.0	13
8.0	15.5	14
9.0	14.4	15
10.0	13.0	16

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.16	4
10	1.05	5
20	0.95	5
30	0.88	6
40	0.81	6
50	0.78	6
60	0.74	7
70	0.71	7
80	0.69	7
90	0.66	7
100	0.63	8
110	0.60	8
120	0.57	9
130	0.53	9
140	0.49	8
150	0.46	8

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	33.0	4
1.0	28.5	5
2.0	25.1	6
3.0	22.6	6
4.0	21.2	7
5.0	20.0	7
6.0	19.0	7
7.0	17.7	8
8.0	16.5	9
9.0	15.0	9
10.0	13.5	8

Fill Rates

12-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	3 minutes 40 seconds (± 10 seconds)
85 to 105 PSI	50 seconds (± 05 seconds)
0 to 145 PSI	5 minutes 45 seconds (± 10 seconds)
110 to 145 PSI	1 minute 44 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 105 PSI	7 minutes 24 seconds (± 15 seconds)
85 to 105 PSI	1 minute 40 seconds (± 05 seconds)
0 to 145 PSI	12 minutes 12 seconds (± 15 seconds)
110 to 145 PSI	3 minutes 30 seconds (± 10 seconds)

24-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	3 minutes 09 seconds (± 10 seconds)
85 to 105 PSI	45 seconds (± 05 seconds)
0 to 145 PSI	5 minutes 00 second (± 10 seconds)
110 to 145 PSI	1 minute 31 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 105 PSI	6 minutes 20 seconds (± 10 seconds)
85 to 105 PSI	1 minute 26 seconds (± 05 seconds)
0 to 145 PSI	10 minutes 00 second (± 15 seconds)
110 to 145 PSI	3 minutes 12 seconds (± 10 seconds)
