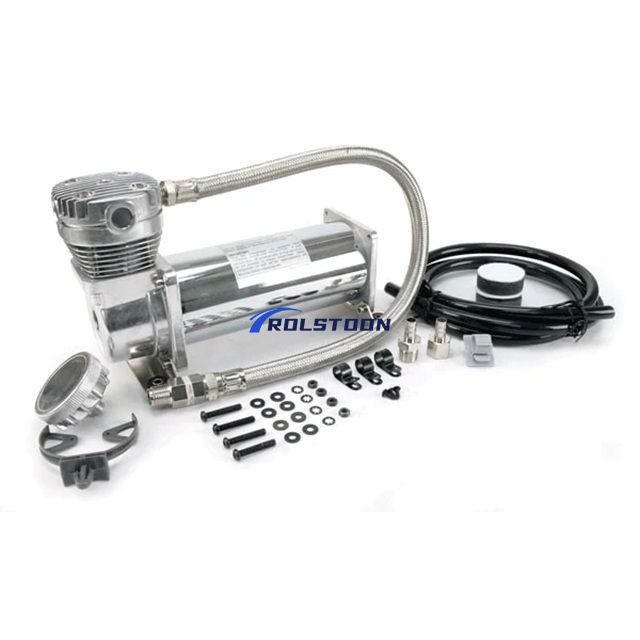

460C | Viair C-Models Air Compressor

Name: 460C | Viair C-Models Air Compressor
Brand: Viair
Rating: 5.0 (44 reviews)

The Viair's 460C is a continuous duty cycle air compressor, meaning it can run continuously for 1-hour before needing rest. Features include a standard 3/8” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Model:
460C
Brand:
Viair
Code:
46043

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.8 CFM @ 0 PSI (0 BAR)

51 LPM @ 0 PSI (0 BAR)

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 72 ºF (22.22 °C) & 100 PSI (6.89 BAR)

Maximum Working Pressure

150 PSI (1)

10.34 BAR (1)

Maximum Air Tank Size

5.0 Gallon (1)

18.93 L (1)

Maximum Current Consumption

24-Amps

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

83.2-Amps @ 0 PSI (0 BAR)

Sound Intensity Level

67.4 dB @ 0 PSI (0 BAR)

Dimensions (1)

11.5″L x 4.3″W x 6.5″H

292.1mm (L) x109.22mm (W) x165.1mm (H)

Net Weight

11.1 lbs (1)

5.04 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

Thermal Overload Protector.

Check Valve.

Vibration Isolators.

Mounting Hardware.

Stainless Steel Braided Leader Hose.

Air Line for Remote Mount Air Filter.

Remote Mount Air Filter Assembly.

(2) Replacement Air Filter Elements.

Installation Instruction.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.80	13
10	1.75	14
20	1.60	16
30	1.52	17
40	1.39	19
50	1.27	20
60	1.18	21
70	1.09	21
80	1.04	22
90	0.97	22
100	0.94	23
110	0.90	24
120	0.86	24
130	0.81	23
140	0.76	22
150	0.72	22

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	51.0	12
1.0	47.6	15
2.0	43.3	17
3.0	38.2	19
4.0	34.0	21
5.0	30.5	21
6.0	28.1	22
7.0	26.4	23
8.0	25.0	24
9.0	23.0	23
10.0	21.0	22

Fill Rates

2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	1 minute 55 seconds (± 10 seconds)
85 to 105 PSI	28 seconds (± 05 seconds)
0 to 145 PSI	3 minutes 02 seconds (± 10 seconds)
110 to 145 PSI	59 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 105 PSI	4 minutes 00 seconds (± 10 seconds)
85 to 105 PSI	58 seconds (± 05 seconds)
0 to 145 PSI	6 minutes 25 seconds (± 15 seconds)
110 to 145 PSI	2 minutes 11 seconds (± 10 seconds)
