485C | Viair Dual Performance Value Pack

Name: 485C | Viair Dual Performance Value Pack
Brand: Viair
Rating: 5.0 (18 reviews)

The pinnacle of high-pressure performance. 485C's deliver unmatched tank fill rates, lower decibel levels and a whopping 1-hour max run time at 200PSI, making it the ultimate compressor for air suspension applications.

Model:
Dual 485C Value Pack
Brand:
Viair

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 200 PSI Air Compressor Air Pump

Specifications

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 200 PSI

Maximum Working Pressure

200 PSI

13.79 BAR

Maximum Air Tank Size

10 Gallon

37.85 L

Combined Maximum Current Consumption

46-Amps

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

93-Amps @ 0 PSI

Sound Intensity Level

73 dB @ 0 PSI

Dimensions

10.63″L x 4.1″W x 6.44″H

270mm (L) x104.14mm (W) x163.58mm (H)

Net Weight

22.10 lbs

10.02 kg

Features

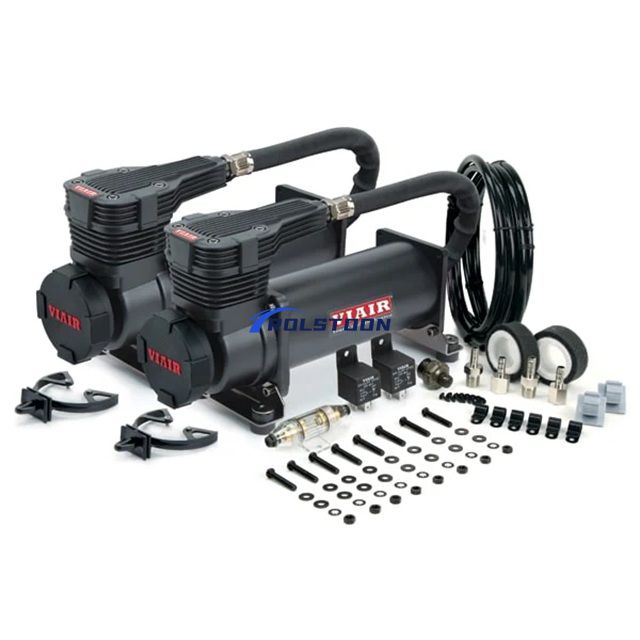

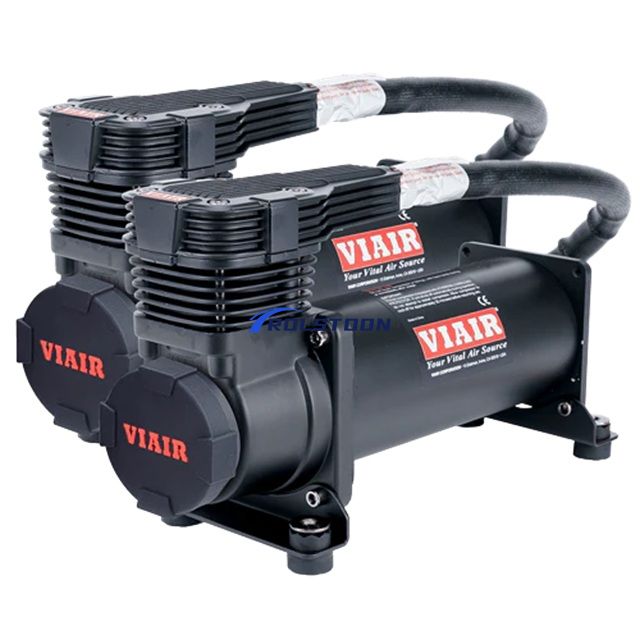

(2) 485C (Platinum or Stealth Black) Compressors, w/Thermal Overload Protectors

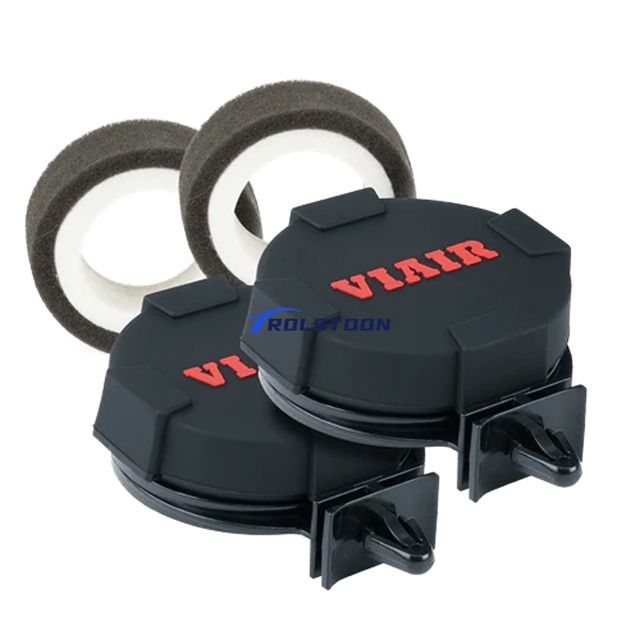

(2) Air Filter Assemblies
(2) VIAIR Removable Filter Covers
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
(2) 40-Amp Relays
(1) One Pressure Switch (165 PSI on, 200 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve

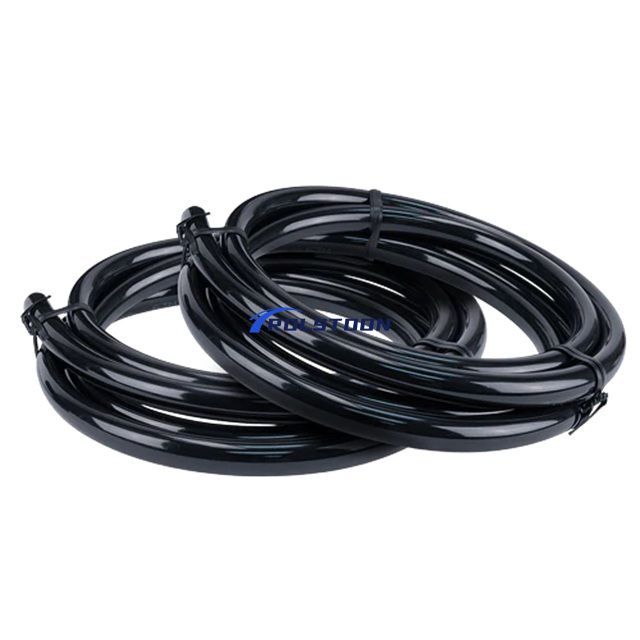

Air Line (For Remote Mount Filter Installation

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts - Tested with Check Valve

PSI	CFM	A	BAR	LPM	A
0	3.82	23	0	110.0	23
10	3.51	26	1.0	93.0	27
20	3.27	30	2.0	84.0	31
30	3.05	32	3.0	75.0	35
40	2.90	35	4.0	71.0	37
50	2.73	37	5.0	65.0	39
60	2.61	38	6.0	61.0	41
70	2.45	40	7.0	55.0	41
80	2.34	41	8.0	50.0	42
90	2.24	41	9.0	45.0	42
100	2.09	41	10.0	41.0	42
110	1.94	42	11.0	39.0	41
120	1.87	42	12.0	34.0	40
130	1.72	42	13.0	32.0	40
140	1.64	42	14.0	29.0	39
150	1.55	42
160	1.48	41
170	1.37	41
180	1.29	41
190	1.22	40
200	1.13	39

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts - Tested without Check Valve

PSI	CFM	A	BAR	LPM	A
0	3.92	22	0	111.0	22
10	3.64	25	1.0	100.0	27
20	3.39	28	2.0	91.0	31
30	3.21	31	3.0	80.0	35
40	2.93	34	4.0	73.0	37
50	2.75	36	5.0	67.0	39
60	2.58	37	6.0	60.0	39
70	2.40	38	7.0	56.0	40
80	2.22	39	8.0	50.0	40
90	2.08	40	9.0	46.0	39
100	1.98	40	10.0	40.0	39
110	1.91	40	11.0	36.0	38
120	1.73	40	12.0	33.0	37
130	1.62	39	13.0	30.0	35
140	1.45	39	14.0	28.0	34
150	1.38	38
160	1.27	38
170	1.20	37
180	1.17	37
190	1.06	35
200	0.99	35

Fill Rates

TANK FILL RATES

2.5 GALLON TANK	FILL RATE
0 to 200 PSI	2 minutes 20 seconds (± 10 seconds)
165 to 200 PSI	35 seconds (± 03 seconds)
5.0 GALLON TANK	FILL RATE
0 to 200 PSI	4 minutes 50 seconds (± 15 seconds)
165 to 200 PSI	1 minute 15 seconds (± 05 seconds)

seconds

Download

Wiring_Diagram_dualc-wd.pdf

Dimensional_Drawing_44432-44442_dd_R3-060820.pdf
