444C | Dual Performance Value Pack

Name: 444C | Dual Performance Value Pack
Brand: Viair
SKU: 530533007
Rating: 5.0 (83 reviews)

VIAIR's 444C compressor dual system offers unmatched durability, power, and performance for air suspension and other demanding applications. Reaching 100% duty cycle at 100 PSI, the 444C is a robust, powerful solution for air suspension systems, horns, truck and SUV tires, and more.

Model:
Dual 444C Value Pack
Brand:
Viair

Color:	Stealth Black Chrome
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 200 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

3.53 CFM @ 0 PSI

99.95 LPM @ 0 PSI

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 100 PSI

50% @ 200 PSI

Maximum Working Pressure

200 PSI (1)

13.78 BAR (1)

Maximum Air Tank Size

10.0 Gallon (1)

37.85 L (1)

Combined Maximum Current Consumption

46-Amps

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

92-Amps @ 0 PSI

Sound Intensity Level

75 dB @ 0 PSI

Dimensions

10.87″L x 4.2″W x 7.06″H

276.1 mm (L) x 106.68 mm (W) x 179.32 mm (H)

Net Weight

21.6 lbs (1)

9.8 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

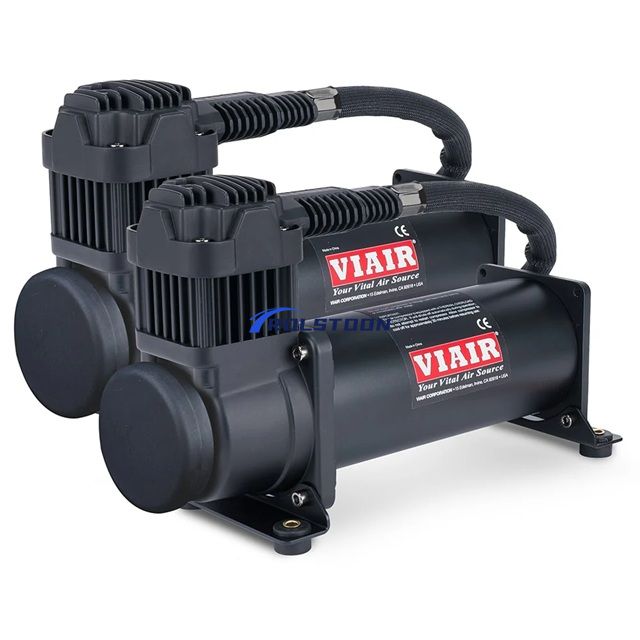

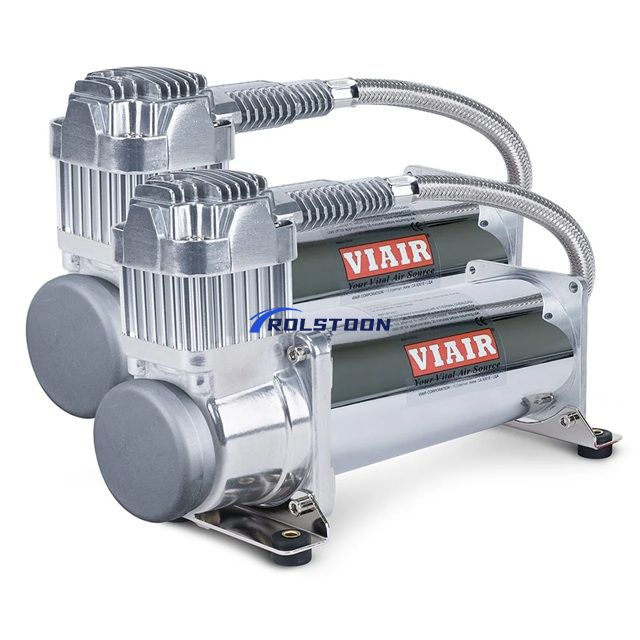

(2) 444C (Chrome or Stealth Black) Air Compressors w/Thermal Overload Protectors.

Intercooler Head (Patents Pending).

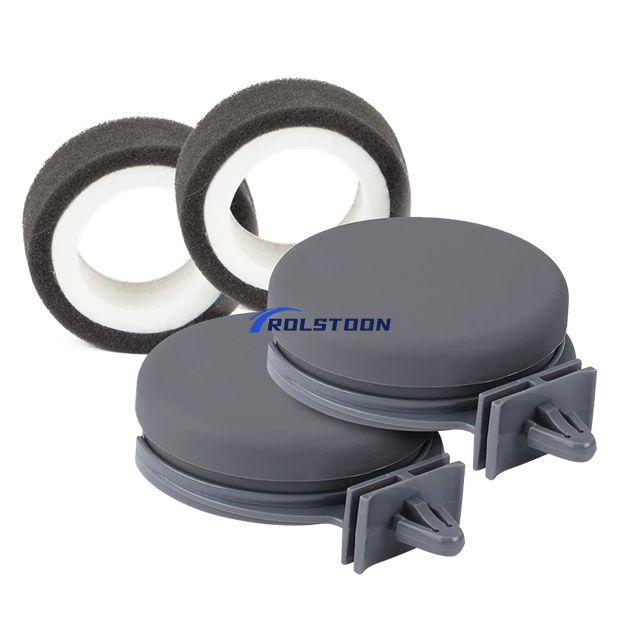

(2) Air Filter Assemblies.

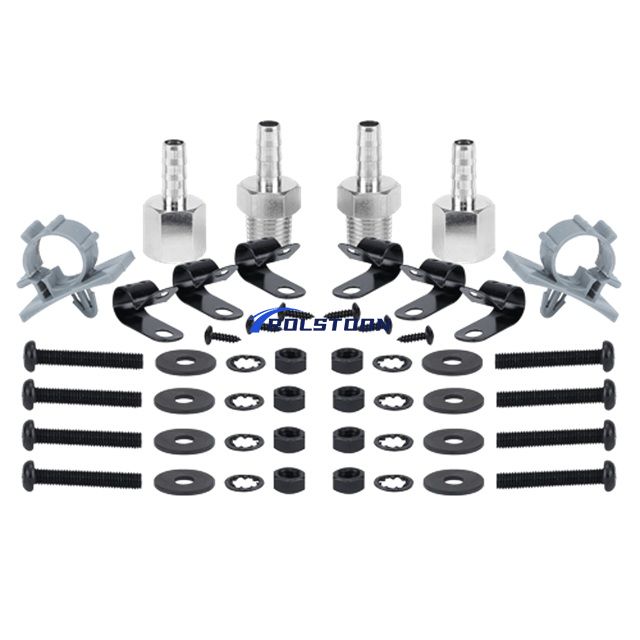

(2) Remote Mount Brackets.

(2) Sets of Remote Mount Fittings.

(2) Sets of Spare Air Filter Elements.

(8) Sets of Nuts, Bolts, Washers and Lock Washers.

(2) Stainless Steel Braided Leader Hoses with Inline Check Valve.

(6) Airline Clips with Included Hardwar.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	3.53	25
10	3.25	27
20	2.97	31
30	2.86	33
40	2.72	34
50	2.58	35
60	2.47	36
70	2.35	37
80	2.19	38
90	2.03	39
100	1.90	40
110	1.74	40
120	1.65	39
130	1.53	39
140	1.41	38
150	1.32	38
160	1.22	37
170	1.13	36
180	1.00	35
190	0.89	34
200	0.85	33

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	100.0	25
1.0	88.5	29
2.0	81.3	33
3.0	75.6	34
4.0	70.6	36
5.0	65.5	37
6.0	59.0	39
7.0	53.1	40
8.0	47.7	39
9.0	43.2	39
10.0	38.8	38
11.0	34.7	37
12.0	30.6	36
13.0	25.8	34
14.0	23.8	33

Fill Rates

2.5 GALLONS TANK	FILL RATE
0 to 200 PSI	2 minutes 30 seconds (± 10 seconds)
165 to 200 PSI	46 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 200 PSI	5 minutes 30 seconds (± 10 seconds)
165 to 200 PSI	1 minutes 35 seconds (± 05 seconds)
