450C | Viair Dual Performance Value Pack

Name: 450C | Viair Dual Performance Value Pack
Brand: Viair
SKU: 547979896
Rating: 5.0 (75 reviews)

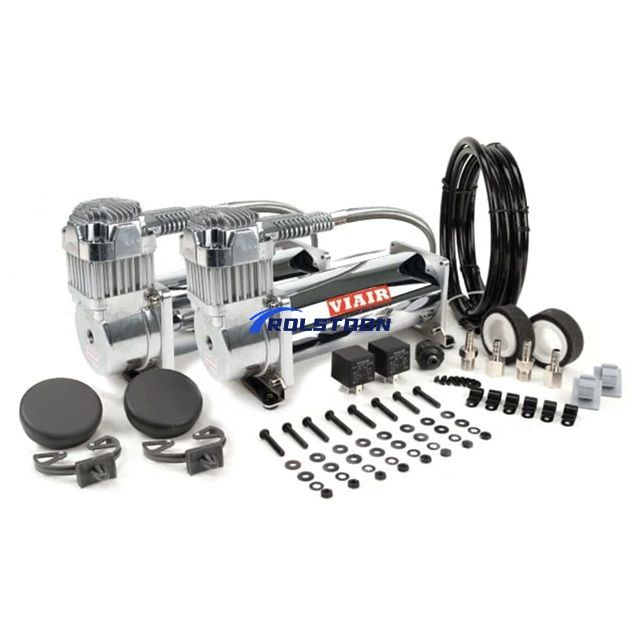

VIAIR's 450C Dual Performance Value Pack is the “workhorse” of our Dual Performance Value Packs product line. With a 100% duty cycle and up to 150 PSI, the 450C Dual kit provides high performance for any air suspension kit, industrial applications, air horns or off-road mobile pneumatic needs. The 450C Dual Performance Pack kit features two VIAIR 450C Silver or Chrome air compressors, two heavy duty 40-amp relays, an 110 PSI cut-on, 145 PSI cut-off pressure switch and remote mount filter assemblies with mounting hardware.

Model:
Dual 450C Value Pack
Brand:
Viair

Color:	Silver Chrome
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

3.28 CFM @ 0 PSI

92.87 LPM @ 0 PSI

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 100 PSI

Maximum Working Pressure

150 PSI

10.34 BAR

Maximum Air Tank Size

10.0 Gallon

37.85 L

Combined Maximum Current Consumption

46-Amps

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

86-Amps @ 0 PSI

Sound Intensity Level

75 dB @ 0 PSI

Dimensions

10.6″L x 4″W x 6.87″H

269.24 mm (L) x 101.6 mm (W) x 174.5 mm (H)

Net Weight

21.6 lbs

7.85 kg

Features

(2) 450C (Chrome or Silver) Air Compressors
w/Thermal Overload Protectors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	3.28	28	0	93.0	28
10	3.04	29	1.0	83.0	30
20	2.79	32	2.0	75.4	34
30	2.65	34	3.0	71.0	37
40	2.54	36	4.0	66.6	40
50	2.44	38	5.0	61.0	41
60	2.33	40	6.0	56.0	42
70	2.19	41	7.0	52.0	44
80	2.05	42	8.0	47.0	43
90	1.94	43	9.0	42.3	42
100	1.85	44	10.0	37.5	41
110	1.72	44
120	1.62	43
130	1.50	42
140	1.38	41
150	1.27	41

Fill Rates

2.0 GALLON TANK	FILL RATE
0 to 145 PSI	1 minute 13 seconds (± 05 seconds)
110 to 145 PSI	23 seconds (± 03 seconds)
2.5 GALLON TANK	FILL RATE
0 to 145 PSI	1 minute 30 seconds (± 05 seconds)
110 to 145 PSI	31 seconds (± 03 seconds)
5.0 GALLON TANK	FILL RATE
0 to 145 PSI	3 minute 10 seconds (± 10 seconds)
110 to 145 PSI	1 minute 05 seconds (± 05 seconds)

seconds

Download

User_Manual_40013_40048_45012_45013_Manual_R3-110521.pdf

Wiring_Diagram_dualc-wd.pdf

Dimensional_Drawing_45040-dd-R5-060820.pdf
