97C | Viair C-Models Air Compressor

Name: 97C | Viair C-Models Air Compressor
Brand: Viair
SKU: 526446896
Rating: 5.0 (21 reviews)

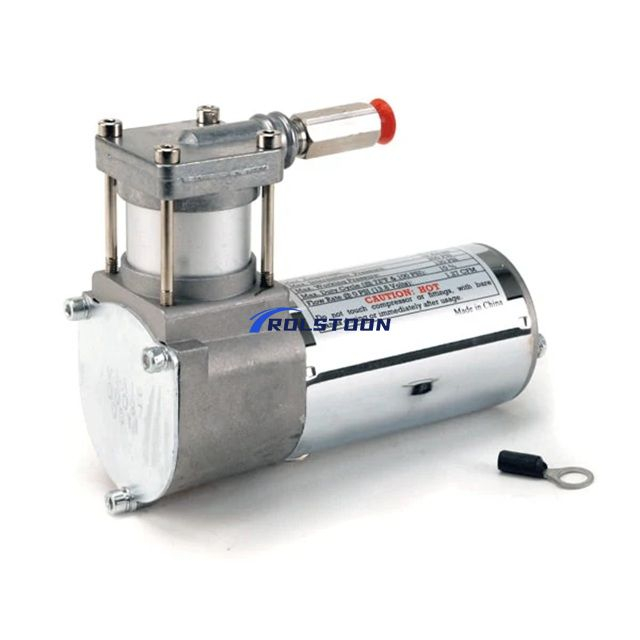

The 97C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, comes with a check valve and is available in 12 or 24-volt. No mounting hardware included.

Model:
97C
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 130 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.53 CFM @ 0 PSI

43.32 LPM @ 0 PSI

Motor Voltage

12-Volt / 24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

10% @ 100 PSI

Maximum Working Pressure

130 PSI

8.96 BAR

Maximum Air Tank Size

5.0 Gallon

3.78 L

Maximum Current Consumption

12-Amps (PN 00097)

7-Amps (PN 02497)

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 ℃

Minimum Ambient Temperature

-40 °F

-40 ℃

In Rush Current

30.8-Amps @ 0 PSI (PN 000970)

18.4-Amps @ 0 PSI (PN 02497)

Sound Intensity Level

69.8 dB @ 0 PSI (PN 00097)

66.9 dB @ 0 PSI (PN 02497)

Dimensions

5.6″L x 2.2″W x 4.4″H

142.24mm (L)x55.88mm (W) x111.76mm (H)

Net Weight

2.25 lbs

1.021 kg

Features

Check Valve
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.53	7	0	43.5	7
10	1.00	9	1.0	28.0	9
20	0.95	10	2.0	25.5	11
30	0.90	11	3.0	22.7	11
40	0.85	11	4.0	20.7	12
50	0.77	12	5.0	18.3	12
60	0.72	12	6.0	16.3	12
70	0.65	12	7.0	13.7	12
80	0.60	12	8.0	11.7	12
90	0.54	12	9.0	10.0	11
100	0.48	12
110	0.44	12
120	0.39	12
130	0.35	11

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI	CFM	A	BAR	LPM	A
0	1.27	4	0	36.0	4
10	1.09	5	1.0	28.5	5
20	1.03	5	2.0	26.5	5
30	0.96	5	3.0	24.7	6
40	0.90	6	4.0	21.7	6
50	0.83	6	5.0	19.7	7
60	0.76	6	6.0	17.0	7
70	0.70	6	7.0	14.3	7
80	0.63	7	8.0	11.7	7
90	0.56	7	9.0	8.7	6
100	0.51	7
110	0.42	7
120	0.35	7
130	0.31	6

Fill Rates

12-VOLT COMPRESSOR

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	50 seconds (± 05 seconds)
85 to 105 PSI	15 seconds (± 03 seconds)
0 to 120 PSI	1 minute 05 seconds (± 05 seconds)
90 to 120 PSI	21 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 40 seconds (± 10 seconds)
85 to 105 PSI	30 seconds (± 05 seconds)
0 to 120 PSI	2 minute 10 seconds (± 10 seconds)
90 to 120 PSI	45 seconds (± 05 seconds)

24-VOLT COMPRESSOR

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	50 seconds (± 05 seconds)
85 to 105 PSI	15 seconds (± 03 seconds)
0 to 120 PSI	1 minute 03 seconds (± 05 seconds)
90 to 120 PSI	20 seconds (± 03 seconds)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 minute 40 seconds (± 10 seconds)
85 to 105 PSI	30 seconds (± 05 seconds)
0 to 120 PSI	2 minute 05 seconds (± 10 seconds)
90 to 120 PSI	45 seconds (± 05 seconds)
