280C | Viair Dual Performance Value Pack

Name: 280C | Viair Dual Performance Value Pack
Brand: Viair
Rating: 5.0 (41 reviews)

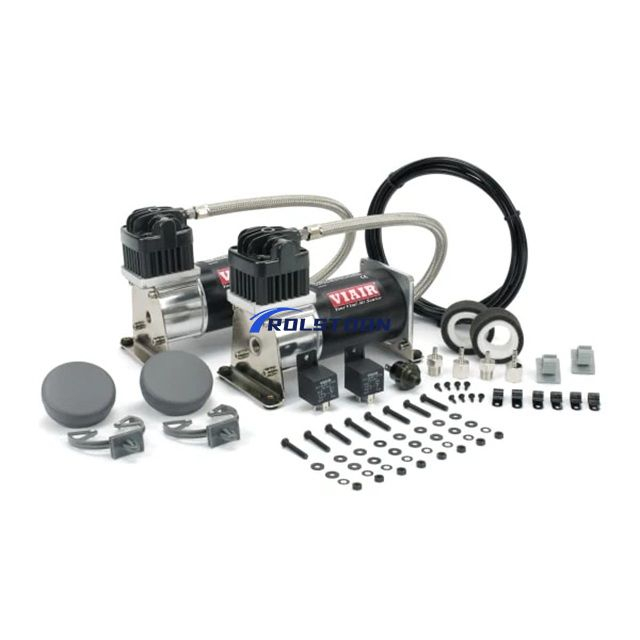

The VIAIR 280C Dual Pack is ideal for lighter air suspension systems, capable of providing a maximum of 150 PSI and a 30% duty cycle. The kit features two 12-volt Silver on Black 280C air compressors, two 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch. Each 280C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Model:
Dual 280C Value Pack
Brand:
Viair
Code:
28002

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

2.96 CFM @ 0 PSI

83.81 LPM @ 0 PSI

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

30% @ 100 PSI

Maximum Working Pressure

150 PSI

10.34 BAR

Maximum Air Tank Size

5.0 Gallon

18.93 L

Combined Maximum Current Consumption

38-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

136-Amps @ 0 PSI

Sound Intensity Level

76 dB @ 0 PSI

Dimensions

7.16″L x 3.95″W x 6.35″H

181.1 mm (L) x 100.33 mm (W) x 161.29 mm (H)

Net Weight

17.5 lbs

7.94 kg

Features

(2) 280C (Black on Silver) Air Compressors
w/Thermal Overload Protectors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	2.96	21	0	84.0	21
10	2.78	24	1.0	75.5	25
20	2.58	26	2.0	69.0	28
30	2.38	28	3.0	62.5	30
40	2.27	29	4.0	56.5	31
50	2.13	31	5.0	51.5	32
60	1.97	31	6.0	47.0	32
70	1.88	32	7.0	43.5	32
80	1.74	32	8.0	39.5	32
90	1.62	32	9.0	36.0	32
100	1.56	32	10.0	33.5	32
110	1.46	32
120	1.37	32
130	1.29	32
140	1.23	32
150	1.16	32

Fill Rates

2.0 GALLON TANK	FILL RATE
0 to 145 PSI	1 minute 34 seconds (± 10 seconds)
110 to 145 PSI	29 seconds (± 05 seconds)
2.5 GALLON TANK	FILL RATE
0 to 145 PSI	1 minute 44 seconds (± 10 seconds)
110 to 145 PSI	31 seconds (± 05 seconds)
5.0 GALLON TANK	FILL RATE
0 to 145 PSI	3 minute 54 seconds (± 15 seconds)
110 to 145 PSI	1 minute 11 seconds (± 10 seconds)

seconds

Download

User_Manual_28002_Manual.pdf

Wiring_Diagram_dualc-wd.pdf

Dimensional_Drawing_28020-28021-dd-R2-060820.pdf
