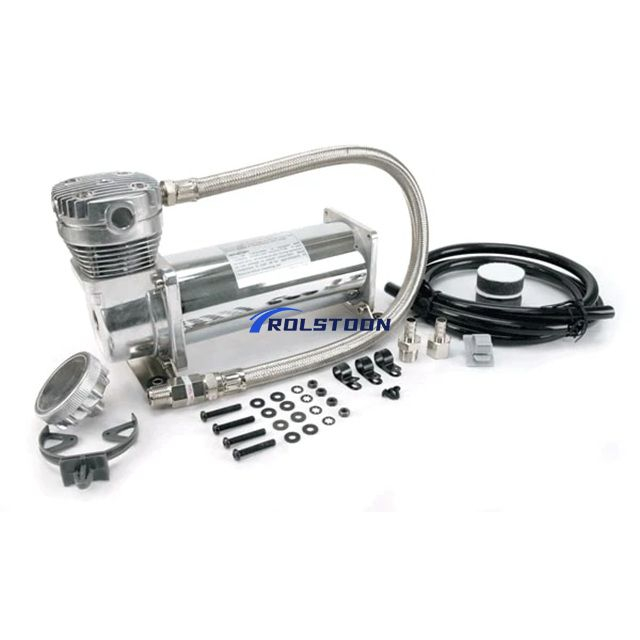

480C | Viair C-Models Air Compressor

Name: 480C | Viair C-Models Air Compressor
Brand: Viair
Rating: 5.0 (78 reviews)

The 480C air compressor is a high-pressure and efficient solution for various industrial and automotive applications. It can run for 30 minutes at 200 PSI before needing rest. It features a 3/8" leader hose with check valve and insulated wiring.

Model:
480C
Brand:
Viair

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 200 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.86 CFM @ 0 PSI (0 BAR)

52.67 LPM @ 0 PSI (0 BAR)

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

100% @ 100 PSI (6.89 BAR)

50% @ 200 PSI (13.79 BAR)

Maximum Working Pressure

200 PSI (1)

13.79 BAR (1)

Maximum Air Tank Size

5.0 Gallon (1)

18.93 L (1)

Maximum Current Consumption

23-Amps

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

92.8-Amps @ 0 PSI (0 BAR)

Sound Intensity Level

67.1 dB @ 0 PSI (0 BAR)

Dimensions

10.87″L x 4.2″W x 6.75″H

276.1 mm (L)x106.68 mm (W) x 171.45 mm (H)

Net Weight

11.05 lbs (1)

3.15 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

Performamce

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	1.86	10
10	1.75	12
20	1.59	14
30	1.52	15
40	1.45	16
50	1.41	17
60	1.33	18
70	1.26	18
80	1.20	19
90	1.13	19
100	1.07	20
110	0.99	21
120	0.93	23
130	0.88	22
140	0.82	22
150	0.75	21
160	0.71	21
170	0.67	21
180	0.61	21
190	0.55	20
200	0.51	19

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	52.7	10
1.0	47.5	13
2.0	43.2	15
3.0	40.7	16
4.0	38.1	18
5.0	35.3	18
6.0	32.6	19
7.0	30.0	20
8.0	27.0	22
9.0	25.0	22
10.0	22.3	21
11.0	20.1	21
12.0	18.3	21
13.0	16.0	20
14.0	14.0	19

Fill Rates

2.5 GALLONS TANK	FILL RATE
0 to 145 PSI	2 minutes 50 seconds (± 10 seconds)
110 to 145 PSI	57 seconds (± 05 seconds)
0 to 200 PSI	5 minutes 02 seconds (± 10 seconds)
165 to 200 PSI	1 minute 30 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 145 PSI	6 minutes 02 seconds (± 10 seconds)
110 to 145 PSI	1 minute 55 seconds (± 05 seconds)
0 to 200 PSI	10 minutes 30 seconds (± 15 seconds)
165 to 200 PSI	3 minutes 10 seconds (± 10 seconds)
