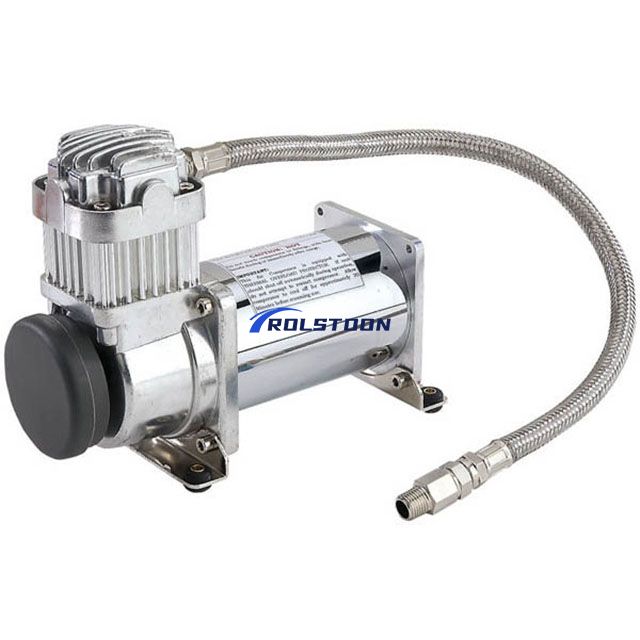

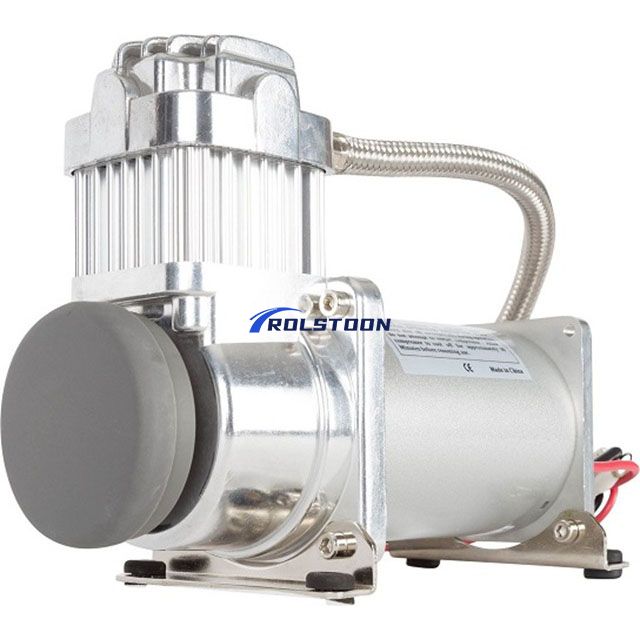

325C | Viair C-Models Air Compressor

Name: 325C | Viair C-Models Air Compressor
Brand: Viair
SKU: 599154007
Rating: 5.0 (31 reviews)

The 325C air compressor is used in a variety of applications from industrial to motorsports. It has a max run time of 20 minutes and comes in 4 different configurations to fit the needs of every customer.

Model:
325C
Brand:
Viair
Code:
32530 / 32538

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 200 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

1.59 CFM @ 0 PSI (PN 32530)

45.02 LPM @ 0 PSI (PN 32530)

1.80 CFM @ 0 PSI (PN 32538)

50.97 LPM @ 0 PSI (PN 32538)

Motor Voltage

12-Volt / 24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

33% @ 100 PSI

Maximum Working Pressure

150 PSI

10.34 BAR

Maximum Air Tank Size

5.0 Gallon

18.93 L

Maximum Current Consumption

22-Amps (PN 32530)

13-Amps (PN 32538)

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

93.6-Amps @ 0 PSI (PN 32530)

54.6-Amps @ 0 PSI (PN 32538)

Sound Intensity Level

74.7 dB @ 0 PSI (PN 32530)

76.7 dB @ 0 PSI (PN 32538)

Dimensions

8″L x 4″W x 6.75″H

203.2 mm (L) x 101.6 mm (W) x 171.45 mm (H)

Net Weight

7.5 lbs

3.4 kg

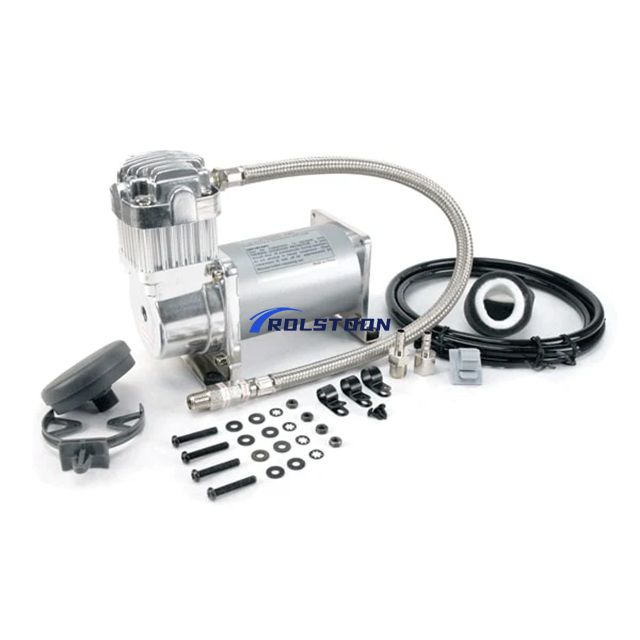

Features

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.59	14	0	45.0	14
10	1.40	16	1.0	37.6	16
20	1.24	16	2.0	34.1	18
30	1.20	18	3.0	32.3	18
40	1.17	18	4.0	29.1	20
50	1.08	19	5.0	26.0	21
60	1.01	20	6.0	23.7	21
70	0.93	21	7.0	21.5	21
80	0.87	21	8.0	19.7	21
90	0.82	21	9.0	18.0	21
100	0.77	21	10.0	16.5	21
110	0.72	21
120	0.68	21
130	0.64	21
140	0.60	21
150	0.57	21

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI	CFM	A	BAR	LPM	A
0	1.80	7	0	51.0	7
10	1.68	8	1.0	44.1	8
20	1.41	9	2.0	38.7	10
30	1.36	10	3.0	36.5	10
40	1.31	10	4.0	34.3	11
50	1.25	10	5.0	32.1	11
60	1.20	11	6.0	30.0	11
70	1.15	11	7.0	28.0	12
80	1.09	11	8.0	26.4	13
90	1.04	11	9.0	24.6	12
100	0.99	12	10.0	22.5	12
110	0.95	13
120	0.92	13
130	0.87	12
140	0.81	12
150	0.78	12

Fill Rates

12-VOLT COMPRESSOR

2.5 GALLON TANK	FILL RATE
0 to 105 PSI	2 minutes 35 seconds (± 10 seconds)
85 to 105 PSI	40 seconds (± 05 seconds)
0 to 145 PSI	4 minutes 15 seconds (± 10seconds)
110 to 145 PSI	1 minute 25 seconds (± 05 seconds)
5.0 GALLON TANK	FILL RATE
0 to 105 PSI	5 minutes 15 seconds (± 10 seconds)
85 to 105 PSI	1 minute 25 seconds (± 05 seconds)
0 to 145 PSI	8 minutes 45 seconds (± 15 seconds)
110 to 145 PSI	2 minutes 55 seconds (± 10 seconds)

24-VOLT COMPRESSOR

2.5 GALLON TANK	FILL RATE
0 to 105 PSI	2 minutes 25 seconds (± 10 seconds)
85 to 105 PSI	35 seconds (± 05 seconds)
0 to 145 PSI	3 minutes 30 seconds (± 10 seconds)
110 to 145 PSI	1 minute 10 seconds (± 05 seconds)
5.0 GALLON TANK	FILL RATE
0 to 105 PSI	4 minutes 45 seconds (± 10 seconds)
85 to 105 PSI	1 minute 05 seconds (± 05 seconds)
0 to 145 PSI	7 minutes 25 seconds (± 15 seconds)
110 to 145 PSI	2 minutes 25 seconds (± 10 seconds)
