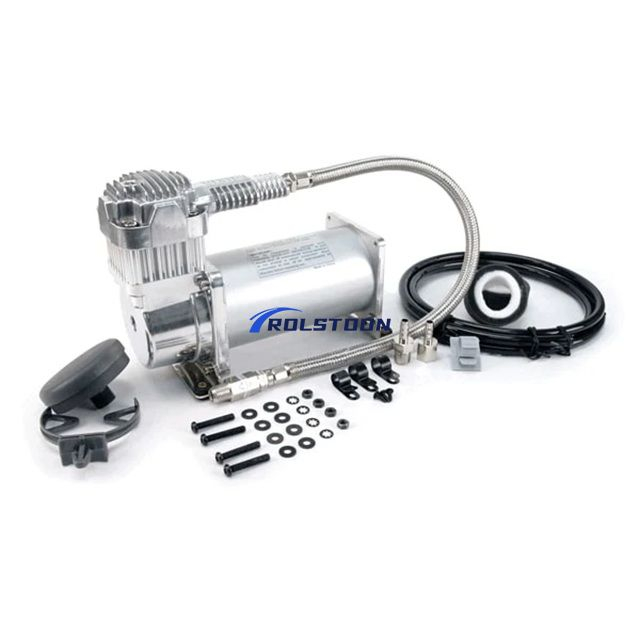

400C | Viair C-Models Air Compressor

Name: 400C | Viair C-Models Air Compressor
Brand: Viair
SKU: 556561996
Rating: 5.0 (11 reviews)

Ideal for industrial environments, VIAIR’s 400C compressor is the fastest-filling in its class. Capable of powering air horns, air suspension, and industrial pneumatic operations, the 400C flows fast and has a compact footprint for a wide range of personal and commercial applications.

Model:
400C
Brand:
Viair

Voltage:	12-Volt 24-Volt
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 24-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

2.62 CFM @ 0 PSI (PN 40040)

74.19 LPM @ 0 PSI (PN 40040)

2.33 CFM @ 0 PSI (PN 40052)

66 LPM @ 0 PSI (PN 40052)

Motor Voltage

12-Volt

24-Volt

Motor Type

Permanent Magnetic

Duty Cycle

33% @ 100 PSI (6.89 BAR)

Maximum Working Pressure

150 PSI (1)

10.34 BAR (1)

Maximum Air Tank Size

5.0 Gallon (1)

18.93 L (1)

Maximum Current Consumption

30-Amps (PN 40040)

15-Amps (PN 40052)

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 ℃ (1)

Minimum Ambient Temperature

-40 °F (1)

-40 ℃ (1)

In Rush Current

84.8-Amps @ 0 PSI (PN 40040)

72.8-Amps @ 0 PSI (PN 40052)

Sound Intensity Level

72.7 dB @ 0 PSI (PN 40040)

72.2 dB @ 0 PSI (PN 40052)

Dimensions

9″L x 4″W x 6.75″H

228.6mm (L)x101.6mm (W) x171.45mm (H)

Net Weight

8.65 lbs (1)

3.92 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	2.62	16
10	2.39	18
20	2.21	20
30	2.11	22
40	2.01	24
50	1.93	25
60	1.84	26
70	1.73	27
80	1.65	27
90	1.52	27
100	1.45	27
110	1.35	27
120	1.26	27
130	1.19	27
140	1.08	27
150	1.01	26

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	74.0	16
1.0	65.0	20
2.0	60.0	23
3.0	56.0	25
4.0	53.0	27
5.0	49.0	28
6.0	46.0	28
7.0	42.0	28
8.0	38.0	28
9.0	35.0	27
10.0	31.0	27

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	2.33	7
10	2.26	8
20	2.20	10
30	2.14	10
40	2.04	11
50	1.94	12
60	1.86	12
70	1.74	12
80	1.70	12
90	1.59	12
100	1.50	12
110	1.40	12
120	1.31	12
130	1.24	12
140	1.17	12
150	1.10	12

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	66.0	7
1.0	63.3	9
2.0	60.8	10
3.0	57.0	11
4.0	53.0	12
5.0	48.3	12
6.0	45.7	12
7.0	40.5	12
8.0	38.2	12
9.0	34.6	12
10.0	32.0	12
11.0	29.0	11
12.0	25.5	11
13.0	23.3	10

Download

User_Manual_32530_32533_32534_32538_35030_35033_40040_45040_Manual_R4-022522.pdf

User_Manual_40052_Manual_R3-061721_e61968d8-7750-4f40-9d2f-6b3f40db2ca9.pdf

Dimensional_Drawing_snout40040_40052-dd-R5-060820_modified.pdf

Option_A_singlec-wd_Version_A.pdf

Option_B_R3-031025_Version_B.pdf

Option_C_R3-031025_Version_C.pdf

Fill Rates

12-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 145 PSI	2 minutes 27 seconds (± 05 seconds)
110 to 145 PSI	55 seconds (± 03 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 105 PSI	2 minutes 55 seconds (± 10 seconds)
85 to 105 PSI	45 seconds (± 05 seconds)
0 to 145 PSI	4 minutes 50 seconds (± 10 seconds)
110 to 145 PSI	1 minute 40 seconds (± 05 seconds)

24-VOLT COMPRESSOR

2.5 GALLONS TANK	FILL RATE
0 to 105 PSI	1 minute 24 seconds (± 05 seconds)
85 to 105 PSI	20 seconds (± 03 seconds)
0 to 145 PSI	2 minutes 16 seconds (± 05 seconds)
110 to 145 PSI	47 seconds (± 05 seconds)
5.0 GALLONS TANK	FILL RATE
0 to 105 PSI	2 minutes 38 seconds (± 10 seconds)
85 to 105 PSI	38 seconds (± 03 seconds)
0 to 145 PSI	4 minutes 08 seconds (± 10 seconds)
110 to 145 PSI	1 minute 20 seconds (± 05 seconds)
