400C | Dual Performance Value Pack

Name: 400C | Dual Performance Value Pack
Brand: Viair
SKU: 520541996
Rating: 5.0 (30 reviews)

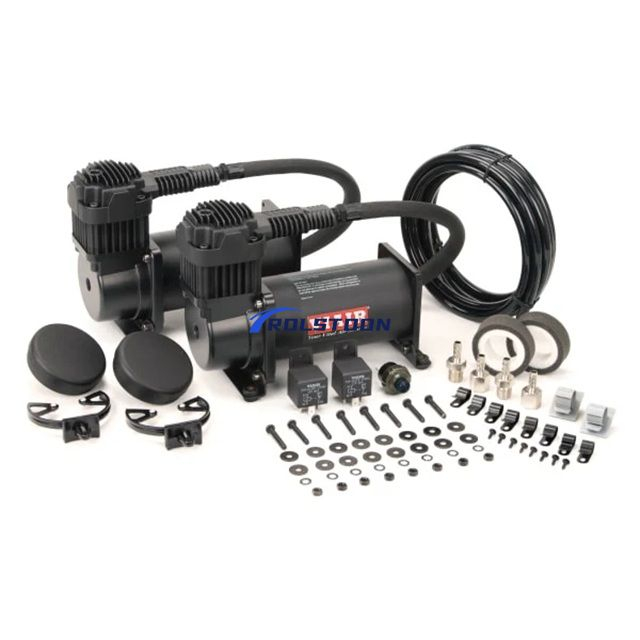

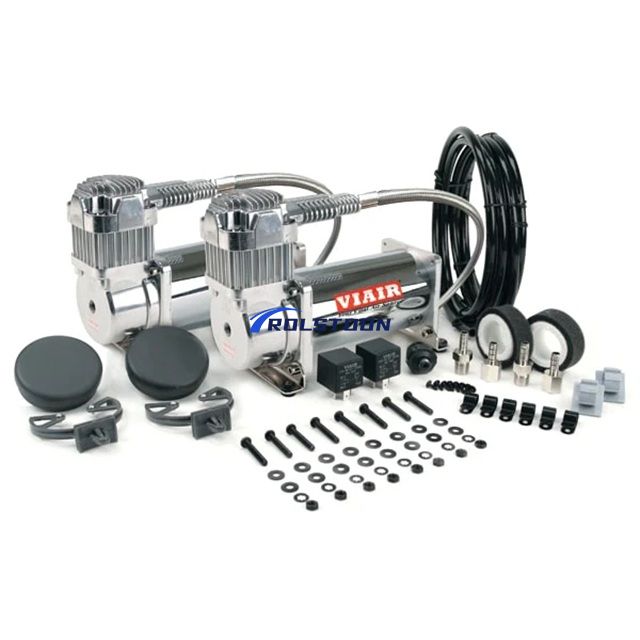

The VIAIR 400C Dual Performance Value Pack is our fastest filling, highest CFM air compressor system, This kit is perfect for industrial use, air horns, off-road applications, and a great addition to any air suspension kit. The 400C Dual Performance Value Pack includes two 12-volt Chrome or Stealth Black VIAIR 400C air compressors, two heavy duty 40-amp relays and an 110 PSI cut-on, 145 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware.

Model:
Dual 400C Value Pack
Brand:
Viair

Color:	Stealth Black Chrome
SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

4.55 CFM @ 0 PSI (0 BAR)

128.83 LPM @ 0 PSI (0 BAR)

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

33% @ 100 PSI (6.89 BAR)

Maximum Working Pressure

150 PSI (1)

10.34 BAR (1)

Maximum Air Tank Size

10.0 Gallon (1)

37.85 L (1)

Combined Maximum Current Consumption

60-Amps

Ingress Protection Rating

IP67

Maximum Ambient Temperature

+158 °F (1)

+70 °C (1)

Minimum Ambient Temperature

-40 °F (1)

-40 °C (1)

In Rush Current

85-Amps @ 0 PSI (0 BAR)

Sound Intensity Level

73 dB @ 0 PSI (0 BAR)

Dimensions (1)

10.87″L x 4.2″W x 7.06″H

228.6 mm (L) x 100 mm (W) x 171.5 mm (H)

Net Weight

17.3 lbs (1)

7.85 kg (1)

Remarks

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Features

(2) 400C Chrome Air Compressors w/Thermal Overload Protectors.

(2) Air Filter Assemblies.

(2) Remote Mount Brackets.

(2) Sets of Remote Mount Fittings.

(2) Sets of Spare Air Filter Elements.

(2) Leader Hose Clips.

(6) Air Line Clips with Included Hardware.

(8) Sets of Nuts, Bolts, Washers and Lock Washers.

(2) 40-Amp Relays.

(1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off).

(2) Stainless Steel Braided Leader Hoses with Inline Check Valve.

Air Line (For Remote Mount Filter Installation).

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI (Pound per Square Inch)	CFM (Cubic Feet per Minute)	A (Amperes)
0	4.55	39
10	4.18	40
20	3.96	42
30	3.74	45
40	3.50	46
50	3.25	48
60	3.00	50
70	2.83	52
80	2.60	55
90	2.46	59
100	2.28	57
110	2.12	55
120	1.97	53
130	1.80	52
140	1.60	51
150	1.48	49

BAR (1)	LPM (Liters Per Minute)	A (Amperes)
0	129.0	39
1.0	115.6	41
2.0	106.5	45
3.0	96.6	47
4.0	86.4	50
5.0	78.4	53
6.0	70.8	58
7.0	64.0	57
8.0	57.5	54
9.0	50.6	52
10.0	43.7	50

Fill Rates

2.0 GALLONS TANK	FILL RATE
0 to 145 PSI	1 minute 00 second (± 05 seconds)
110 to 145 PSI	20 seconds (± 03 seconds)
2.5 GALLONS TANK	FILL RATE
0 to 145 PSI	1 minute 15 seconds (± 05 seconds)
110 to 145 PSI	25 seconds (± 03 seconds)
5.0 GALLON TANK	FILL RATE
0 to 145 PSI	2 minute 30 seconds (± 10 seconds)
110 to 145 PSI	52 seconds (± 05 seconds)

Download

User_Manual_40013_40048_45012_45013_Manual_R3-110521.pdf

Wiring_Diagram_dualc-wd.pdf

Dimensional_Drawing_snout40040-dd-R5-060820.pdf
