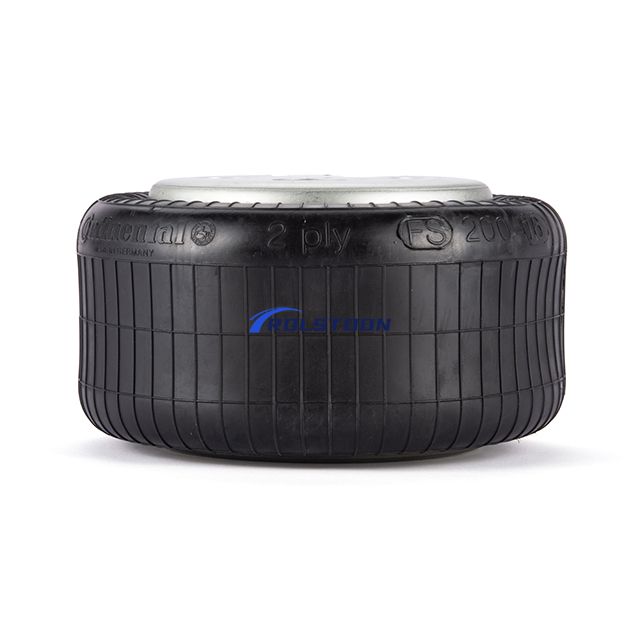

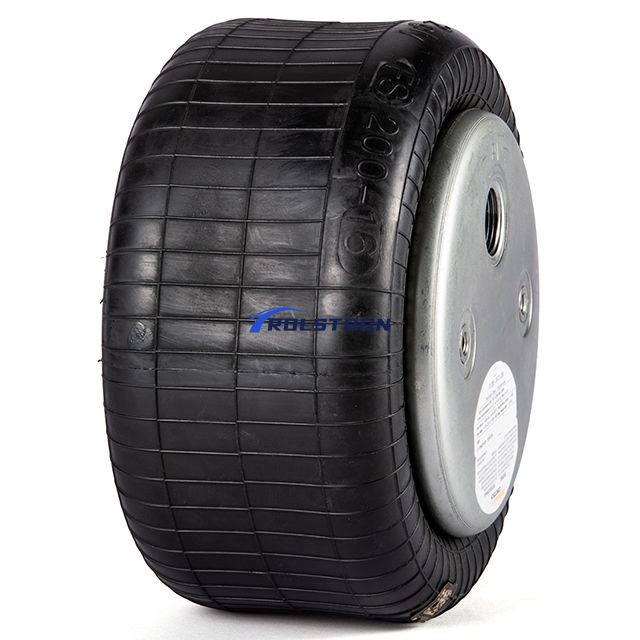

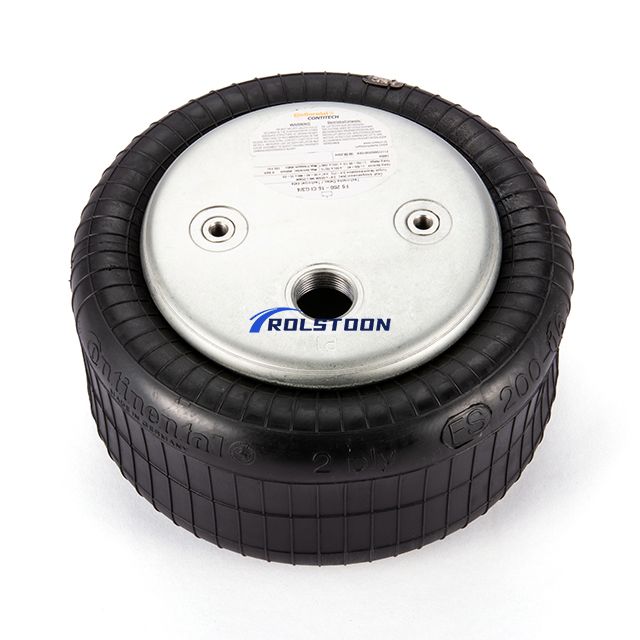

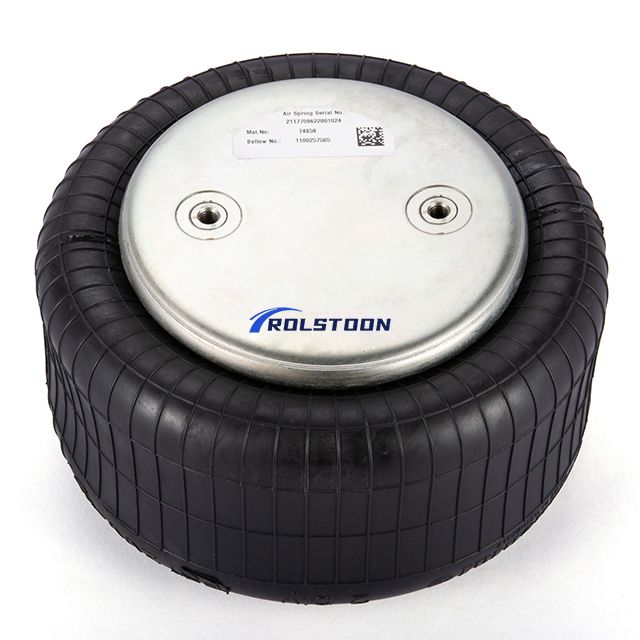

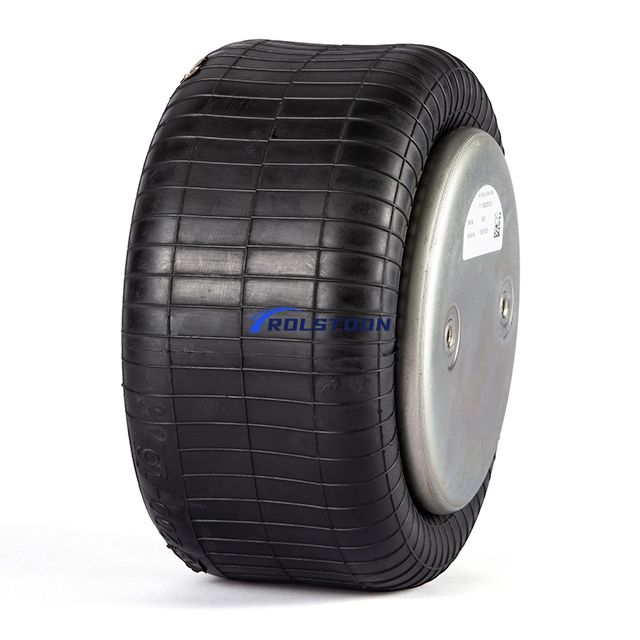

Continental ContiTech Single Convolution Air Actuator FS 200-16 CI G3/4

  • FS 200-16 CI G3/4

  • ContiTech

SKU:
Availability:
Quantity:
Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Air Actuator Model series C Air Actuator
Details
Brand
Continental
ContiTech
Assembly No.
FS 200-16 CI G3/4
FS 200 16 CI G3/4
FS200-16CIG3/4
FS20016CIG3/4
Article status
Normal
Assembly order No.
74859
Bellow number
FS 200-16
FS 200 16
FS200-16
FS20016
HS code
8708809000
Material of bellow
Natural rubber
Temperature range
(-60 °C) -40 to +50 °C (+70 °C)
(-76 °F) -40 to +122 °F (+158 °F)
The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.
Working pressure range
0 to 8 bar
0 to 120 psi
Material of top plate
Steel
Material of bottom plate
Steel
Air inlet
G3/4
Medium
Compressed air or other gases
Permissible angle of tilt
max. 10 to 20 °
Country of origin
Germany
Applications
Industrial equipment
Weight
2.40 kg
Cross References
Goodyear
1B9-215
1B9 215
1B9215
Goodyear Flex No.
578-91-3-201
578 91 3 201
578913201
Enidine
YI-1B9-215
YI 1B9 215
YI1B9215
Original Parts
-
-
Torques
G3/4
max. 50 Nm
M8
max. 25 Nm
