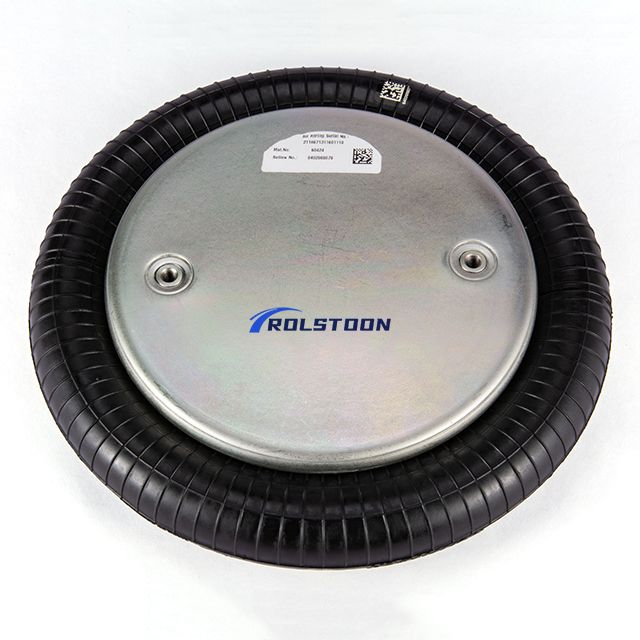

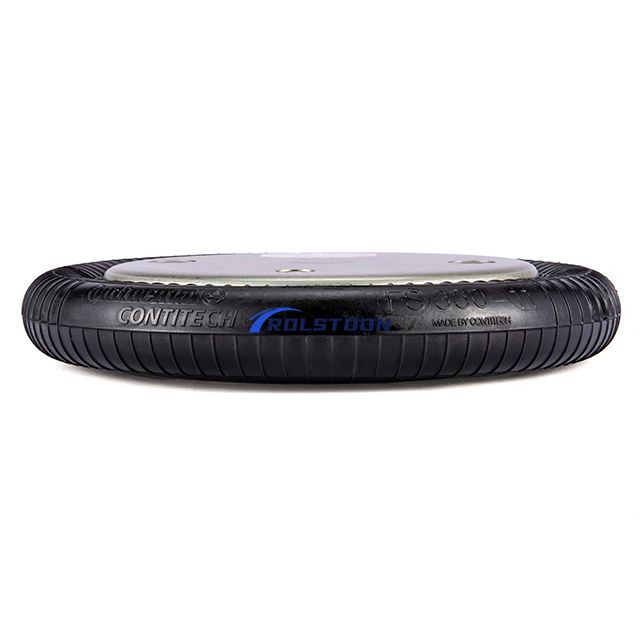

FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator

loading

FS 330-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Continental ContiTech Single Convolution Air Actuator FS 330-11 CI G1/4

  • FS 330-11 CI G1/4

  • ContiTech

SKU:
Availability:
Quantity:
Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Air Actuator Model series C Air Actuator
Details
Brand
Continental
ContiTech
Assembly No.
FS 330-11 CI G1/4
FS 330 11 CI G1/4
FS330-11CI G1/4
FS330-11CIG1/4
FS33011CIG1/4
Article status
Normal
Assembly order No.
60424
Bellow number
FS 330-11
FS330-11
FS 330 11
FS33011
HS code
8708809000
Material of bellow
Natural rubber
Temperature range
(-60 °C) -40 to +50 °C (+70 °C)
(-76 °F) -40 to +122 °F (+158 °F)
The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.
Working pressure range
0 to 8 bar
0 to 120 psi
Material of top plate
Steel
Material of bottom plate
Steel
Air inlet
G1/4
Medium
Compressed air or other gases
Permissible angle of tilt
max. 10 to 20 °
Applications
Industrial equipment
Weight
3.95 kg
8.71 lb
Cross References
Dunlop FR
S12101
Dunlop FR Bellows
12" x 1
12"x1
12 x 1
12x1
Enidine
YM-FS 330-11-0170
YM-FS330-11-0170
YM FS 330 11 0170
YM FS 330-11 0170
YMFS330-110170
YMFS330110170
Festo
EB-325-95
EB 325 95
EB32595
Festo Part No.
193 788
193788
Firestone No.
W01-M58-6008
W01.M58.6008
W01 M58 6008
W01M586008
Firestone Bellows No.
19
Firestone New Bellows No.
19B
Weforma
WBE-500-E2
WBE 500-E2
WBE500-E2
WBE 500 E2
WBE500E2
Weforma Order No.
B1500-E2
B1500 E2
B1500E2
Springride
S12101
Springride Flex
12" x 1
12"x1
12 x 1
12x1
Original Parts
-
-

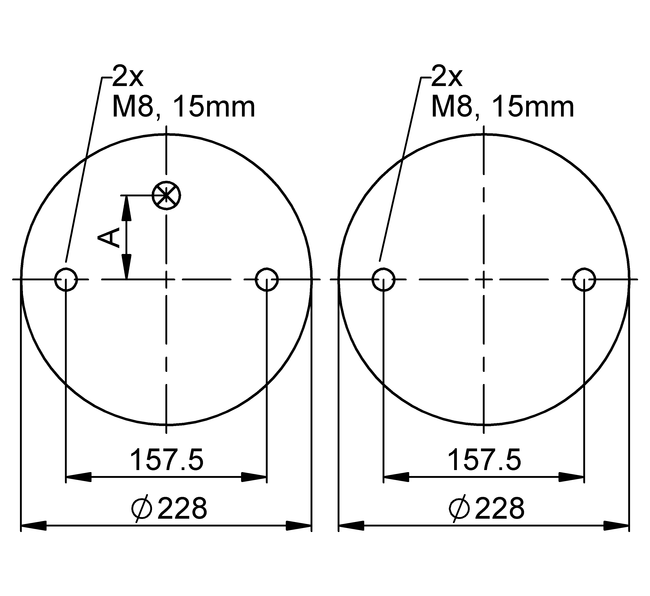

Torques
G1/4
25 Nm
M8
25 Nm
Download
download FS_330-11_CI_GB.pdf

download FS_330-11_CI_CN.pdf

download FS_330-11_CI_DE.pdf

download FS_330-11_CI_FR.pdf

download FS_330-11_CI_ES.pdf

GET A QUOTE NOW！
Please enter your detailed information,
and we will contact you later to provide a free quotation

RELATED PRODUCTS

FS 70-7 CI G1/4
FS 70-7 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 22-3 DI G1/4 CR
FS 22-3 DI G1/4 CR | Continental ContiTech Single Convolution Air Actuator
FS 44-5 DI G3/8 CR
FS 44-5 DI G3/8 CR | Continental ContiTech Single Convolution Air Actuator
FS 50-5 CI G1/4
FS 50-5 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 200-16 CI G3/4 | Continental ContiTech Single Convolution Air Actuator
FS 200-16 CI G3/4 | Continental ContiTech Single Convolution Air Actuator
FS 200-10 CI G1/4
FS 200-10 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 100-10 CI G1/4 | Continental ContiTech Single Convoluted Air Spring
FS 100-10 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 120-9 CI G1/4
FS 120-9 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 40-6 CI G1/8
FS 40-6 CI G1/8 | Continental ContiTech Single Convolution Air Actuator
FS 120-10 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 120-10 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 120-12 CI G3/4 | Continental ContiTech Single Convolution Air Actuator
FS 120-12 CI G3/4 | Continental ContiTech Single Convolution Air Actuator
FS 330-11 CI 1/4 NPT
FS 330-11 CI 1/4 NPT | Continental ContiTech Single Convolution Air Actuator
FS 330-14 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 330-14 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 530-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 530-11 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 530-14 CI G1/4 | Continental ContiTech Single Convolution Air Actuator
FS 530-14 CI G1/4 | Continental ContiTech Single Convolution Air Actuator

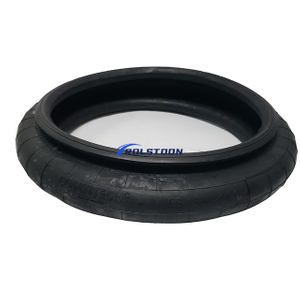

FS 1330-11 CI | Continental ContiTech Single Convolution Air Actuator
