FS 960-12 CI | Continental ContiTech Single Convolution Air Actuator

FS 960-12 CI | Continental ContiTech Single Convolution Air Actuator

Name: FS 960-12 CI | Continental ContiTech Single Convolution Air Actuator
Brand: ContiTech
SKU: 559464396
Rating: 5.0 (73 reviews)

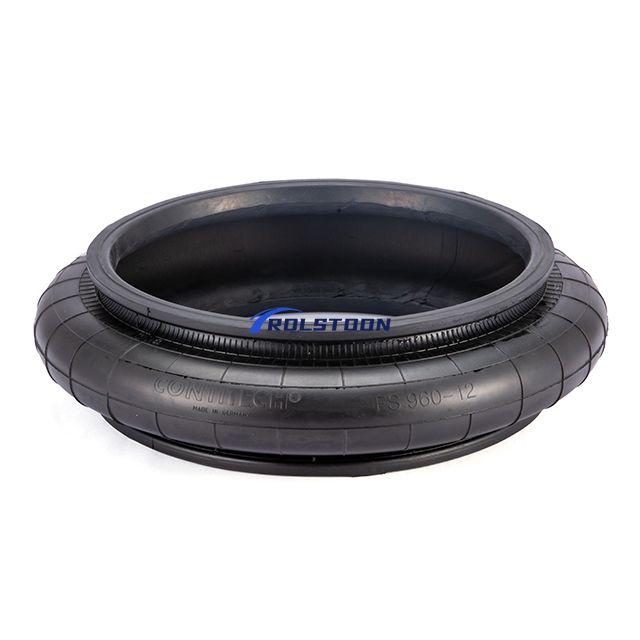

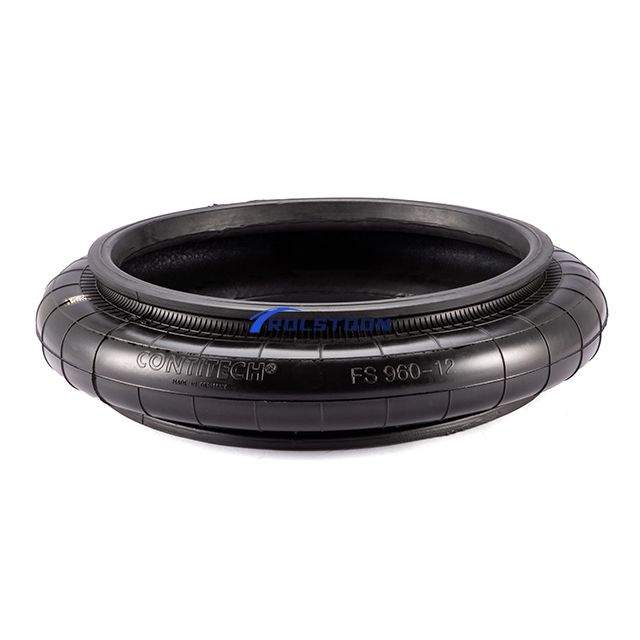

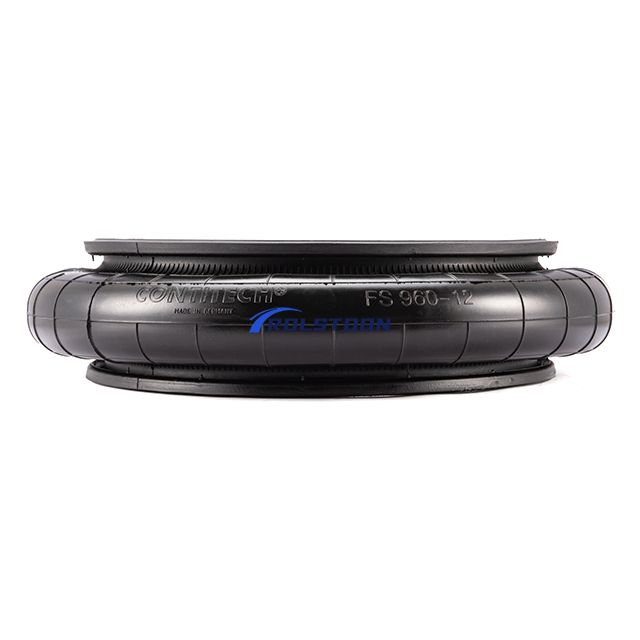

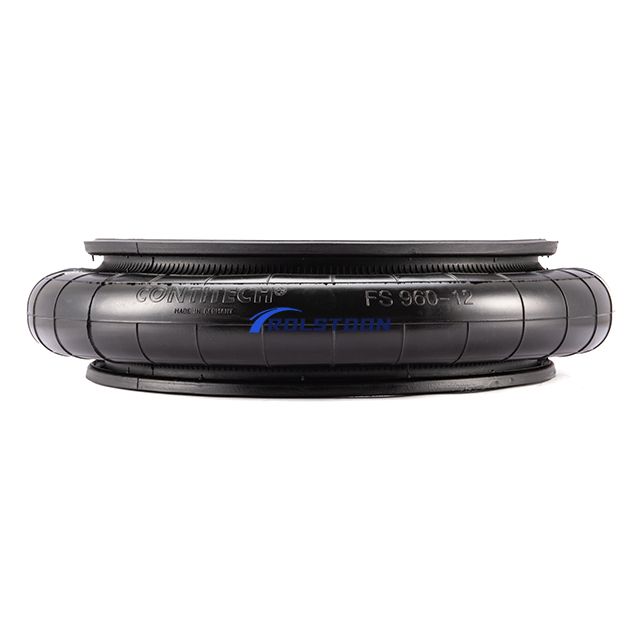

Continental ContiTech Single Convolution Air Actuator FS 960-12 VP / FS 960-12 CI G3/4

Model:
FS 960-12 CI
Brand:
ContiTech

Purchase order data:	rubber bellows only with crimped plates, G3/4 air inlet, A = 114.3 mm excentrical
SKU:
Availability:

Quantity:



Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Air Actuator Model series C Air Actuator

Details

Brand

Continental

ContiTech

Bellow number

FS 960-12

FS 960 12

FS960-12

FS96012

HS code

8708809000

Material of bellow

Natural rubber

Temperature range

(-60 °C) -40 to +50 °C (+70 °C)

(-76 °F) -40 to +122 °F (+158 °F)

The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.

Working pressure range

0 to 8 bar

0 to 120 psi

Medium

Compressed air or other gases

Permissible angle of tilt

max. 10 to 20 °

Applications

Industrial equipment

Minimum pressure

0 bar

Return force to min height

≤ 50 N

Overall weight

12.5 kg

27.56 lb

Vibration isolation – dynamic characteristic values

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (load) F [kN]	28.6	38.3	47.8	57.5	67.2	76.6	14
Spring rate c [N/mm]	581	740.5	891.5	1035	1186	1329.5
Natural Frequency f₀ [Hz]	2.3	2.2	2.2	2.1	2.1	2.1

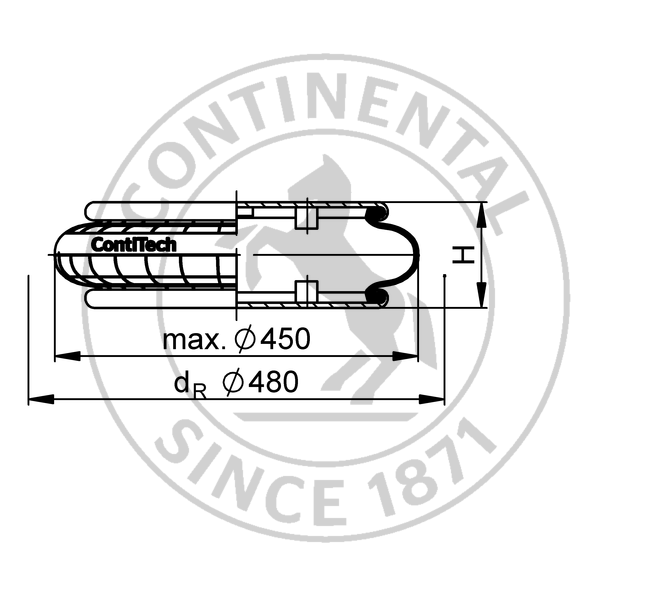

Design height H: recommended 130mm, minimum 115mm

Measuring procedure: Room temperature / Force-height-data quasistatic / Dynamic data at 1 Hz

Pneumatic application – static characteristic values

Force F [kN]
Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
H = 160 [mm]	19.6	26.9	34.5	42.3	50.4	58.6	16
H = 140 [mm]	25.7	34.8	44	53.4	63	72.7	15
H = 120 [mm]	30	40.3	50.8	61.3	72.1	82.9	13
H = 100 [mm]	33	44.3	55.6	67.1	78.7	90.3	11
H = 80 [mm]	35	46.9	58.8	70.9	83.1	95.3	8.4
