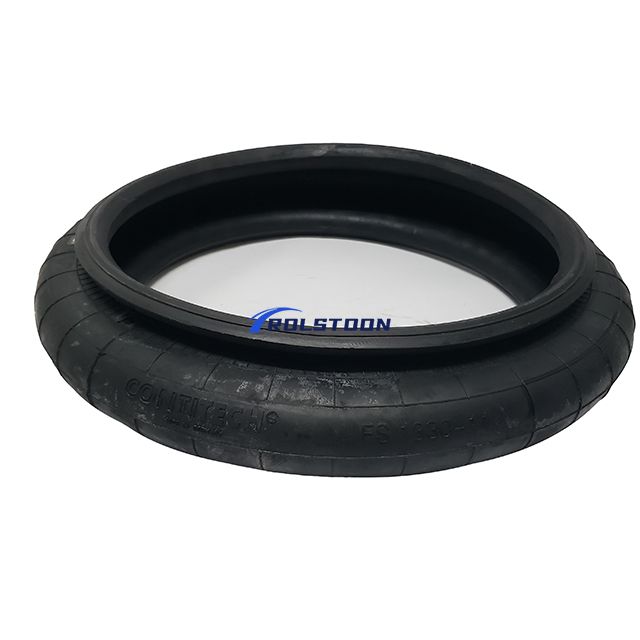

FS 1330-11 CI | Continental ContiTech Single Convolution Air Actuator

FS 1330-11 CI | Continental ContiTech Single Convolution Air Actuator

Name: FS 1330-11 CI | Continental ContiTech Single Convolution Air Actuator
Brand: ContiTech
SKU: 576681396
Rating: 5.0 (20 reviews)

Continental ContiTech Single Convolution Air Actuator FS 1330-11 VP / FS 1330-11 CI G3/4

Model:
FS 1330-11 CI
Brand:
ContiTech

Purchase order data:	rubber bellows only with crimped plates, G3/4 air inlet, A = 152.5 mm excentrical
SKU:
Availability:

Quantity:



Inquire Add to Basket

Continental Air Spring ContiTech Air Spring Air Actuator Model series C Air Actuator

Details

Brand

Continental

ContiTech

Bellow number

FS 1330-11

FS 1330 11

FS1330-11

FS133011

HS code

8708809000

Material of bellow

Natural rubber

Temperature range

(-60 °C) -40 to +50 °C (+70 °C)

(-76 °F) -40 to +122 °F (+158 °F)

The numbers in brackets indicate the minimum and maximum permissible application temperatures for the elastomer, whereby a shorter service life must be expected when operated under these conditions.

Working pressure range

0 to 8 bar

0 to 120 psi

Medium

Compressed air or other gases

Permissible angle of tilt

max. 10 to 20 °

Applications

Industrial equipment

Minimum pressure

0 bar

Return force to min height

≤ 90 N

Overall weight

17.0 kg

37.48 lb

Vibration isolation – dynamic characteristic values

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (load) F [kN]	41.7	55.7	69.8	83.9	97.8	110.9	20
Spring rate c [N/mm]	820	1043	1258	1473.5	1663.5	1847
Natural Frequency f₀ [Hz]	2.2	2.2	2.1	2.1	2.1	2.1

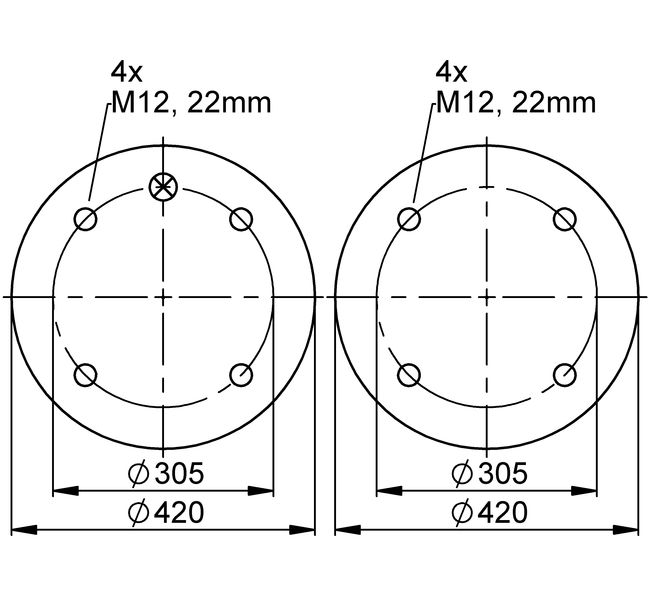

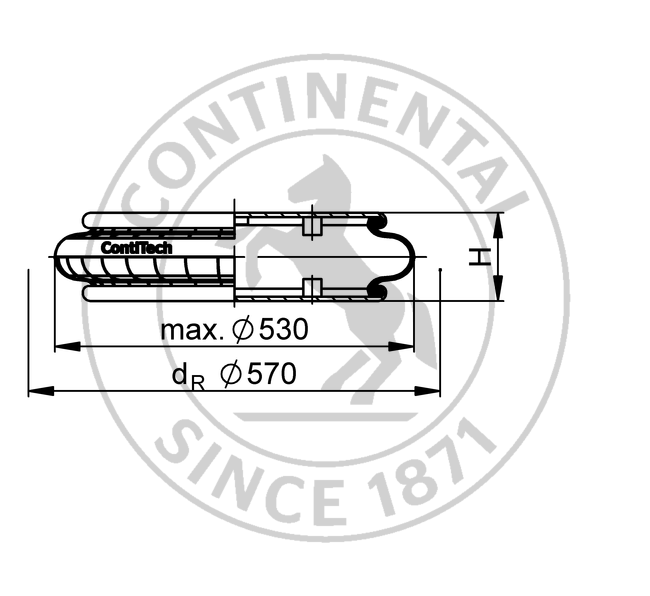

Design height H: recommended 131mm, minimum 111mm

Measuring procedure: Room temperature / Force-height-data quasistatic / Dynamic data at 1 Hz

Pneumatic application – static characteristic values

Force F [kN]
Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
H = 140 [mm]	38.8	52.3	65.7	79.6	93.5	108	21
H = 120 [mm]	44.8	59.9	75.1	90.6	106	122	18
H = 100 [mm]	49	65.4	81.8	98.5	115	132	15
H = 80 [mm]	51.8	69.1	86.4	104	121	138	11
