400H | Viair H-Models Air Compressor

Name: 400H | Viair H-Models Air Compressor
Brand: Viair
Rating: 5.0 (19 reviews)

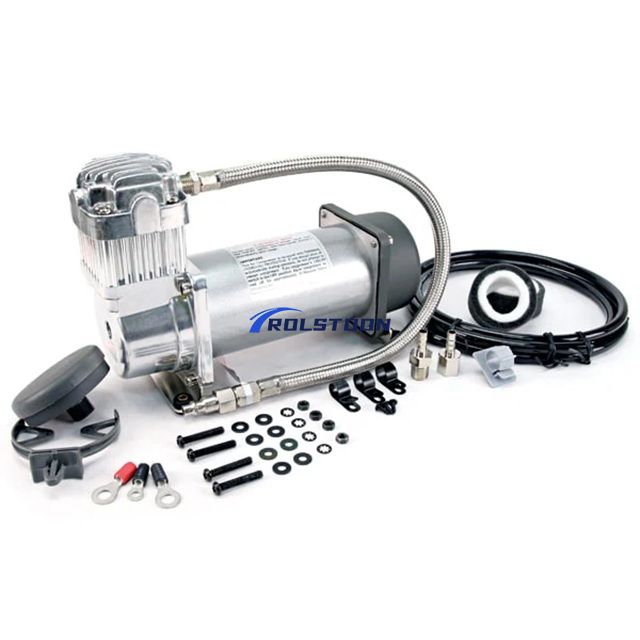

The 400H Hard-Mount comes with a built-in, moisture resistant ON/OFF power switch. It features a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

Model:
400H
Brand:
Viair
Code:
40042

SKU:
Availability:

Quantity:



Inquire Add to Basket

12-Volt Air Compressor 150 PSI Air Compressor Air Pump

Specifications

Air Flow Rate

2.3 @ 0 PSI

65.13 LPM @ 0 PSI

Motor Voltage

12-Volt

Motor Type

Permanent Magnetic

Duty Cycle

33% @ 100 PSI

Maximum Working Pressure

150 PSI

10.34 BAR

Maximum Current Consumption

30-Amps

Ingress Protection Rating

IP54

Maximum Ambient Temperature

+158 °F

+70 °C

Minimum Ambient Temperature

-40 °F

-40 °C

In Rush Current

110-Amps @ 0 PSI

Sound Intensity Level

69 dB @ 0 PSI

Dimensions

10.08″L x 3.94″W x 6.75″H

256.03mm (L) x73.662mm (W) x171.45mm (H)

Net Weight

8.95 lbs

4.06 kg

Features

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
1/4″ Quick Connect Stud
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	2.30	17	0	65.1	17
10	2.13	19	1.0	58.4	20
20	1.98	21	2.0	53.0	23
30	1.86	23	3.0	48.5	24
40	1.75	24	4.0	44.2	26
50	1.64	25	5.0	40.2	27
60	1.54	26	6.0	37.0	28
70	1.44	27	7.0	33.3	29
80	1.37	27	8.0	30.1	28
90	1.28	28	9.0	27.0	28
100	1.19	29	10.0	22.1	27
110	1.11	29
120	1.04	28
130	0.95	28
140	0.85	27
150	0.71	27

Fill Rates

31” X 10.5”	FILL RATE
0 to 30 PSI	3 minute 00 seconds (± 10 seconds)
15 to 30 PSI	1 minute 35 seconds (± 05 seconds)
33″ X 12.5″	FILL RATE
0 to 30 PSI	4 minute 20 seconds (± 10 seconds)
15 to 30 PSI	2 minute 05 seconds (± 05 seconds)
35″ X 12.5″	FILL RATE
0 to 30 PSI	5 minute 20 seconds (± 15 seconds)
15 to 30 PSI	2 minute 45 seconds (± 10 seconds)

seconds

Download

User_Manual_40042-45042_Manual-1.pdf

Wiring_Diagram_SingleH-wd-R1-121420.pdf.pdf

Dimensional_Drawing_40042-dd-R2-060820.pdf
