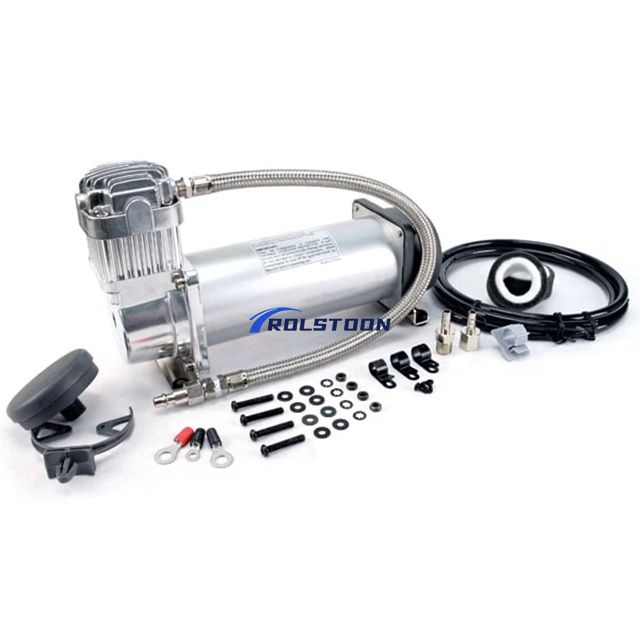

450H
Viair
45042
| SKU: | |
|---|---|
| Availability: | |
| Quantity: | |
Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
1/4″ Quick Connect Stud
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instruction
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Unless otherwise specified, the gallons mentioned on the webpage are all US gallons.
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 15 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 22 | 9.0 | 23.0 | 22 |
| 100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 | 20 |
| 33″ X 12.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 5 minute 30 seconds (± 10 seconds) |
| 15 to 30 PSI | 2 minute 50 seconds (± 05 seconds) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 6 minute 55 seconds (± 15 seconds) |
| 15 to 30 PSI | 3 minute 30 seconds (± 10 seconds) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 7 minute 56 seconds (± 15 seconds) |
| 15 to 30 PSI | 4 minute 09 seconds (± 10 seconds) |
